Schneider Electric Magelis HMIDT732 | 15" Smart Display

Schneider Electric Magelis HMIDT732 | 15″ Smart Display

Original price was: $10,000.00.Current price is: $1,085.00.

Product NO：HMIDT732

Brand：Schneider

Delivery time:  In stock

Product status:   Brandnew

Product situation: one year warranty, Origin of Manufacture

Add to quote
Category: Tags:
Felix Sales Manager
[email protected] +86 138 2210 1417 8613822101417
WhatsApp
QR
Chat Now
There are still many products that have not been released yet. If you have any products that you cannot find, you can ask me for a quote! Reminder: The product images published on this website are not actual real products and are for reference only!

Description

The Schneider Electric Magelis HMIDT732 is a high-performance 15-inch touchscreen display designed as a core interface for the Magelis GTU (Global Terminal Unit) system. Combining robust industrial aesthetics with advanced visualization capabilities, this Smart Display delivers high-resolution graphics and responsive touch interaction for complex HMI (Human-Machine Interface) applications. It is engineered to perform in demanding environments, offering excellent chemical resistance, high brightness, and multi-touch functionality, making it the ideal choice for centralized control rooms, manufacturing monitoring, and advanced industrial automation visualization.

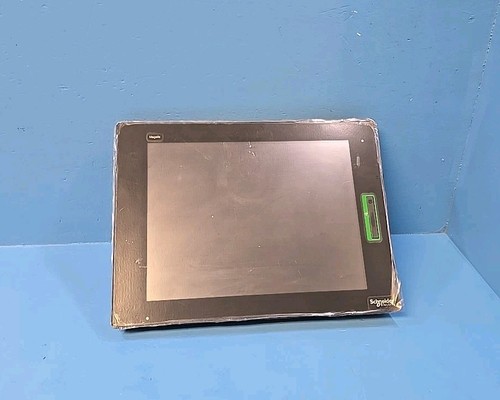

Schneider Electric Magelis HMIDT732 15"Touch Smart Display XGA /w HMIG3U Image 1 of 2

📋 Technical Specifications

  • Display Size: 15-inch diagonal widescreen (XGA/WXGA resolution).
  • Display Type: TFT Color LCD with high-contrast LED backlighting.
  • Touch Technology: Projected Capacitive (P-Cap) multi-touch screen for intuitive operator control.
  • Resolution: 1024 x 768 pixels, providing clear detail for complex process graphics.
  • Brightness: Adjustable brightness levels for optimal visibility in various lighting conditions.
  • Environmental Rating: IP66, IP67, and Type 4X/13 front-panel protection against dust and moisture.
  • Mounting: Panel-mount design with a modular structure for easy installation or replacement.
  • Interface: Connects to Magelis GTU “Box” modules (CPU) for a modular system architecture.
  • Operating Temperature: Designed for operation between 0°C and 60°C in standard industrial settings.
  • Surface Coating: Chemically strengthened glass with anti-glare treatment for durability and clarity.



🚀 Recommended Components & Associated Series

To build or expand a Magelis GTU system utilizing the HMIDT732 display, the following modules and accessories are typically required:

  1. HMIG3U: Magelis GTU Premium Box (Core CPU unit) for high-performance processing.
  2. HMIG5U: Magelis GTU Open Box (Open platform unit) for PC-based software integration.
  3. HMIG5U2: Advanced CPU module with increased memory and processing power.
  4. Magelis GTU Wireless LAN Adapter: Add-on module for remote connectivity and data sharing.
  5. HMIYMINACC1: Front USB access port for convenient data logging and maintenance.
  6. Vijeo Designer Software: The essential platform for creating and managing HMI applications.
  7. Magelis GTU Expansion Module: For adding additional communication ports (Serial/USB/Ethernet).
  8. HMIZSD1GB: 1GB SD Card for project storage and data logging backups.
  9. HMIZGBAT: Replacement battery module for real-time clock and memory retention.
  10. Schneider Electric Harmony Range: Complementary push-buttons and pilot lights for a unified control panel design.
