Description
Product Core Brief
| Attribute | Detailed Information |
| Model | Modicon AS-BADU-204 |
| Brand | Schneider Electric (Modicon) |
| Series | Modicon 200 Series / Micro Series |
| Core Function | 4-Channel Analog Input Signal Processing |
| Product Type | Analog Input Module |
| Key Specs | 4 Channels / Configurable Range (0-10V, 4-20mA) / 12-bit Resolution |
Key Technical Specifications
- Number of Inputs: 4 Single-ended channels
- Input Ranges:
- Voltage: 0 to 10 V, 1 to 5 V
- Current: 0 to 20 mA, 4 to 20 mA
- Resolution: 12-bit binary (0 to 4,095 counts)
- Update Time: Approx. 25 ms for all 4 channels
- Input Impedance:
- Voltage: > 1 MΩ
- Current: 250 Ω
- Accuracy: ±0.1% of full scale at 25°C
- Isolation: 500 V DC between field side and bus logic
- Power Requirements: Supplied via the 200 Series backplane/base

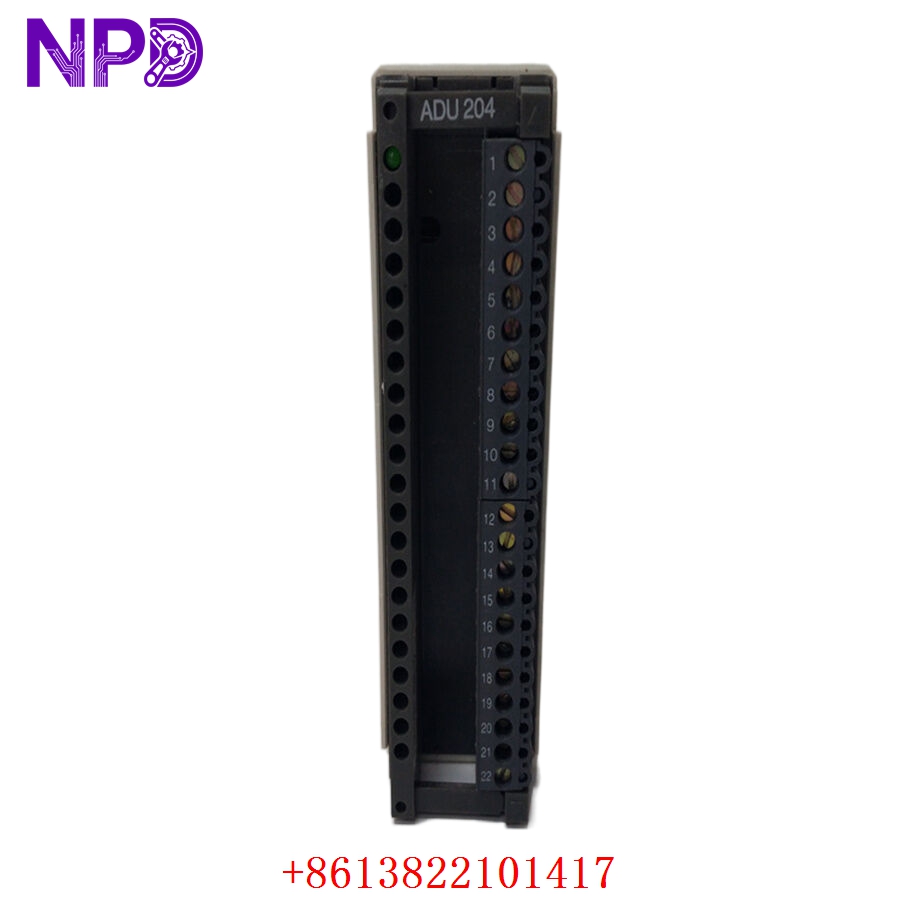

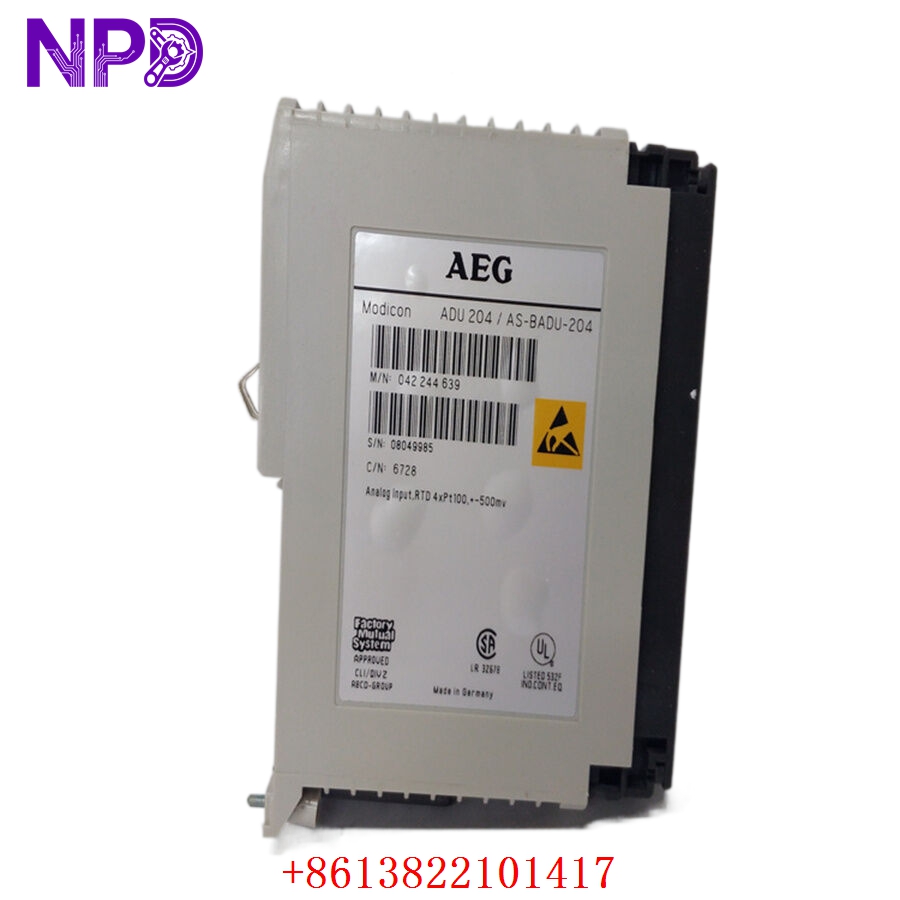

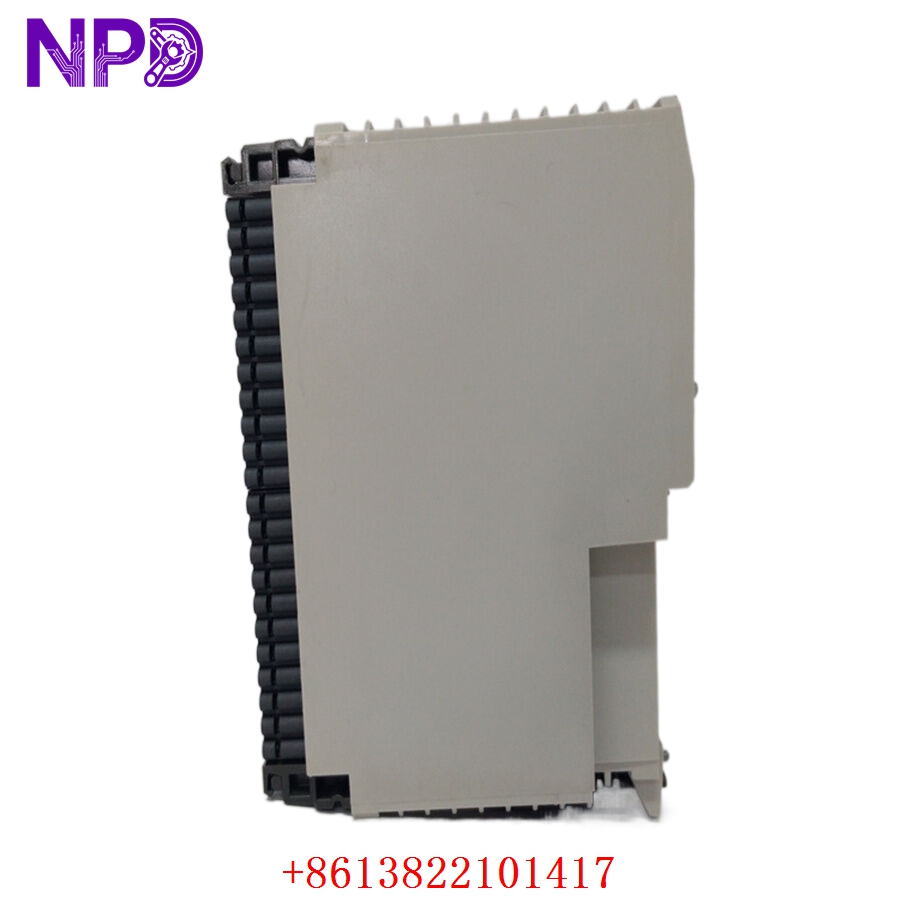

MODICON AS-BADU-204
MODICON AS-BADU-204
MODICON AS-BADU-204
MODICON AS-BADU-204
Application Scenarios & Pain Points
The AS-BADU-204 is a staple of the legacy Modicon 200 Series architecture. Its job is to take real-world variables—like the temperature of a furnace or the pressure in a pipe—and translate them into digital values the PLC can understand.
The Engineering Challenge:
The 200 Series is a mature platform. Most engineers encounter the AS-BADU-204 in facilities that have been running for 20+ years. The biggest pain point is drift and signal noise. Over time, the internal reference components can age, leading to inaccurate readings that mess up your PID loops. Finding a clean, tested replacement is often much cheaper and faster than trying to recalibrate an entire aging system or migrate to M241/M251 hardware.
Typical Application Scenarios:
- Water & Wastewater – Level Monitoring
Reading 4-20mA signals from ultrasonic level sensors in lift stations.
- HVAC Control – Temperature Sensing
Monitoring 0-10V humidity and temperature transmitters in large industrial air handling units.
- Food & Beverage – Pressure Control
Gathering data from pressure transducers on bottling lines to maintain consistent fill rates.
- Legacy Machine Tuning
Providing feedback for simple speed control loops in older conveyor systems.
Case Study: The “Drifting” Pressure Sensor in a Textile Mill
Background: A textile plant used a Modicon 200 Series PLC to manage steam pressure for fabric drying.
Problem: The drying process became inconsistent. The operator noted that the HMI showed 45 PSI, but a manual gauge showed 52 PSI. The AS-BADU-204 module’s Channel 1 had developed a linear offset error due to aged internal capacitors. The plant couldn’t afford the week-long downtime required to rewire the rack for a modern PLC.
Solution: We provided a verified AS-BADU-204 surplus module. Because the I/O mapping in the 200 Series is fixed by the slot position, it was a literal “pull and plug” replacement.
Result:
- Accuracy Restored: The digital reading matched the manual gauge immediately.
- Zero Programming: No software changes were needed, saving the client thousands in engineering fees.
Compatible Replacement Models
The 200 Series has specific modules for different signal types; ensure you aren’t trying to use a thermocouple module for a standard current loop.
| Original Model | Alternative Model | Compatibility Level | Notes |
| AS-BADU-204 | AS-BADU-204 (Series B) | ✅ Direct Replacement | Fully interchangeable. |
| AS-BADU-204 | AS-BADU-208 | ⚠️ Software Compatible | 8-channel version; requires configuration change in the PLC. |
| AS-BADU-204 | AS-B875-101 | ❌ Incompatible | This is for the larger 800 Series/984 systems. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Quick Check | Action |
| Reading stuck at 0 or 4095 | Sensor/Wiring Fault | ❌ Low | Measure the voltage/current at the module terminals with a multimeter. | If signal is present at terminals, the module channel is blown. |
| Module “Active” LED is Off | Backplane Power Issue | ✅ High | Check if other modules in the rack are powered. | Reseat the module; check the base/backplane for bent pins. |
| Erratic/Jumping Values | Shielding/Grounding | ⚠️ Medium | Ensure signal cable shields are grounded at one end only. | If grounding is OK, the module’s internal filter may have failed. |
| Incorrect Values (Offset) | Calibration Drift | ✅ High | Apply a known 5V or 12mA signal and check the PLC register. | If the value is off by >1%, the module needs replacement. |
Field Engineer’s Insight:
When you replace an AS-BADU-204, look at the terminal block. These legacy Modicon units often have “swing-arm” or removable terminal blocks. You don’t need to land all the wires again. Just unscrew the terminal block, swap the module body, and re-attach the block.
❗ IMPORTANT: Check the jumpers on the side or bottom of the module. The AS-BADU-204 uses physical jumpers to set the range (Voltage vs. Current). If you plug in a new module set for 0-10V into a 4-20mA loop, you won’t get a reading, or worse, you could damage the input.
Need the jumper configuration map for setting this module to 4-20mA? Let me know, and I’ll send you the diagram from the original manual.
