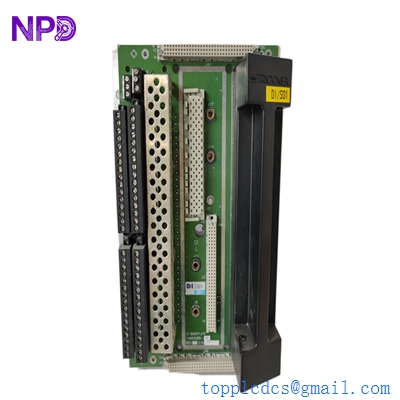

Description
- Model: Triconex 2301
- Brand: Triconex (Schneider Electric)
- Series: Tricon (High-Availability TMR System)
- Core Function: Triple Modular Redundant (TMR) Digital Input processing
- Product Type: Digital Input (DI) Module
- Key Specs: 24 VDC, 16 Channels, TMR Architecture
- Channels: 16 isolated digital input channels
- Nominal Input Voltage: 24 VDC
- Input Range: 15 to 30 VDC
- Architecture: TMR (Triple Modular Redundant) with three independent input legs
- Isolation: 1500 Vrms (input-to-field and input-to-logic)
- Point Troubleshooting: Individual point indicators for “Active” and “Fault”
- Self-Test: Continuous hardware and software diagnostics (including stuck-at-on/off tests)
- Response Time: < 10 ms (standard for safety-critical inputs)
- Input Current: 6.5 mA at 24 VDC (typical)
- Compatibility: Tricon v9, v10, and v11 systems
TRICONEX 2301
Installation & Configuration Guide
Phase 1: Pre-Installation (Estimated time: 15 minutes) ⚠️ Safety First:
- Since the 2301 is part of a Safety Instrumented System (SIS), ensure your safety bypasses are active according to your plant’s Standard Operating Procedures (SOP).
- Compatibility: Verify the version of your TriStation 1131 software. While the 2301 is a legacy staple, ensure your project configuration supports the specific hardware revision.
- Check the External Termination Panel (ETP). The 2301 requires a compatible 24V DC field signal interface.
Phase 2: Removal (Estimated time: 5 minutes)
- Identify the Faulty Module: Look for the red “FAULT” LED on the module faceplate.
- Loosen Fasteners: Unscrew the top and bottom retaining screws.
- Extraction: Use the pull-levers simultaneously to unseat the module from the high-speed backplane.
- Inspect the Slot: Check for any dust or debris in the chassis pins. Tricon systems are robust, but a clean connection is vital for TMR voting integrity.
Phase 3: Installation (Estimated time: 10 minutes)
- Slide and Seat: Slide the new 2301 module into the guides.
- Engagement: Push firmly until the ejector levers snap inward. You should feel the connectors engage with the backplane.
- Secure: Tighten the faceplate screws. This ensures the module remains seated during industrial vibrations.
Phase 4: Commissioning & Testing (Estimated time: 30 minutes)
- LED Status: Upon insertion, the module will run a Power-On Self-Test (POST). The “PASS” LED should turn green.
- TriStation Sync: Open TriStation 1131 and verify the module is recognized in the “Diagnostic Monitor.”
- Point Verification: Trigger a field input (e.g., a push button or limit switch) and verify that the “Active” LED on the 2301 faceplate illuminates and the software bit updates.
- Clear Alarms: Ensure any “Module Mismatch” or “I/O Fault” alarms in the system buffer are cleared.
TRICONEX 2301
Customer Cases & Industry Applications
Case 1: Emergency Shutdown (ESD) Recovery An LNG facility in Australia experienced a “Fault” on one leg of their ESD system. Because the Triconex system is TMR, the plant continued to run, but they lost their 2-out-of-3 voting redundancy, putting the plant at higher risk. We delivered a New Surplus 2301 via international priority. The on-site engineer swapped the module while the plant remained “live” (hot-swap), restoring the system’s full SIL-3 safety integrity in less than 48 hours.
Case 2: Strategic Spares for Oil Refinery A refinery in Southeast Asia was managing an aging Tricon v9.6 system. The OEM had moved the 2301 to “Limited Support” status with high lead times. The refinery purchased two New Surplus units from us to maintain their own strategic stock. During a monsoon-related power surge, multiple I/O points were damaged. Because they had the 2301 on-site, they were back to 100% redundancy within an hour, avoiding a multi-million dollar unplanned shutdown.
Frequently Asked Questions (FAQ)
Q: Is the Triconex 2301 hot-swappable? A: Yes. One of the primary benefits of the Tricon architecture is that you can replace an I/O module while the system is running. However, always ensure you are following your facility’s safety bypass protocols before doing so.
Q: What is the difference between the 2301 and the 2351? A: The 2301 is a standard 24 VDC digital input module. The 2351 is often a higher-density or specialized version (such as 24/48 VDC). Always check your TriStation configuration—you cannot simply swap a 2301 for a different model number without changing the software project.
Q: My “FAULT” LED is blinking red. What does that mean? A: A blinking red LED usually indicates a configuration mismatch (the hardware in the slot doesn’t match what the software expects) or a failure in one of the three internal TMR legs. Use TriStation’s Diagnostic Monitor to see the specific error code.
Q: Does “New Surplus” hardware come with the original Schneider/Triconex certificates? A: We provide the modules in their original packaging, often including the factory test reports. While we are an independent supplier, we offer our own 1-year warranty to ensure you have the same level of confidence as a factory-direct part.
Q: Can I use this in a Tricon CX system? A: No. The 2301 is designed for the classic Tricon (v9/v10/v11) chassis. The Tricon CX uses a significantly smaller form factor and different I/O modules.
