Description
- Model: Triconex 3101
- Brand: Triconex (Schneider Electric)
- Series: Tricon (High-Availability TMR System)
- Core Function: High-precision pulse frequency measurement for speed and flow monitoring
- Product Type: Pulse Input (PI) Module
- Key Specs: 8 Channels, Triple Modular Redundancy (TMR), supports magnetic pickups

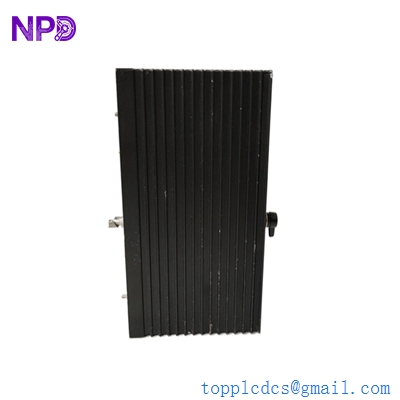

TRICONEX 3101
Key Technical Specifications
- Channels: 8 independent pulse input channels
- Input Frequency Range: 20 Hz to 20,000 Hz
- Accuracy: ±0.01% of full scale
- Input Signal Types: Passive magnetic pickups (self-generating) or active sensors
- Sensitivity: Adjustable/Automatic thresholds (typically 50 mV to 10 V peak-to-peak)
- Architecture: TMR (Triple Modular Redundant) with integrated hardware voting
- Isolation: 1500 Vrms (input-to-field and input-to-logic)
- Update Rate: Fast updates for turbine overspeed protection
- Diagnostics: Full self-test capability for hardware and input signal integrity
- Compatibility: Tricon v9, v10, and v11 systems
Installation & Configuration Guide
Phase 1: Pre-Installation (Estimated time: 20 minutes) ⚠️ Safety First:
- The 3101 is frequently used for Turbine Overspeed Protection. Ensure all trip bypasses are strictly managed according to site safety procedures.
- Signal Verification: Verify the sensor type (Magnetic Pickup vs. Proximity Probe). Magnetic pickups generate their own AC voltage and require specific sensitivity settings.
- Check the External Termination Panel (ETP). Pulse signals are high-frequency; ensure shielded twisted pair cabling is used to prevent noise interference.
Phase 2: Removal (Estimated time: 5 minutes)
- Identify Module: Locate the 3101 module in the I/O chassis.
- Unlock Fasteners: Loosen the top and bottom retaining screws.
- Extraction: Use the two pull-levers simultaneously to unseat the module. Pull straight out to avoid damaging the high-density backplane pins.
- Clean the Slot: Use compressed air to ensure no dust is present on the backplane connectors.
Phase 3: Installation (Estimated time: 10 minutes)
- Slide and Seat: Align the 3101 module with the slot guides.
- Engagement: Push firmly until the ejector levers snap into the locked position.
- Secure: Tighten the faceplate screws to ensure a continuous ground connection to the chassis frame.
Phase 4: Commissioning & Testing (Estimated time: 45 minutes)
- Power-On: The module will cycle through its POST (Power-On Self-Test). The “PASS” LED should turn solid green.
- TriStation Setup: Use TriStation 1131 to configure the frequency range and sensitivity for each channel.
- Speed Test: If possible, use a pulse generator to simulate a speed signal. Verify that the RPM values in the software match the generator frequency within the ±0.01% tolerance.
- Redundancy Check: Verify in the Diagnostic Monitor that all three internal legs are seeing the pulse signal and voting correctly.
TRICONEX 3101
Customer Cases & Industry Applications
Case 1: Gas Turbine Overspeed Protection A power plant in the Middle East had an intermittent “Pulse Mismatch” alarm on their main gas turbine. The original 3101 module had a degrading analog front-end on one leg. We delivered a New Surplus 3101 via priority air-freight. The plant was able to “hot-swap” the module during a low-load period, restoring the safety integrity of the overspeed trip system without having to shut down the generator.
Case 2: Custody Transfer Flow Measurement A large oil refinery used Triconex 3101 modules to process pulses from high-accuracy flow meters. When a module failed due to a localized surge, the refinery lost the ability to log precise volume data for billing. Because we had the 3101 in stock, they received the replacement in 3 days, significantly shortening the period of manual estimation and reducing financial risk.
Frequently Asked Questions (FAQ)
Q: Can I replace a 3101 with a different input module? A: No. The 3101 is specialized for pulse/frequency processing. A standard Digital Input (like the 2301) cannot handle high-frequency signals or the specific sensitivity required for magnetic pickups.
Q: Why is my 3101 reporting “Input Fault” when the sensor is connected? A: This is often due to the signal being below the “Threshold Voltage.” In my experience, magnetic pickups produce very low voltage at low speeds. Check your sensitivity settings in TriStation 1131 and ensure the gap between the sensor and the gear tooth is correct.
Q: Is “New Surplus” reliable for a safety-critical PI module? A: Yes. Because these modules are TMR, even a new unit is constantly voting against its peers. Our New Surplus stock consists of units that were never placed in service, avoiding the heat-related aging that typically affects pulse-processing circuitry.
Q: Does it support active (Powered) sensors? A: Yes, but you must ensure the wiring at the External Termination Panel (ETP) provides the necessary power to the sensor, as the 3101 inputs themselves are designed to measure the signal, not provide loop power.
Q: How do I clear a “Leg Fault” on the 3101? A: If the fault persists after re-seating the module, it usually indicates an internal hardware failure on one of the three microprocessors. In this case, the module should be replaced with a spare to maintain full TMR protection.
