Description
Product Technical Parameters
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |

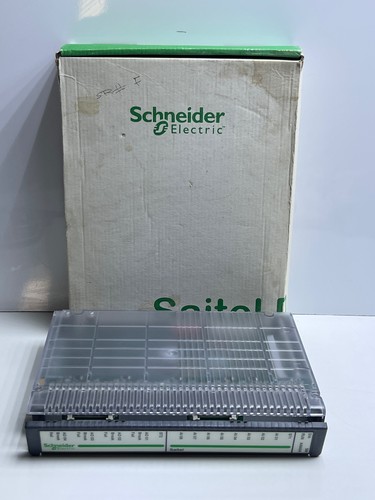

| Model | M525200002-E2 |
| Series | Modicon / Specialist I/O Series |
| Module Type | Combined Analog I/O Module |
| Analog Inputs | 8 Channels (Differential/Single-ended) |
| Analog Outputs | 4 Channels |
| Signal Ranges | 0-10V, ±10V, 0-20mA, 4-20mA |
| Resolution | 12-bit to 16-bit (Configuration dependent) |
| Isolation | 1500V AC between I/O and logic |
Product Datasheet
| Attribute | Details |
|---|---|
| Dimensions | 12.5 cm x 4.0 cm x 11.5 cm |
| Weight | 0.35 kg (approx. 0.77 lbs) |
| Country of Origin | France / Germany |
| Power Consumption | 150 mA @ 5V DC (Internal bus) |
| External Power | 24V DC for Output loops |
| Operating Temp | 0°C to +60°C (32°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
Application Fields
The M525200002-E2 is a high-density analog module designed for versatile process control. Primary applications include:
- Water Treatment: Monitoring flow meters (Inputs) and controlling variable frequency drives for pumps (Outputs).
- HVAC Systems: Reading temperature/humidity sensors and modulating dampers or valves.
- Manufacturing: Interfacing with pressure transducers and coordinating proportional valve movements.
- Energy Management: Real-time monitoring of power transducers and signal re-transmission.
- Chemical Processing: Managing closed-loop PID control for heating elements and mixers.
Product Instructions
- Mounting: Snap the module onto a standard DIN rail or insert it into the designated Modicon backplane slot. Ensure the mechanical locking lever is engaged to maintain bus communication.
- Wiring: Use shielded twisted-pair cables for all analog connections. Connect sensor leads to the input terminals (Channels 1-8) and actuator leads to the output terminals (Channels 9-12). Ensure the shield is grounded at the panel entry point.
- Powering: Provide a stable 24V DC supply to the external power terminals. This is required to drive the 4-20mA current loops for the output channels.
- Configuration: Use the Schneider Electric programming software (such as EcoStruxure Control Expert) to define the signal type (Voltage or Current) for each channel. Calibrate the zero and span settings to match the field device specifications.
Product Q&A
Q: Can I mix voltage and current signals on the same module? A: Yes, most Schneider analog modules allow for individual channel configuration, meaning you can have 4-20mA on Input 1 and 0-10V on Input 2, provided they are configured correctly in the software.
Q: What happens if the external 24V supply is lost? A: The analog inputs may continue to function if they are self-powered, but the 4 analog outputs will fail to drive their loads, as they rely on the external supply for loop power.
Q: Does the M525200002-E2 support HART communication? A: This specific model is a standard analog module. For HART-capable transparent diagnostics, a dedicated HART I/O module from the Schneider catalog would typically be required.
Q: How do I troubleshoot an “Over-range” error? A: Check the field wiring for short circuits or a failed sensor. If the input signal exceeds 20.5mA or 10.5V, the module will flag an over-range error in the PLC status registers.
