Description

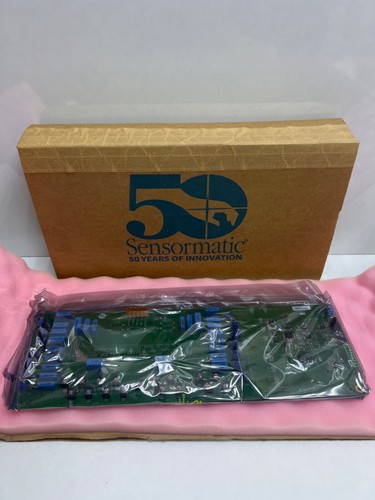

The Sensormatic 0312-3008-01 (also identified by PCB assembly 1712-3008-01) is a specialized capacitor board designed for high-performance electronic article surveillance (EAS) systems and industrial power regulation. This board provides critical energy storage and filtering capabilities to ensure stable voltage delivery to transmitter and receiver circuits.
Product Datasheet
| Attribute | Specification |
|---|---|
| Brand | Sensormatic |
| Model Number | 0312-3008-01 |
| Part Number (PCB) | 1712-3008-01 |
| Component Type | Capacitor Board / Energy Storage Module |
| Capacitance Configuration | Multi-bank Electrolytic Array |
| Operating Voltage | 24V – 48V DC (Typical) |
| Origin | USA |
| Weight | 0.45 kg |
| Dimensions | 152mm x 102mm x 45mm |
Application Fields
- Retail Security Systems: Powering UltraPost and MegaMax detection pedestals.
- Industrial Automation: Localized energy buffering for sensor arrays.
- Electronic Article Surveillance (EAS): Tuning and pulse discharge management.
- Power Supply Filtering: Reducing ripple current in sensitive electronic environments.
Product Instructions
- Safety First: Ensure all power sources are disconnected before installation. Capacitors may hold a residual charge; use a discharge tool if necessary.
- Mounting: Secure the board using the pre-drilled corner mounting holes. Use non-conductive spacers to prevent short circuits against the chassis.
- Wiring: Connect the primary power input and output leads according to the polarity markings (+/-) on the board surface.
- Inspection: Check for any bulging or leaking capacitors before powering on. Replace the board immediately if physical degradation is visible.
Q&A – Frequently Asked Questions
Q: Can the 1712-3008-01 board be used as a direct replacement for older 0312 series boards? A: Yes, the 1712-3008-01 is the PCB assembly number found on the 0312-3008-01 board and is fully compatible with systems requiring that specific model.
Q: What are the signs of a failing capacitor board? A: Common indicators include intermittent power loss to the detection pedestals, audible humming from the power supply unit, or visible swelling of the capacitor cans.
Q: Does this board require specific software calibration? A: No, this is a hardware-level filtering and storage component. However, the overall system may require re-tuning after replacement to ensure optimal detection range.
