Description

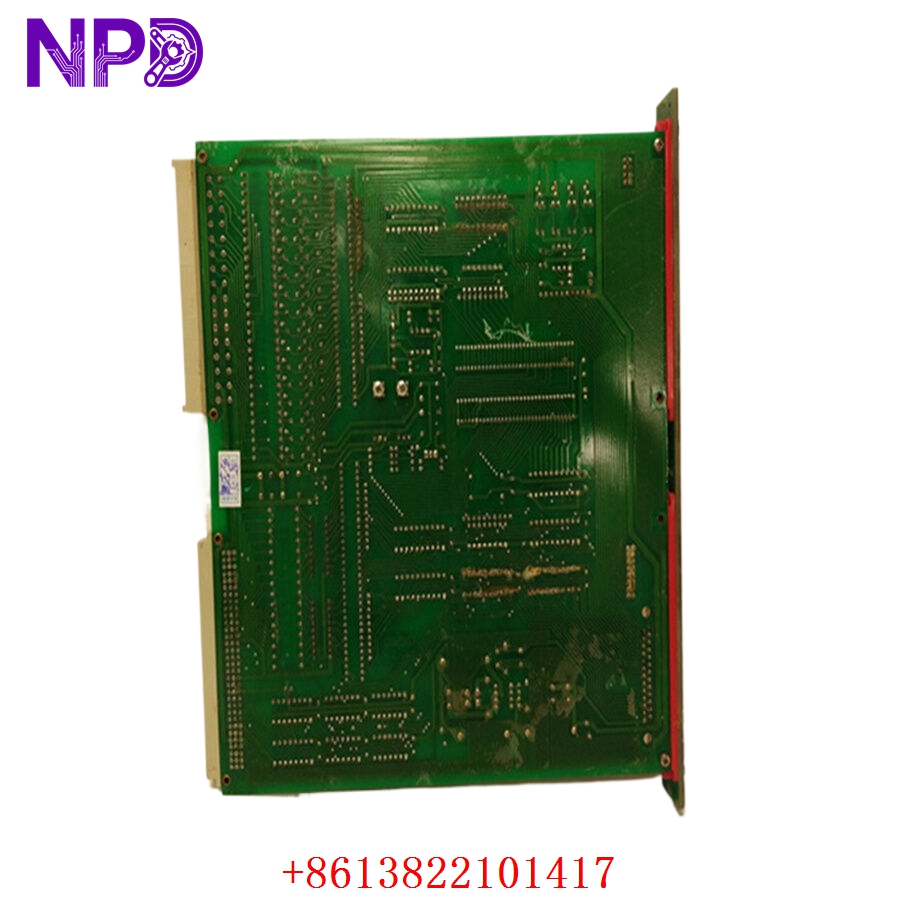

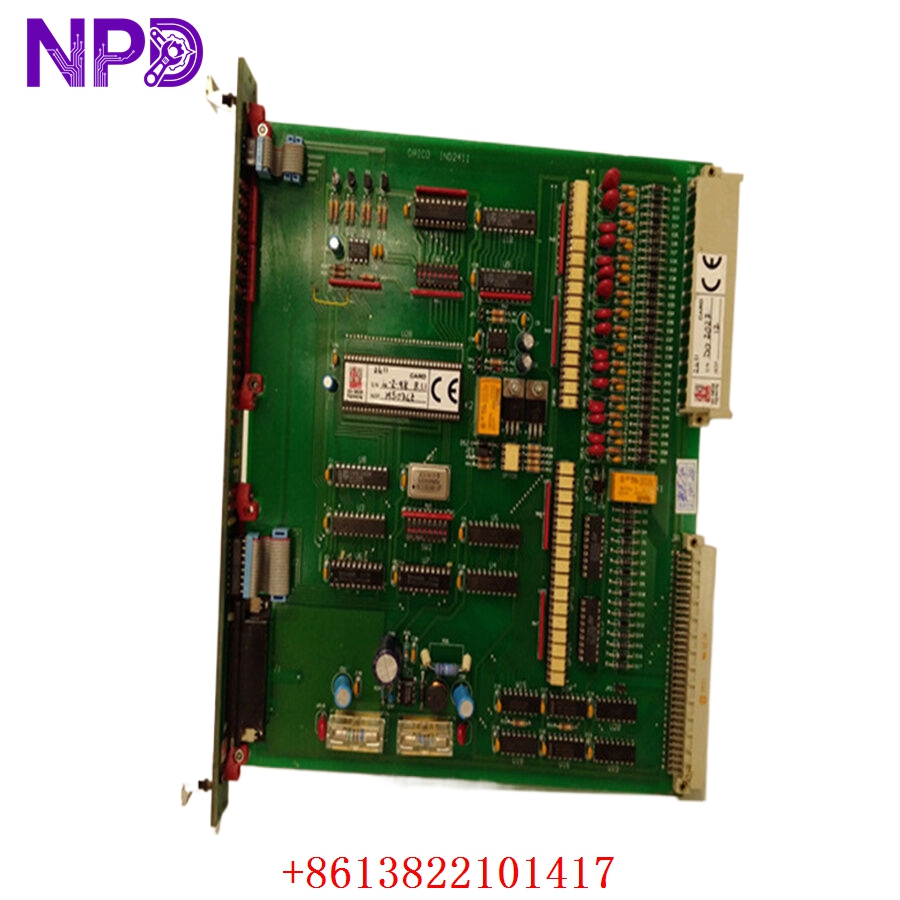

- 🔢 Model: SES 2411 (IND2411)
- 🏢 Brand: SES
- 💡 Core Function: Industrial control and signal processing for automation systems
- 🛠️ Type: Industrial Controller / Logic Module
-
- ⚡ Input Voltage: 24 V DC
- 🖥️ Interface: Integrated I/O ports for process control
- ⚙️ Mounting Type: DIN Rail / Panel Mount
- 🌡️ Operating Temp: 0°C to 55°C
- 🛡️ Protection Rating: IP20
- 💡 Status Indicators: Power, Run, Error, and I/O status LEDs
- 🛠️ Connectivity: Standard industrial terminal block connection
Installation & Configuration Guide
Phase 1: Preparation (15 mins)
⚠️ Safety First:
- Confirm the system is in a controlled, non-operational state.
- Disconnect the main DC power supply to the control rack.
- 🧤 Always use an anti-static wrist strap to protect the module’s sensitive logic board.
Phase 2: Removal & Installation (20 mins)
- 📸 Record Settings: Before removing the old unit, photograph the wiring harness and any configured jumpers or switch settings.
- 🔩 Detachment: Carefully disconnect the terminal plugs. Release the module from the DIN rail or mounting bracket.
- 📥 Insertion: Align the replacement SES 2411 with the mounting rails. Press firmly until it snaps into place.
- 🔌 Wiring: Reconnect the terminal blocks according to the photographic records. Double-check for any loose connections that could cause signal instability.
Phase 3: Testing & Commissioning (10 mins)
- 🟢 Power-Up: Apply 24 V DC power. The Power LED should be solid, and the Run LED should transition to normal operating mode.
- 🔄 I/O Verification: Use a multimeter to verify that input signals are being correctly registered by the controller.
- 📡 System Integration: Confirm the controller is communicating properly with your HMI or SCADA system.
Customer Cases & Industry Applications
Case: Legacy Packaging Line Controller Replacement
- Situation: A food processing facility relied on an SES 2411 for precision timing on a high-speed conveyor. The system had been running for over a decade.
- Task: An internal power failure on the existing unit caused intermittent logic errors, halting the packaging line.
- Action: They found the exact IND2411 match in our surplus inventory. Because it was a “plug-and-play” replacement, the maintenance team didn’t need to rewrite any software.
- Result: Installation and validation took under an hour. The customer expressed relief that they avoided a full control system replacement, which would have required weeks of downtime and substantial capital expenditure.
Frequently Asked Questions (FAQ)
Q: Is the IND2411 a direct replacement for the SES 2411? A: Yes, these are different part references for the same hardware series. They are functionally identical and fully interchangeable.
Q: Is this unit new? A: We supply New Surplus units. These are genuine, unused modules sourced from legacy stock. We avoid refurbished units because industrial controllers are the “brain” of your process; we prioritize long-term reliability over lower-cost, high-risk alternatives.
Q: Do I need special software to configure this? A: Typically, these units are configured via dip-switches or jumpers on the module itself, or through standard factory programming. If you are replacing an existing unit, simply mirror the configuration settings of the old module.
Q: What if I encounter an “Error” LED? A: Ensure that the 24 V DC input is stable and within the recommended voltage range. If the error persists, check the I/O terminals for potential shorts. If you are confident the external wiring is sound, contact us—we can assist with diagnostic troubleshooting steps.
