Description

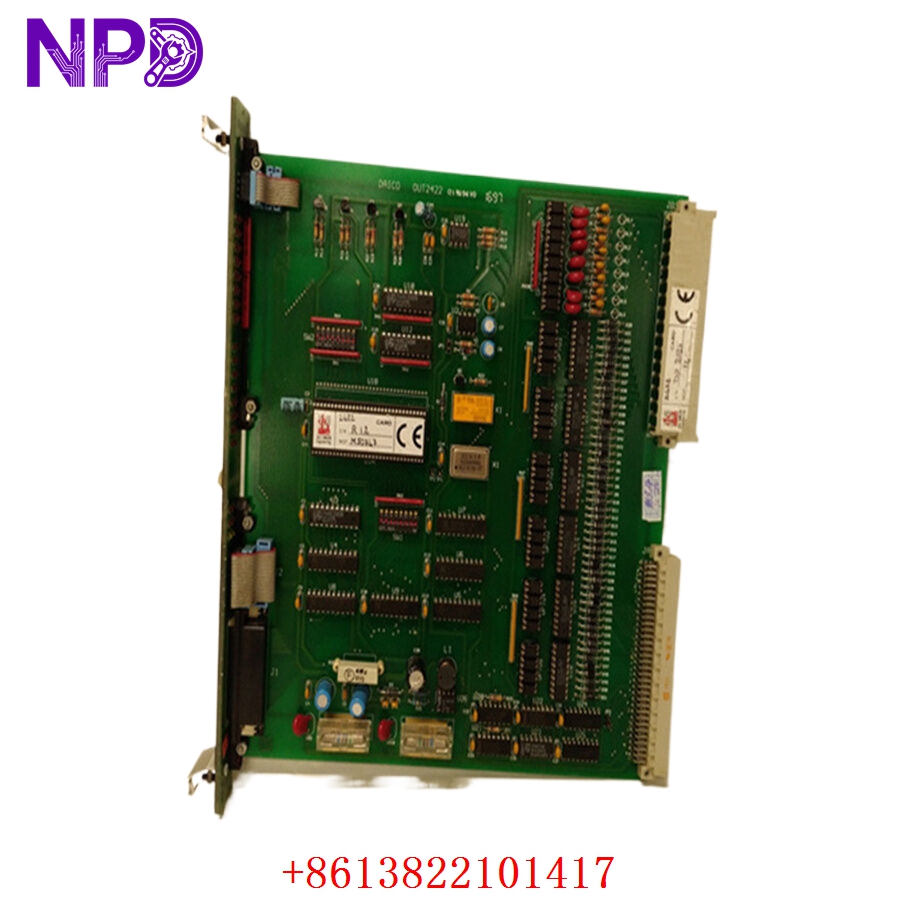

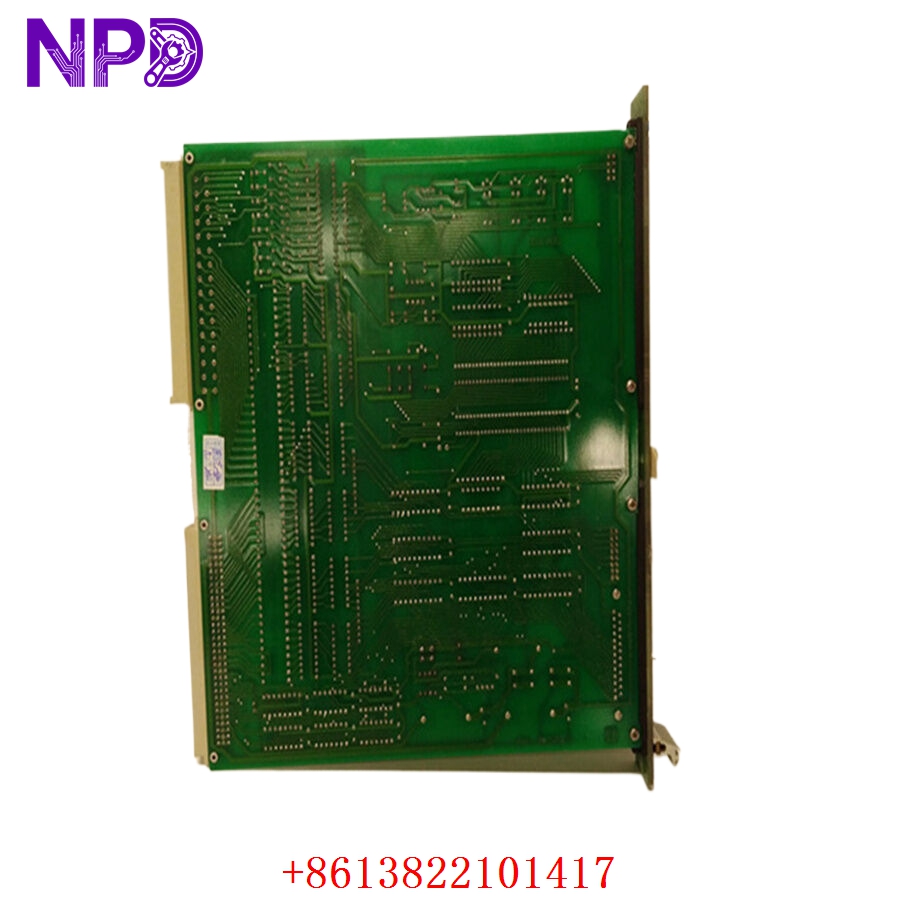

The SES 2422 OUT2422 is a high-performance output module designed for industrial automation control systems. It is engineered to manage the reliable switching of external field devices, providing the necessary interface between high-level logic controllers and physical actuators. Built to withstand demanding industrial conditions, this module ensures precise, low-latency command execution for automated processes.
Technical Specifications
| Parameter | Detail |
| Model | OUT2422 |
| Series | SES 2422 |
| Device Type | Output Control Module |
| Function | Digital Signal Output / Actuator Control |
| Compatibility | Standard SES Industrial Control Racks |
| Mounting | Rack-mount / Backplane |
| Operating Temp | 0°C to 55°C |
| Origin | Industrial Automation Standard |
Fields of Application
The OUT2422 is primarily utilized in sectors requiring robust signal output management, such as automated manufacturing lines, power plant control systems, and heavy industrial machinery. It is frequently employed to drive relays, solenoids, indicators, and other critical process actuators that require clear, error-free command signals from the main controller.
Product Introduction
This module acts as the final stage of the control sequence, translating digital instructions from the CPU into actionable electrical output. Its architecture is optimized for high-speed switching and electrical isolation, protecting the internal logic circuitry from back-EMF (electromotive force) and voltage spikes common in industrial environments. By ensuring consistent signal output, the OUT2422 significantly enhances the reliability of the entire automated system.
Product Use Instructions
To integrate the OUT2422 into your setup:
- Confirm the control system is powered off and follow established safety lockout procedures.
- Insert the module into the designated I/O slot on the backplane, ensuring firm seating and alignment.
- Secure the module using the built-in locking tabs or retaining screws.
- Wire the output field devices to the corresponding terminal blocks, ensuring proper polarity and wire gauge for the intended current load.
- Apply power and monitor the status LEDs on the module front; a “Run” or “Active” indicator signifies the module is communicating correctly with the main processor.
Product Use Precautions
Do not exceed the maximum switching current or voltage ratings listed in the product documentation, as this will result in permanent internal damage. Ensure that all connected inductive loads (like solenoids or contactor coils) have appropriate surge suppression (flyback diodes or snubber circuits) installed to prevent damage from inductive spikes. Keep the module clear of conductive dust and excessive moisture. Always verify that the module is properly seated before energizing the system.
Frequently Asked Questions (Q&A)
Q: How can I verify that a specific output channel is firing?
A: Most versions of the OUT2422 include individual channel LED indicators. When a channel is energized by the controller logic, the corresponding LED will illuminate.
Q: What should I do if an output channel fails to respond?
A: First, check the diagnostic logs on your HMI for any fault codes related to the module slot. If no software fault exists, check the physical terminal connection and verify that the external device has sufficient power.
Q: Is this module compatible with older versions of the SES 2422 series?
A: Compatibility depends on the hardware revision level. Please compare the revision code on your current module with the replacement unit to ensure full functional alignment.
Product Operation Methods
During standard operation, the OUT2422 functions as a slave module controlled by the primary system processor. It periodically receives output states via the system bus and immediately updates the physical state of its output terminals. It requires no manual input or direct maintenance during the run cycle. Periodic checks of terminal tightness are advised to ensure no degradation in performance due to facility vibrations.
