Description
Technical Specifications
| Feature | Specification |
|---|---|
| Model | SF-CONTROL LD 100S |
| Device Type | Leveldatic Multipoint Transmitter Cabinet |
| Measurement Type | Electro-pneumatic Level Gauging |
| Origin | Norway / EU |
| Weight | Approx. 45.0 kg (Standard Configuration) |
| Dimensions | 600 mm x 600 mm x 210 mm (W x H x D) |
| Input Channels | Multi-point Monitoring (Configurable) |
| Enclosure Rating | IP54 / IP65 (depending on installation) |
| Power Supply | 230V AC / 24V DC Options |
| Operating Temperature | -10°C to +55°C |

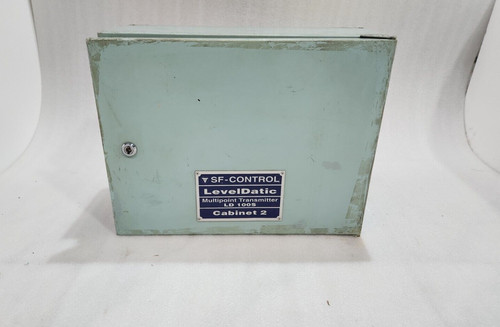

The SF-CONTROL LD 100S functions as a robust multipoint transmitter cabinet designed specifically for marine and industrial level gauging applications. By utilizing highly accurate electro-pneumatic conversion, this system provides reliable data acquisition for ballast tanks, fuel oil tanks, and draft measurement, ensuring high stability even in harsh environments.
Product Q&A
Q: What is the primary function of the Leveldatic LD 100S cabinet? A: It serves as a centralized control unit that converts pneumatic pressure signals from multiple remote sensors into precise electrical signals for level monitoring and data transmission to the main control system.
Q: How does the system maintain accuracy over long-term use? A: The unit features automatic purging and zero-point calibration functions to prevent clogging of the sensing lines and to compensate for environmental pressure changes.
Q: Can this unit be integrated into existing PLC or DCS networks? A: Yes, it is designed with standard communication interfaces (such as Modbus or analog outputs) to facilitate seamless integration with most industrial automation platforms.
