Description

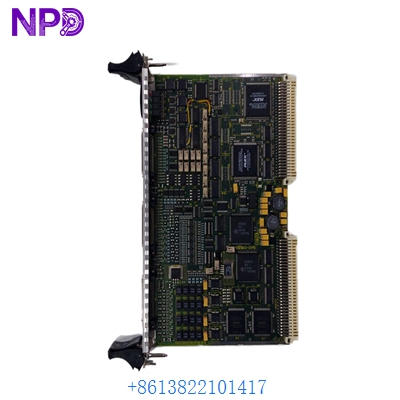

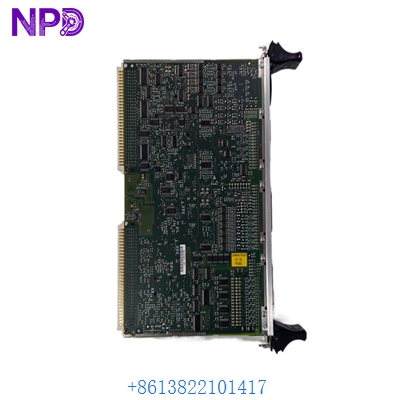

The Siemens 6DD1640-0AH0 is a specialized power supply module within the SIMATIC S5 and SIMADYN D control systems. It is engineered to provide highly stable and filtered power to specialized function modules and rack-based components in demanding industrial automation environments.
Product Parameters
- Model Number: 6DD1640-0AH0
- Product Family: SIMATIC S5 / SIMADYN D
- Input Voltage: 24V DC
- Module Type: Power Management / Power Supply Module
- Design: Plug-in module for subrack mounting
Product Specifications
- Output Voltage: Multiple stabilized DC outputs for internal bus communication
- Cooling: Natural convection cooling
- Diagnostics: Front-panel LED indicators for input/output status monitoring
- Mounting: Compatible with standard 19-inch rack systems or specific S5 subracks
- Isolation: High dielectric strength to protect sensitive control electronics
Application Fields
- High-speed closed-loop control systems (SIMADYN D)
- Retrofitting and maintenance of legacy SIMATIC S5 installations
- Coordinated drive controls for steel and paper mills
- Power plant turbine control synchronization
Q&A
- Q: Can this module be used in a standard S7-1500 rack? A: No, the 6DD1640-0AH0 is specific to the SIMADYN D and legacy SIMATIC S5 hardware architectures.
- Q: What is the main purpose of the PM505 designation? A: PM505 refers to the Power Module category, specifically designed for centralized power distribution within a module rack.
- Q: Does it support hot-swapping? A: Power should generally be cycled according to system-specific safety protocols before removing rack-based power modules.
Selection Requirements
- Verify that the input power supply matches the 24V DC requirement.
- Check the total power consumption of the other modules in the rack to ensure the 6DD1640-0AH0 can meet the demand.
- Ensure compatibility with the specific subrack backplane version installed in your system.
