Description
- Model: SIEMENS 6DD1682-0CH0 (SU300)
- Brand: Siemens (Germany)
- Series: SIMADYN D / SIMOTION
- Core Function: Signal interface and connection block for high-performance converters
- Product Type: Interface / Terminal Module (SU: Sensor/Universal Unit)
- Key Specs: Multi-pin Ribbon Cable to Terminal Block Conversion | Shielded Housing
- Module Type: Interface Module SU300
- Connection A: 50-pin ribbon cable connector (Socket)
- Connection B: 50 individual screw-type terminals
- Max Voltage: 60 V DC
- Max Current: 0.5 A per channel
- Mounting: Standard DIN Rail (35 mm)
- Housing: Plastic enclosure with integrated cable strain relief
- Dimensions: 150 mm x 120 mm x 52 mm
- Weight: Approximately 0.45 kg
- Temperature Range: 0 to +55°C (Storage: -40 to +70°C)

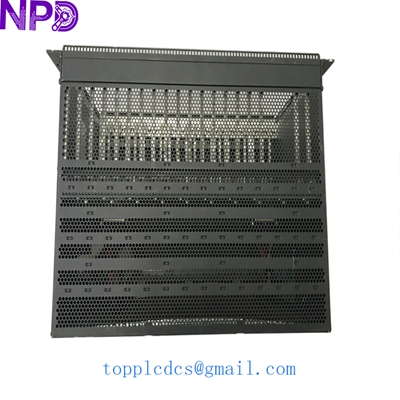

SIEMENS 6DD1682-0CH0
Application Scenarios & Pain Points
Engineering Pain Points: In high-performance drive applications—like cold rolling mills or high-speed paper machines—the SIMADYN D system handles calculations in the microsecond range. The 6DD1682-0CH0 is the “bridge” between the sensitive electronic rack and the rugged field wiring. The biggest risk here is signal noise and crosstalk. If the shielding on the 50-pin ribbon cable isn’t handled correctly at this interface block, you’ll see erratic speed setpoints that are impossible to tune out in the software.
Typical Application Scenarios:
- Steel Industry – Rolling Mill Drives Used to interface the SIMADYN D rack with massive thyristor power converters (like SIMOREG or SINAMICS).
- Paper & Pulp – Sectional Drives Managing the synchronization of dozens of motors where precise tension control is mandatory.
- Mining – Large Hoist Controls Converting high-density rack signals to field-level terminal blocks for easy maintenance and troubleshooting.
- Power Generation – Excitation Systems Interfacing control signals for large generator excitation units where reliability is non-negotiable.
Case Study: The “Jumping” Tension Problem
Background: A textile plant in Northern China was using a SIMADYN D system to control a high-speed winder. They started seeing random “Tension Limit Exceeded” errors that would snap the material and halt production.
Problem: After days of software debugging, we looked at the cabinet hardware. The existing 6DD1682-0CH0 unit had loose screw terminals due to years of machine vibration, and the ribbon cable was partially unseated. The resulting high-resistance contact was introducing millivolt-level noise into the analog feedback loop.
Solution: We replaced the module with a fresh 6DD1682-0CH0, ensured the ribbon cable was locked with the secondary clips, and used ferrules on all field wires.
Result: The tension signal stabilized immediately. The plant was back to 100% speed by that evening. This proved that even a “simple” interface block is a critical failure point in high-speed loops.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference |
| 6DD1682-0CH0 | 6DD1682-0CH2 | ✅ Direct Replace | Newer revision, slightly different terminal orientation |
| 6DD1682-0CH0 | 6DD1682-0BC0 | ⚠️ Software Compatible | SU200 version; only 20-pin configuration |
| 6DD1682-0CH0 | 6DD1903-0BA0 | ❌ Incompatible | Different series (SIMOTION D) with incompatible pinouts |
Integrator’s Tip: When upgrading or replacing, always check your ribbon cable length. The 0CH0 assumes a standard 50-pin layout, but some custom Siemens cables have specific shielding tails that must be bonded to the DIN rail for proper EMC (Electromagnetic Compatibility) performance.

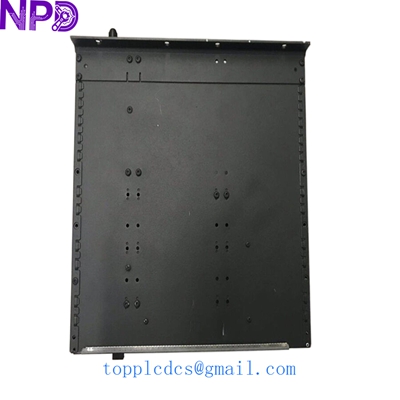

SIEMENS 6DD1682-0CH0
Troubleshooting Quick Reference
| Symptom | Possible Cause | Related Part | Action |
| I/O Points Not Reporting | Ribbon cable unseated | ✅ 6DD1682-0CH0 | Check the 50-pin latching mechanism |
| Intermittent Signal Loss | Screw terminal vibration | ✅ 6DD1682-0CH0 | Re-torque all terminals to 0.5 Nm |
| Rack Fault (Short Circuit) | Terminal-to-Terminal short | ✅ 6DD1682-0CH0 | Inspect for stray wire strands at the block |
| Analog Signal Drift | Poor shield grounding | ✅ 6DD1682-0CH0 | Verify the shield clamp is making contact with the rail |
Field Note: …Speaking from experience, if you’re working in a high-vibration environment (like near a stamping press), use a small dab of thread-locker or switch to spring-loaded terminals if possible. The 6DD1682-0CH0 is a tank, but the screw terminals are only as good as the guy who tightened them.

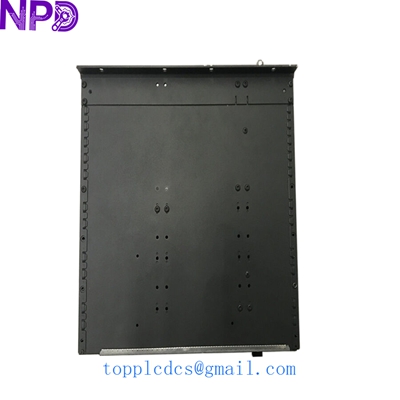

SIEMENS 6DD1682-0CH0
Strategic Quality Assurance (Our SOP)
- Visual Inspection: We check for bent pins on the 50-pin header—a common shipping defect.
- Continuity Test: Every terminal is tested from the screw head to the corresponding pin on the ribbon connector.
- Insulation Check: We verify no leakage between adjacent channels up to 100 V DC.
- Secure Packing: Shipped in a custom-fit box with ESD-safe shielding.
