Description

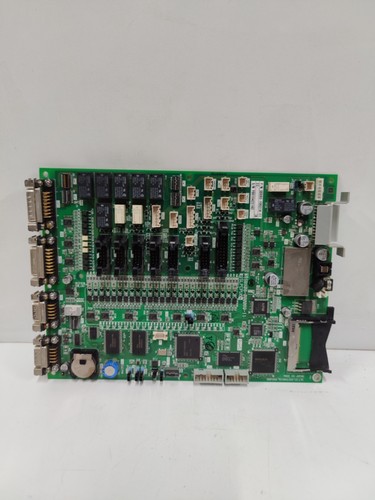

The Sinfonia Technology SBX93-100149-11 (often associated with PCB assembly SBX08-000089-11) is a precision control board used in high-end imaging and industrial printing equipment. Sinfonia Technology (formerly Shinko Electric) utilizes these boards for managing motor drivers, thermal printhead control, and data processing within their industrial hardware lineup.
Product Specifications
- Brand: Sinfonia Technology
- Part Numbers: SBX93-100149-11 (Main Assembly), SBX08-000089-11 (PCB Identifier)
- Product Type: Printed Circuit Board (PCB) / Control Assembly
- Application: Image processing, thermal management, and motion control for industrial printers and specialized instrumentation.
- Operating Voltage: Typically 24V DC logic and motor power rails.
- Mounting: Internal chassis-mount within the imaging unit or industrial console.
Functional Characteristics
- Printhead Control: Manages the thermal energy and timing sequences for the printhead assembly, ensuring accurate image resolution and density.
- Motor Interfacing: Serves as the primary controller for stepper motors responsible for paper feed, ribbon transport, and mechanical positioning.
- Signal Processing: Handles incoming image data packets, converting them into mechanical instructions for high-precision printing or scanning tasks.
- Logic Management: Integrates system status monitoring, allowing the unit to detect paper jams, ribbon depletion, or thermal overheating states.
Installation and Integration Notes
- Firmware/Configuration: As an imaging control board, this unit is often “platform-dependent.” It may require a specific firmware version corresponding to the specific model of printer or scanner it is installed within.
- Static Sensitivity: These boards contain high-density surface-mount components. Always handle the board by the edges or use a grounded wrist strap to prevent electrostatic damage to the processor and logic chips.
- Cable Connectivity: The board features multiple high-density connectors. When replacing the PCB, ensure all ribbon cables are fully seated and that the locking clips (where applicable) are fully engaged to prevent intermittent signal loss.
Maintenance Advisory: Industrial imaging boards are highly sensitive to thermal cycling. If this board is being replaced due to a “system error,” verify the health of the thermal printhead and the motor power supplies first, as a short in a printhead or a failing motor driver can cause the main control board to trigger a protective shutdown.
