Description
The SIS TRICONEX 3201 (CM3201) is a high-performance, fault-tolerant communication module designed for the Trident and Tri-GP safety instrumented system (SIS) platforms. As a core component of the Triple Modular Redundant (TMR) architecture, the CM3201 enables the safety controller to communicate securely with external host computers, Distributed Control Systems (DCS), Human-Machine Interfaces (HMI), and other Triconex systems.

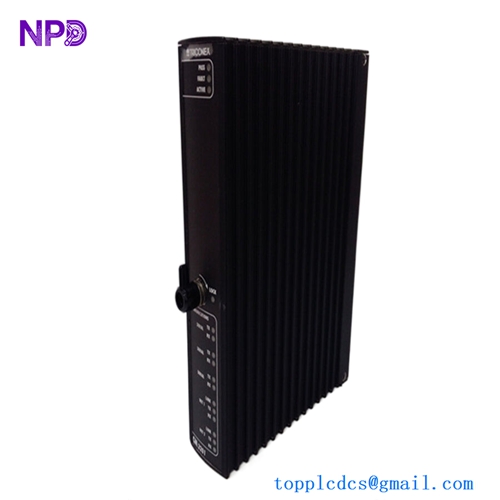

TRICONEX 3201 CM3201
1. Technical Parameters & Datasheet
The CM3201 provides a robust interface that ensures safety data is transmitted without compromising the integrity of the safety loop.
| Parameter | Specification |
| Model Number | 3201 / CM3201 |
| Product Type | Communication Module (CM) |
| Redundancy | Supports dual-redundant configuration on a CM Baseplate |
| Nominal Input Voltage | 24 VDC (Range: 19.2 to 30 VDC) |
| Power Interruption | 1 ms maximum from nominal value |
| Processor Speed | High-performance RISC architecture |
| Memory | 32 MB Flash / Internal SDRAM for buffering |
| Serial Ports | 3x RS-232 / RS-485 Optically Isolated ports |
| Ethernet Ports | 2x Ports (1x 10BaseT, 1x 100BaseTX) |
| Protocol Support | Modbus (Master/Slave), TCP/IP, TSAA, SNTP, TriStation |
| Operating Temp | -40°C to +70°C (-40°F to +158°F) |
| Safety Certification | TÜV Certified up to SIL 3 (IEC 611508) |
2. Country of Origin
The TRICONEX 3201 CM3201 is manufactured in the United States of America (USA) by Schneider Electric (formerly Invensys/Triconex).

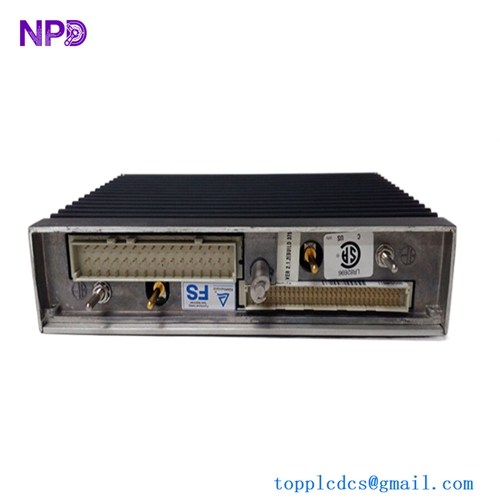

TRICONEX 3201 CM3201
3. Application Areas
The module is deployed in “high-consequence” industries where any failure in communication or control could lead to catastrophic events:
- Emergency Shutdown (ESD): Reliable reporting of safety-critical unit status in refineries and chemical plants.
- Fire and Gas (F&G) Systems: Monitoring and responding to flame and gas detectors in offshore platforms.
- Burner Management Systems (BMS): Controlling the startup and safety of industrial boilers and furnaces.
- Turbomachinery Control (TMC): Managing speed and safety sequencing for large compressors and turbines.
4. Product Usage Instructions
Installation and Mechanical Setup
- Chassis Slotting: The CM3201 must be installed into a dedicated CM Baseplate. A single Trident controller can support up to two CM3201 modules for full redundancy.
- Hot-Swapping: The module supports “Online Module Replacement.” If a fault occurs, the module can be removed and a new one inserted while the system is under power and the process is running.
- Grounding: Ensure the chassis is properly grounded to the system’s protective earth to prevent EMI/RFI interference on the communication lines.
Configuration
- TriStation 1131: All port settings, baud rates (up to 115 kbps for serial), and network IP addresses must be configured using the TriStation 1131 Developer’s Workbench.
- Addressing: Each serial port is uniquely addressed. Serial Port #4 is typically reserved for the TriStation interface or Modbus debugging.
Maintenance
- LED Indicators: * PASS: Indicates the module has passed internal diagnostics.
- FAULT: Indicates a hardware failure.
- ACTIVE: Indicates the module is actively communicating with the Main Processors (MPs).
- SOE Retrieval: The CM3201 manages Sequence of Events (SOE) data. Use the SOE Recorder tool to retrieve time-stamped event logs for post-incident analysis.
5. Product Related News
- Legacy Integration: Schneider Electric has recently highlighted the CM3201’s continued compatibility with newer EcoStruxure Triconex Safety software, allowing plants with older Trident hardware to leverage modern cybersecurity analytics.
- Cybersecurity Enhancements: Following the increase in threats to industrial control systems, Triconex has released updated technical notes on the CM3201 regarding “Network Hardening,” recommending the disabling of unused ports and the use of the TSAA (Triconex System Access Application) protocol for secure peer-to-peer data exchange.
- Supply Chain Resilience: Due to its critical nature in global energy infrastructure, the 3201 module is part of Schneider Electric’s “Priority Lifecycle Support” program, ensuring spare part availability despite the shift toward newer universal communication modules.
