Description
Technical Parameters
- Manufacturer: SKF

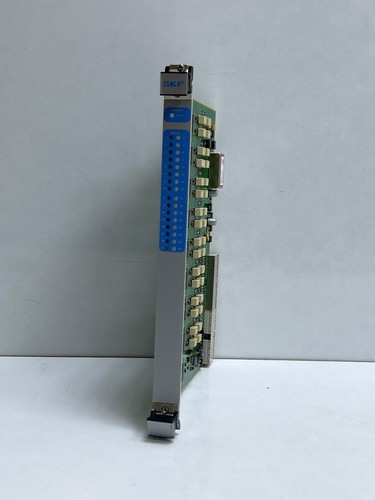

- Model Number: IMX-M 102E
- System Series: Multilog On-line System IMX-M
- Board Type: Relay Output Board
- Channel Count: 8 Independent relay channels
- Relay Type: Electromechanical (Dry contacts)
- Switching Voltage: Max 250V AC / 30V DC
- Communication: Internal system bus connection for IMX-M rack architecture
Product Datasheet
| Specification | Details |
|---|---|
| Model | IMX-M 102E |
| Part Number | CMON 2510 |
| Origin | Sweden |
| Relay Configuration | SPDT (Single Pole Double Throw) |
| Contact Rating | 5A @ 250V AC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Mounting | IMX-M Chassis Slot |
Application Fields
The IMX-M 102E provides the physical switching logic for machine protection:
- Automatic Shutdown: Interfacing with the IMX-M monitoring modules to trip machinery during high vibration or temperature events.
- Alarm Annunciation: Activating external beacons, sirens, or status lamps in a control room.
- PLC/DCS Interfacing: Sending discrete digital signals to a plant-wide control system to indicate machine status.
- Auxiliary Control: Managing the start/stop sequences of auxiliary lube oil pumps or cooling fans based on monitored conditions.
Product Instructions
- Safety: Before inserting the board, ensure the IMX-M rack power is isolated to prevent accidental relay triggering.
- ESD Protection: Handle the board by the front panel or edges only. Wear a grounded wrist strap to prevent damage to the logic circuits.
- Slot Insertion: Slide the board into its dedicated slot in the IMX-M 102 chassis and lock the retaining screws.
- Wiring: Use the pluggable terminal blocks provided at the rear of the rack. Ensure wire gauges are suitable for the 5A load rating.
- Configuration: Use the SKF @ptitude Observer software to map specific measurement alarms (Alert/Danger) to the individual relay outputs on the 102E.
Q&A
Q1: How many relays are on a single IMX-M 102E board? A1: Each 102E board provides 8 independent relay channels, which can be configured individually for different alarm conditions.
Q2: Can I use this board for safety-instrumented functions? A2: While the IMX-M is a machinery protection system, verify the specific SIL (Safety Integrity Level) rating in your system’s documentation if it is being used in a safety-critical loop.
Q3: What do the LEDs on the front of the 102E indicate? A3: The LEDs typically indicate the status of each relay (Energized/De-energized) and the overall “Health” or “OK” status of the board’s internal circuitry.
