Description

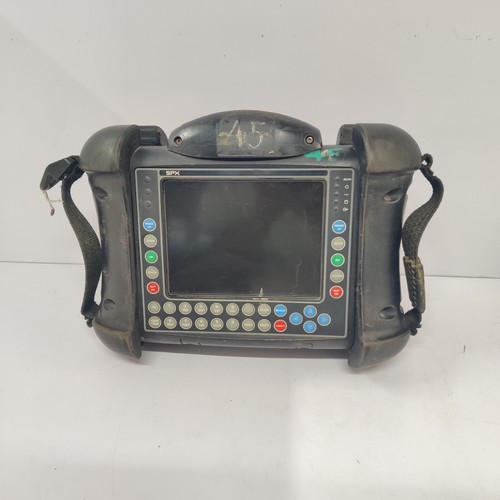

The SPX Teradyne I-view Ultra (Part No: 3564-0107-07) is a sophisticated, integrated diagnostic platform designed for advanced automotive testing and troubleshooting. This handheld diagnostic tool provides technicians with deep access to vehicle communication networks, sensor data, and control module diagnostics. It is engineered to bridge the gap between complex onboard computer systems and real-time maintenance workflows, allowing for rapid fault identification in engine management, transmission, braking, and body control modules.
Technical Specifications
💡 Part Number: 3564-0107-07
💡 Device Type: Integrated Automotive Diagnostic Tester
💡 Display: High-resolution color touchscreen interface
💡 Communication Protocols: OBD-II, CAN bus, K-Line, and manufacturer-specific diagnostic links
💡 Processor: Embedded high-speed diagnostic engine
💡 Battery: Rechargeable lithium-ion for field portability
💡 Operating System: Specialized automotive diagnostic OS
💡 Interface Ports: USB, Ethernet, and multi-pin vehicle diagnostic connectors
💡 Environmental Rating: Ruggedized housing for workshop and field use
💡 Country of Origin: United States / Global Manufacturing
Key Functional Features
- Comprehensive Diagnostics: Provides full read/write access to Diagnostic Trouble Codes (DTCs), enabling technicians to quickly isolate issues in complex vehicle systems.
- Real-Time Data Streams: Displays live sensor data (e.g., oxygen sensors, fuel trim, ignition timing) to monitor system performance under dynamic conditions.
- Bi-Directional Control: Allows for “active testing” where the technician can command specific actuators (e.g., fuel injectors, cooling fans) to verify their functionality independently.
- Modular Software: Supports vehicle-specific diagnostic packages, making the unit adaptable to evolving vehicle architectures and manufacturer protocols.
- Reporting Tools: Facilitates the export of diagnostic reports for maintenance record-keeping and customer documentation.
Recommended Accessories & Integration Components
🛠️ Vehicle Communication Interface (VCI) Module: Essential bridge for wireless or wired OBD-II connection.
🛠️ OBD-II Breakout Box: Used for physical signal testing and pin-out verification.
🛠️ Diagnostic Software Cartridges: Firmware updates for expanded vehicle model coverage.
🛠️ Ruggedized Carrying Case: For equipment protection during transport.
🛠️ External Power Supply/Adapter: Ensures unit remains powered during long diagnostic sessions.
🛠️ Data Transfer Cable: High-speed USB link for PC connectivity and software updates.
For technical manuals, software update procedures, or procurement information regarding the SPX Teradyne I-view Ultra 3564-0107-07, please visit the provided link.
