Description

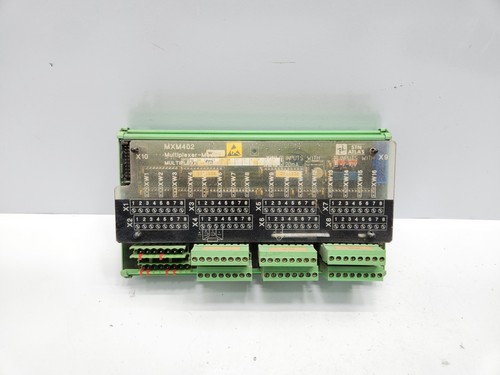

The STN Atlas MXM402 Multiplexer Module (Part Number: 271.130 442/D) is a specialized signal processing unit designed for high-availability communication and data acquisition systems. Originally manufactured for professional marine and industrial control environments, this module enables the transmission of multiple data streams over a single communication path, ensuring efficient data routing between sensors, controllers, and bridge instrumentation.
Technical Parameters
- Model: MXM402
- Part Number: 271.130 442/D
- Component Type: Multiplexer / Data Concentrator PCB
- System Compatibility: STN Atlas (now part of various maritime technology groups) integrated ship control systems.
- Function: Signal routing, protocol handling, and data multiplexing.
- Origin: Germany
Application Areas
- Navigation & Radar: Concentrating data from multiple navigational sensors into a centralized shipboard network.
- Integrated Bridge Systems (IBS): Managing data flow between disparate subsystems like alarms, steering, and engine telemetry.
- Industrial Automation: Streamlining communication in large-scale monitoring racks where cabinet space is limited.
Product Usage Instructions
- Safety & Handling: This module contains high-density logic circuits. Always handle using anti-static procedures (ESD-safe workstation/wrist strap).
- Installation: Ensure the equipment is powered down and the backplane connector is free of dust. Slide the MXM402 into the designated slot in the rack; ensure the locking mechanism is fully engaged to maintain a reliable connection to the system bus.
- Configuration: The module requires specific addressing (often set via onboard switches or software configuration) to identify itself within the multiplexed data bus. Verify that the address is unique and matches the system documentation.
- Validation: Monitor the module’s diagnostic LEDs. A normal state is indicated by stable activity lights. If LEDs are blinking in a pattern or are completely dark, cross-reference the manual for your specific revision (442/D).
Product Description
The MXM402 functions as a high-speed data manager. It takes various input channels—such as serial, analog, or digital signals—and packages them into a serial data frame for transmission to a host controller. Its design emphasizes low latency and fault tolerance, which is vital for real-time safety systems. By reducing the volume of cabling required, the multiplexer improves the reliability and maintainability of complex shipboard control architectures.
Protection & Environmental Parameters
- Enclosure: Designed for installation within ruggedized, ship-grade control cabinets (NEMA/IP-protected).
- Environment: Built for long-term reliability in environments with high humidity and salt-air exposure.
- Operating Temperature: 0°C to +55°C.
- Humidity: 10% to 90% relative humidity, non-condensing.
Frequently Asked Questions
- How can I diagnose a communication loss in this module? Check the “Data Link” status light. If it is inactive, verify the cable integrity between the multiplexer and the central node; if the cable is intact, the module itself may have suffered a logic failure.
- Is the 271.130 442/D interchangeable with other revisions? No. STN Atlas modules are often revision-dependent. The “442/D” suffix signifies a specific hardware build; ensure your replacement matches this exact identifier to maintain compatibility with your system firmware.
- Is this module field-repairable? Due to the specialized nature of the firmware and the complexity of the multilayer board, field repair is not recommended. Replacement is the standard industry procedure to maintain system certification.
- What precautions should I take against signal interference? Ensure that all communication cables are properly shielded and that the shield drain wire is terminated only at the designated ground point on the cabinet chassis to prevent ground loops.
