Description

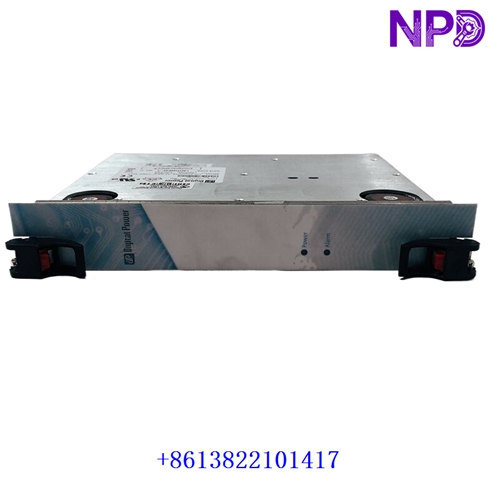

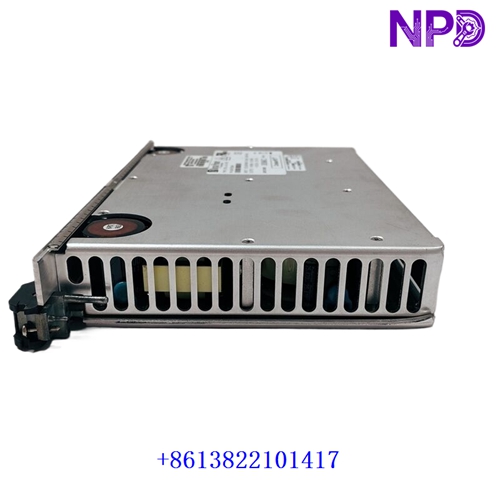

The Telkoor CPCI-AC-6U-500 (part number 900-7002-99) is a high-density, high-efficiency 6U CompactPCI (cPCI) Power Supply Unit manufactured by Telkoor Power Supplies.
Designed for high-reliability telecommunications, industrial automation, defense, and embedded computing systems, this hot-swappable module converts standard AC mains input into four tightly regulated DC outputs across the standard CompactPCI Positronic backplane interface.
Technical Specifications
| Parameter | Specification |
| Manufacturer | Telkoor Power Supplies |
| Model / Series | CPCI-AC-6U-500 |
| Part / Catalog Number | 900-7002-99 |
| Form Factor | 6U, 8-HP (Dual-Slot Width) CompactPCI Eurocard |
| Input Voltage Range | 90–264 V AC Universal Input (47–63 Hz) with Active PFC |
| Total Output Power | 500 Watts continuous power output |
| Output DC Voltage Rails | +5 V DC @ 60 A
+3.3 V DC @ 60 A +12 V DC @ 8 A -12 V DC @ 1.5 A |
| Efficiency | Typical >80% at full load |
| Connector Type | Positronic 47-Pin PICMG Standard Power Connector (P47) |
| Operating Temperature | -5°C to +55°C (100% load), derating up to +70°C |
Core Features & Operating Capabilities
- PICMG 2.11 Compliance: Built according to official CompactPCI power interface specifications, ensuring full interoperability with standard 6U cPCI backplanes and enclosures.
- Active Power Factor Correction (PFC): Integrated active PFC (>0.98 power factor) complies with EN61000-3-2 standards for clean mains power draw.
- N+1 Redundancy & Active Current Sharing: Features internal OR-ing diodes on positive output rails and active current sharing, enabling N+1 redundant parallel power architecture across multiple supply modules.
- Hot-Swap & Blind-Mate Connectors: Fitted with staggered pins on the P47 Positronic connector to support live insertion and extraction without resetting the system chassis.
- Comprehensive Circuit Protection: Onboard protection mechanisms include Over-Voltage Protection (OVP), Over-Current Protection (OCP), Over-Temperature Protection (OTP), and Short-Circuit Protection (SCP).
- Front Panel Indicators: Green status LEDs provide visual verification of AC Input OK and DC Output OK rail health.
