Description
1. Product Description
The TEWS Technologies TPMC815-11 is a single-width, 32-bit PCI Mezzanine Card (PMC) featuring an ARCNET communication interface for embedded computing and industrial automation systems. It uses an ARCNET controller to provide deterministic network communication between compatible embedded systems and industrial devices.
The TPMC815-11 features an isolated hybrid physical interface designed for communication over supported coaxial cable or twisted-pair media. It supports ARCNET data transfer rates up to 2.5 Mbps and network topologies such as star, tree, and bus. The module is suitable for legacy factory automation, industrial control, and embedded applications that require ARCNET connectivity.
The TPMC815-11 is a legacy, non-RoHS version. TEWS documentation identifies the TPMC815-11R as the RoHS-compliant version of the traditional hybrid interface model and records the -11R option as end-of-life in 2020. When sourcing a replacement, confirm the exact suffix, carrier-board compatibility, physical interface, and operating-system driver requirements.

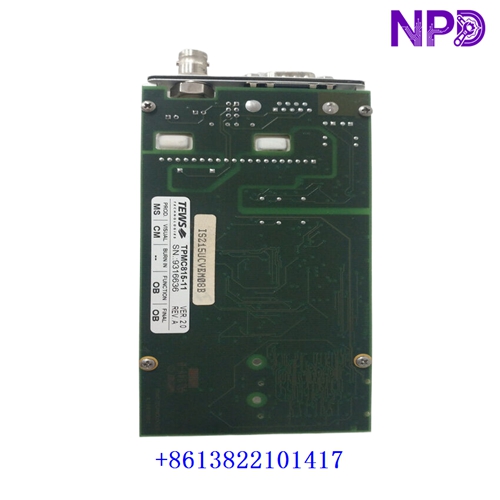

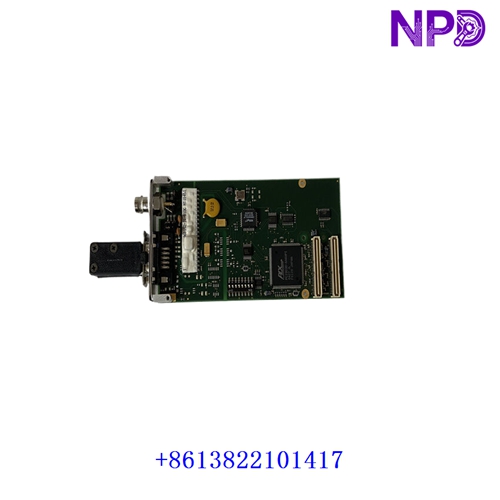

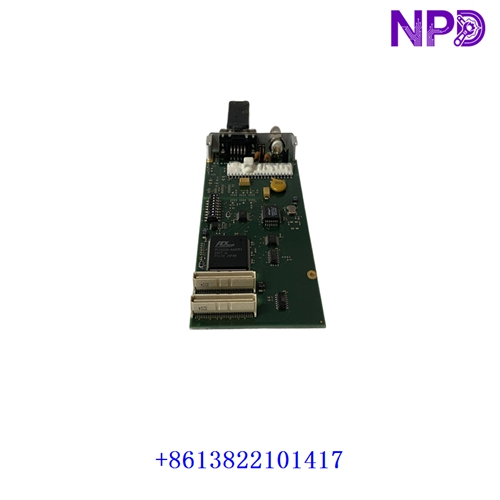

TPMC815-11
2. Product Parameters — Datasheet
Brand: TEWS Technologies
Model: TPMC815-11
Product Name: ARCNET PMC Communication Module
Product Series: TPMC815 ARCNET PMC
Product Type: Embedded Communication Controller
Main Function: ARCNET network communication
ARCNET Controller: SMSC/SMC COM20020
PCI Controller: PLX PCI9030, depending on hardware revision
Host Interface: 32-bit PCI Mezzanine Card (PMC)
PCI Compliance: PCI Revision 2.1
PCI Bus: 32-bit, 33 MHz
Physical Interface: Isolated traditional hybrid interface
Network Media: Supported coaxial cable or twisted-pair connection, depending on configuration
Maximum Data Rate: 2.5 Mbps for the TPMC815-11 interface
Network Topologies: Star, tree, and bus
External Connector: DB9 male and BNC interface, according to the documented TPMC815-11 configuration
Board Dimensions: Approximately 149 × 74 mm
Power Requirements: Consult the manual for the exact hardware revision; the documented TPMC815-11 version uses onboard PMC-supplied power
Weight: Approximately 72 g
Operating Temperature: Verify against the specific revision’s technical documentation
Place of Manufacture: Germany, where TEWS Technologies GmbH is based; verify the individual unit’s label
Country of Origin: Confirm from the product label
Product Status: Legacy model; availability depends on surplus inventory
RoHS Status: Non-RoHS version
Discontinued: The TPMC815-11R RoHS variant was recorded as end-of-life in 2020; verify lifecycle status for the exact TPMC815-11 version
Software Support: Operating-system-specific TDRV007 software packages were listed for supported systems, including Linux, VxWorks, Windows, QNX, and Integrity
Compatibility: Requires a compatible PMC carrier board, supported software driver, and matching ARCNET physical interface
3. Recommended TEWS Technologies Models
The following TEWS products are related embedded communication, fieldbus, and I/O modules. They serve different functions and should not be treated as direct replacements without checking interface and application requirements.
- TEWS TPMC815-11R — RoHS-compliant version of the traditional hybrid ARCNET interface; documented as an end-of-life order option.
- TEWS TPMC815-21R — ARCNET PMC module with an isolated RS-485 interface and transfer rates up to 5 Mbps.
- TEWS TPMC815-21 — Non-RoHS version of the isolated RS-485 ARCNET configuration.
- TEWS TPMC810-10R — PMC module providing two isolated CAN bus interfaces.
- TEWS TPMC816-10R — PMC module with two isolated CAN bus interfaces.
- TEWS TPMC816-11R — PMC module providing one isolated CAN bus interface.
- TEWS TPMC821-10R — PMC INTERBUS master module for compatible industrial fieldbus systems.
- TEWS TPMC851-10R — Multifunction I/O module with analog input/output, digital I/O, and counter functions.
- TEWS TPMC151 — PMC resolver and LVDT/RVDT-to-digital converter for position-feedback applications.
- TEWS TPMC700 — PMC module family; check the specific variant for its interface and application.
- TEWS TPMC815-DOC — User documentation for the TPMC815 ARCNET module family.
- TEWS TPMC815-ED — Engineering documentation package for supported TPMC815 variants.
- TEWS TDRV007-SW-82 — Linux software support package for compatible TPMC815 hardware.
- TEWS TDRV007-SW-42 — VxWorks software support package for compatible TPMC815 hardware.
- TEWS TDRV007-SW-65 — Windows software support package listed for compatible TPMC815 hardware.
For replacement selection, prioritize the exact TPMC815-11 model and verify the ARCNET interface type, cable medium, PMC carrier requirements, and software driver support before purchasing.
