Description
Product Overview
The TEWS TPMC815-11 is a high-performance PMC (PCI Mezzanine Card) communication module designed for industrial control, embedded computing, and real-time automation systems. It is engineered to deliver stable data transmission, deterministic performance, and seamless integration into PMC-compatible carrier boards. The module is widely used in demanding environments where reliability, low latency, and long-term availability are critical.
As an industrial-grade solution, the TPMC815-11 supports continuous operation and is suitable for both legacy system upgrades and new embedded designs. Its robust hardware architecture ensures consistent performance in mission-critical applications.

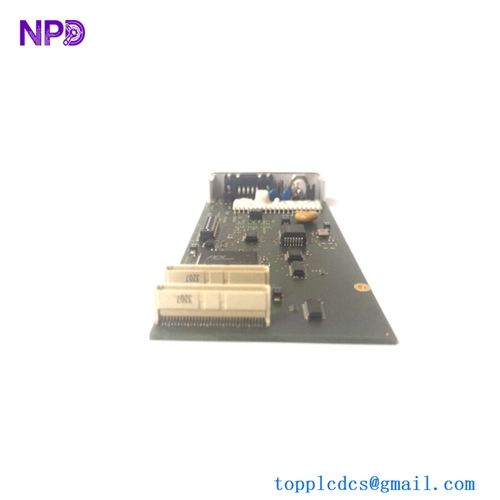

TEWS TPMC815-11
Product Parameters (Typical)
- Form Factor: PMC (PCI Mezzanine Card)
- Bus Interface: 32-bit PCI, 33/66 MHz
- Communication Interface: High-speed serial communication channels
- Data Transfer Mode: Bus mastering, DMA support
- Operating Voltage: Supplied via PMC connector
- Operating Temperature: Industrial temperature range
- Cooling: Conduction or airflow-assisted cooling via carrier board
- Mounting: PMC slot on compatible carrier boards
- Compliance: Designed for industrial and embedded system standards
Product Datasheet (Technical Summary)
- High-reliability PMC architecture
- Optimized for real-time data exchange
- Low-latency communication performance
- Stable operation under continuous load
- Suitable for long-life industrial systems
- Hardware-level error detection and protection
Country of Origin
Germany
TEWS TPMC815-11
Application Areas
- Industrial automation and process control systems
- Embedded real-time computing platforms
- Power generation and energy management systems
- Transportation and railway control equipment
- Aerospace and defense embedded systems
- Test benches and industrial simulation platforms
Product Usage Instructions
- Ensure the carrier board fully supports the PMC standard and electrical requirements.
- Power off the system before installation or removal of the module.
- Insert the TPMC815-11 firmly into the PMC slot, ensuring correct alignment.
- Secure the module using the designated mounting screws.
- Apply system power and verify that the operating system detects the module correctly.
- Configure communication parameters through the system software or driver interface.
Product Technical Description
The TPMC815-11 features a carefully optimized hardware design that balances performance, stability, and compatibility. Its PMC interface allows tight integration with industrial CPUs, enabling high-speed data communication without compromising deterministic system behavior.
Advanced bus mastering and DMA capabilities reduce CPU load while ensuring efficient data flow. The module is designed for harsh industrial environments, offering resistance to electrical noise, thermal stress, and long-term operational fatigue.
The TPMC815-11 is especially suitable for systems requiring continuous uptime and predictable communication timing.
Frequently Asked Questions (Q&A)
Q1: Is the TPMC815-11 compatible with standard PMC carrier boards?
A1: Yes, it is designed to operate with standard PMC-compliant carrier boards.
Q2: Can the module operate continuously in industrial environments?
A2: Yes, it is engineered for 24/7 industrial operation.
Q3: Does the TPMC815-11 support real-time applications?
A3: Yes, its low-latency design makes it suitable for real-time systems.
Q4: Is special cooling required?
A4: Cooling depends on system design; standard industrial airflow or conduction cooling is sufficient.
Q5: Can it be used in legacy systems?
A5: Yes, it is suitable for both legacy upgrades and new designs.
Product Keyword Link
Learn more about TEWS TPMC815-11 at:
TEWS TPMC815-11
