Description
Product Description
The TRICONEX 2301 is a digital input (DI) baseplate used in Trident safety instrumented systems. It provides the physical connection and field-wiring interface for compatible digital input modules, supporting the acquisition of discrete signals from field contacts and safety devices. The baseplate is a hardware interface component rather than a standalone controller. Before ordering, verify the complete part number, system family, and installed input-module configuration, as model 2301 references can be described differently across product listings.

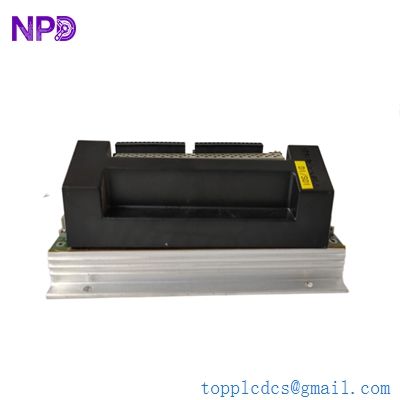

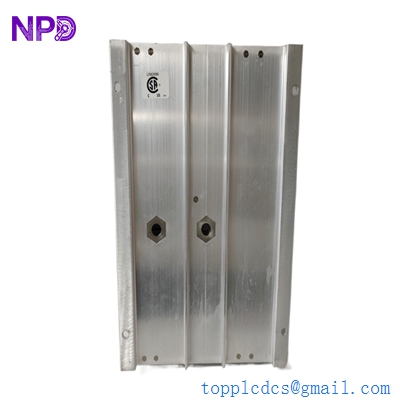

TRICONEX 2301
Product Parameters and Datasheet
| Parameter | Details |
|—|—|
| Brand | TRICONEX |
| Model | 2301 |
| Series | Trident Safety Instrumented System |
| Product Name | Digital Input Baseplate |
| Product Type | Digital input field-termination baseplate |
| Function | Field wiring and interface for compatible DI modules |
| Compatible Module | Trident Model 3301 digital input module; verify hardware revision |
| Input Signal | Determined by the installed DI module and field wiring configuration |
| Architecture | Used within a fault-tolerant safety control system |
| Power Requirements | Depends on the associated module and field supply configuration |
| Dimensions | Not confirmed; consult the applicable installation drawing |
| Weight | Not confirmed |
| Place of Manufacture | Not confirmed; check product label |
| Country of Origin | Not confirmed; check product label |
| Product Status | Confirm whether new, surplus, open-box, or used |
| Discontinued | Current lifecycle status not confirmed |
Recommended Related TRICONEX Models
1. 3301 — Trident digital input module.
2. 3401 — Trident digital output module.
3. 2401 — Digital output baseplate for compatible Trident configurations.
4. 2402 — Digital output baseplate variant; verify application.
5. 2101 — Trident main processor baseplate.
6. 3101 — Trident main processor module.
7. 3201 — Trident communication module.
8. 2201 — Communication module baseplate.
9. 3351 — Analog input module.
10. 2351 — Analog input baseplate.
11. 3361 — Analog input/digital input module.
12. 2361 — Analog input/digital input baseplate.
13. 3481 — Analog output module.
14. 2481 — Analog output baseplate.
15. 3805E — Triconex analog input module; verify system compatibility.
Compatibility Note
Confirm that the required part is the Trident 2301 digital input baseplate, not a similarly numbered component or a listing for another Triconex system family. Match the module, terminal arrangement, field voltage, and hardware revision before installation.
