1. Product Description

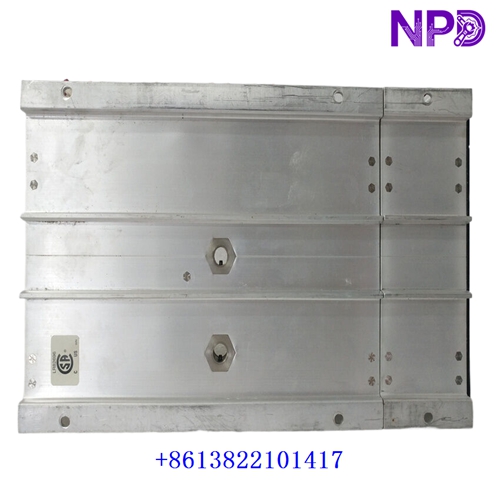

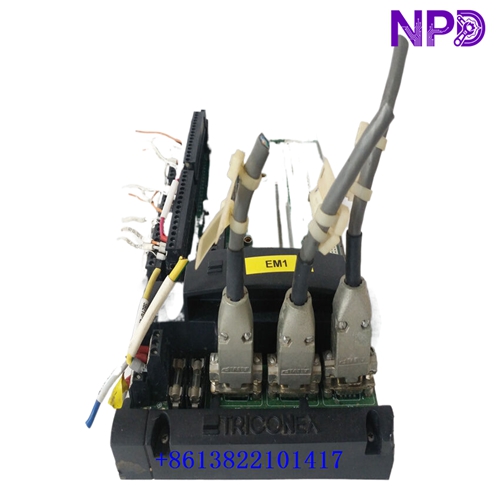

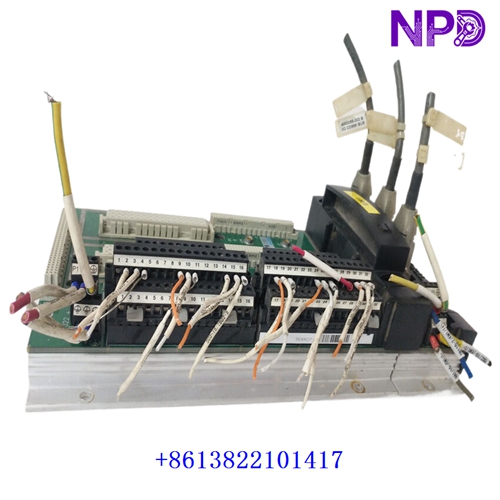

The Triconex 2381 is a pulse input (PI) baseplate used in Trident safety and control systems. It provides field wiring connections and signal conditioning for compatible pulse input modules, supporting the acquisition of pulse signals from speed sensors, proximity probes, and other frequency-generating devices. Typical applications include turbine speed monitoring, rotational measurement, and industrial equipment protection. The baseplate works with the compatible Model 3381 pulse input module. Verify the complete assembly and system generation before ordering, as the 2381 is a baseplate rather than the pulse input electronics module itself.
TRICONEX 2381
2. Product Parameters and Datasheet
– Brand: Triconex
– Model: 2381
– Series: Trident Safety and Control System
– Product Name: Pulse Input Baseplate
– Product Type: Pulse Input Field-Termination Baseplate
– Compatible Module: Model 3381 Pulse Input Module
– Main Function: Field wiring termination and pulse signal interfacing
– Typical Applications: Turbine speed measurement, frequency monitoring, and equipment protection
– Input Frequency Range: Depends on the installed Model 3381 module; up to 32 kHz in the documented configuration
– Field Connections: Sensor, field power, configuration, and resistor connections; refer to the wiring diagram
– Termination / Pull-Up Resistors: Baseplate configurable, depending on the application
– Fault Current: 130 mA typical; 200 mA maximum for the specified field short-to-ground condition
– Power Requirements: Depends on field supply and installed module configuration
– Dimensions: Confirm from the applicable Trident installation manual
– Weight: Verify from the supplied unit and packaging
– Country of Origin: Verify from the product label and shipping documents
– Product Status: Legacy system spare part; confirm availability
– Discontinued: Current lifecycle status not confirmed
3. Recommended Triconex Models
– 3381 — Compatible pulse input module for the 2381 baseplate.
– 2381 — Pulse input baseplate, exact model.
– 2401 — Digital output baseplate.
– 2402 — High-voltage digital output baseplate.
– 2351 — Analog input baseplate.
– 2352 — Analog input baseplate for supported RTD, thermocouple, or current input configurations.
– 2361 — Analog/digital input baseplate.
– 2451 — Solid-state relay output baseplate.
– 2281 — I/O extender module kit.
– 3008 — Tricon main processor module for compatible system generations.
– 3009 — Tricon power supply module for supported systems.
– 3503E — Tricon digital input module.
– 3625 — Tricon digital output module.
– 3805E — Tricon analog input module.
– TriStation 1131 — Trident system programming and configuration software family; verify version compatibility.
Important: Model 2381 is the pulse input baseplate, while Model 3381 is the pulse input module. Confirm the module, baseplate, wiring arrangement, and system generation before replacement.
