Description
Product Description

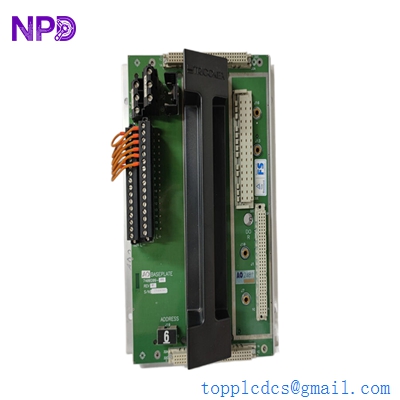

The TRICONEX 2481 is an analog output (AO) baseplate designed for compatible Trident safety instrumented systems. It provides the field-wiring termination and electrical interconnection for the associated analog output module, supporting analog control signals to field devices such as control valves and positioners. The 2481 is a baseplate assembly, not the analog output electronics module itself. It is commonly paired with the Trident Model 3481 Analog Output Module. Verify the system platform, terminal configuration, and exact part number before ordering.
TRICONEX 2481
Product Parameters and Datasheet
| Parameter | Details |
|—|—|
| Brand | TRICONEX |
| Model | 2481 |
| Series | Trident Safety Instrumented System |
| Product Name | Analog Output Baseplate |
| Product Type | Analog output I/O baseplate |
| Compatible Module | Model 3481 Analog Output Module; verify system configuration |
| Output Signal | Determined by the installed analog output module |
| Output Configuration | Four-point analog output baseplate arrangement |
| Field Wiring | Direct termination |
| Field Power | External DC loop power required according to module and load configuration |
| Dimensions | Refer to the applicable Trident installation drawing |
| Weight | Not confirmed |
| Place of Manufacture | Not confirmed; check product label |
| Country of Origin | Not confirmed; check product label |
| Product Status | Confirm whether new, surplus, open-box, or used |
| Discontinued | Current lifecycle status not confirmed |
Recommended Related TRICONEX Models
1. 3481 — Analog Output Module for compatible 2481 baseplates.
2. 3482 — High-Current Analog Output Module compatible with the 2481 baseplate.
3. 2483 — Analog Output HART Baseplate.
4. 2483A — Analog Output HART Baseplate for hazardous-location applications.
5. 2480A — Analog Output Baseplate for hazardous-location applications.
6. 2301 — Digital Input Baseplate.
7. 3301 — Digital Input Module.
8. 2401 — Digital Output Baseplate.
9. 3401 — Digital Output Module.
10. 2351 — Analog Input Baseplate.
11. 3351 — Analog Input Module.
12. 2352 — Analog Input External Termination Panel Baseplate.
13. 2361 — Analog Input/Digital Input Baseplate.
14. 3361 — Analog Input/Digital Input Module.
15. 2381 — Pulse Input Baseplate.
Compatibility Note
The 2481 is the baseplate; Model 3481 is the corresponding standard analog output module. The Model 3482 high-current analog output module is also compatible with the 2481. Confirm the required system family, field wiring, and module configuration before replacing safety-system hardware.
