Description
Product Description
The TRICONEX 3101 Main Processor Module is a central processing component for Triconex Trident Version 1.2 safety and control systems. It executes application logic, coordinates I/O processing, manages system diagnostics, and supports communication between the controller and associated modules. It is designed for industrial safety applications such as emergency shutdown systems, process interlocks, and other safety-critical control functions.
The 3101 uses Motorola MPC860 32-bit processors and supports dedicated application and I/O processing functions. Its memory architecture includes Flash PROM, DRAM, and nonvolatile memory for application storage, execution, and retentive variables. This is a legacy controller component, so system generation, firmware revision, processor configuration, and replacement compatibility should be checked before installation.

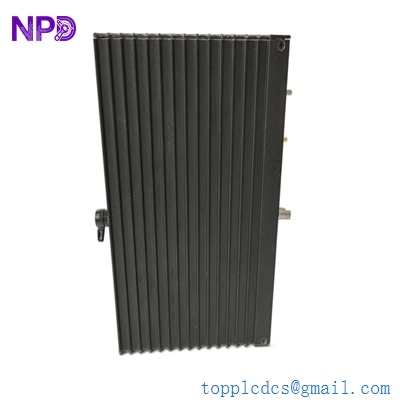

TRICONEX 3101
Product Parameters and Datasheet
Brand: TRICONEX
Model: 3101
Series: Trident Version 1.2
Product Name: Main Processor Module
Product Type: Safety System Processor Module
Application Processor: Motorola MPC860, 32-bit, 50 MHz
I/O Processor: Motorola MPC860, 32-bit, 50 MHz
Flash PROM: 6 MB, CRC-protected
DRAM: 16 MB for application processing and 16 MB for I/O processing
NVRAM: 8 KB, CRC-protected
Shared Memory: 128 KB
Diagnostic Bus: 2 Mbps HDLC
Communication Interfaces: TriStation Ethernet and serial communication interfaces through the applicable baseplate; verify exact port configuration
Nominal Logic Supply: 24 VDC
Operating Voltage Range: 19.2–30 VDC, with specified AC ripple allowance
Maximum Logic Power Consumption: 8 W
Dimensions: Verify against the applicable hardware installation documentation
Weight: Approximately 1.5 kg
Place of Manufacture: Verify from the product label and documentation
Country of Origin: Verify from the product label
Product Status: Legacy industrial automation spare part; confirm actual stock condition
Discontinued: Current lifecycle status requires confirmation
Compatibility Note: Confirm that the target controller uses the correct Trident hardware generation and that the replacement processor matches the existing system configuration, firmware, and processor set. Safety-system modifications must follow approved engineering and commissioning procedures.
Recommended TRICONEX Models
1. 3008 — Triconex main processor for compatible Tricon control systems.
2. 3008N — Main processor variant for applicable Tricon system configurations.
3. 3101S2 — Related main processor variant; verify hardware generation and configuration.
4. 3007 — Triconex main processor model for selected legacy systems.
5. 3006 — Triconex processor module for compatible controller configurations.
6. 3501E — Digital input module for supported Tricon systems.
7. 3503E — Digital input module for compatible safety-control applications.
8. 3511 — Pulse input module for supported Tricon configurations.
9. 3625 — Digital output module for compatible Tricon systems.
10. 3700A — Analog input module for supported Tricon platforms.
11. 3721 — Analog input module for compatible Tricon configurations.
12. 3805E — Analog output module for supported Tricon systems.
13. 4351B — Communication module for compatible Tricon architectures.
14. 8312 — Triconex power supply module for supported chassis configurations.
15. 8311 — Triconex power supply module for compatible systems.
The recommended models are related Triconex components, not guaranteed direct replacements. Confirm the exact controller family and hardware revision before selecting a substitute.
