Description
1. Product Description
The Triconex 3201 is a communication module for the Trident safety and control system. It provides serial and Ethernet connectivity between the Trident controller and external systems, including distributed control systems (DCS), operator interfaces, engineering workstations, and compatible Modbus devices. The module supports data exchange and engineering access while keeping communication functions separate from the main safety-logic processor. It includes three serial interfaces configurable for RS-232 or RS-485 and two Ethernet ports. Confirm the communication baseplate, firmware, protocol settings, and system revision before installation or replacement.

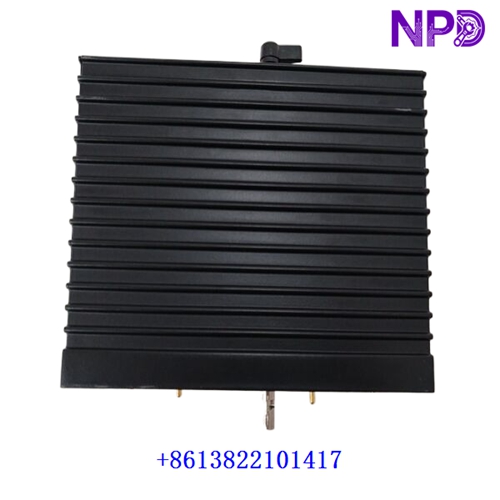

TRICONEX 3201
2. Product Parameters and Datasheet
– Brand: Triconex
– Model: 3201
– Series: Trident Safety and Control System
– Product Name: Communication Module
– Module Type: Serial and Ethernet Communication Interface
– Serial Ports: 3 optically isolated ports
– Serial Interface: Selectable RS-232 / RS-485
– Serial Protocols: Modbus Master / Slave, subject to configuration
– Serial Baud Rates: 1,200 to 57,600 bps
– Ethernet Ports: 2
– Ethernet Services: TCP/IP, UDP/IP, TSAA, TriStation, and supported Triconex communication services
– Nominal Supply Voltage: 24 V DC
– Specified Operating Voltage: 19.2–30 V DC
– Maximum Logic Power: 8 W without optional media adapter units; verify system configuration
– Installation: Compatible Trident communication baseplate
– Maximum Modules: Up to two communication modules per controller on a supported communication baseplate
– Applications: DCS/SCADA connectivity, controller communication, and engineering access
– Dimensions: Approx. 220 × 169 × 44 mm reported by suppliers; verify exact assembly and measurement method
– Weight: Supplier listings vary; confirm actual module and packaging weight
– Country of Origin: Verify from product label and shipping documents
– Product Status: Legacy Trident hardware; confirm availability and lifecycle status
3. Recommended Triconex Models
– 3101 — Trident main processor module.
– 3201 — Trident communication module, exact model.
– 3008 — Tricon main processor for compatible Tricon systems.
– 3009 — Tricon main processor variant; verify system compatibility.
– 8310 — Tricon power supply module for supported chassis.
– 8311 — Tricon power supply variant; verify configuration.
– 8312 — Tricon power supply variant for compatible systems.
– 3503E — Tricon digital input module.
– 3625 — Tricon digital output module.
– 3700A — Tricon analog input module.
– 3805E — Tricon analog input module.
– 4351B — Tricon communication module for compatible Tricon systems.
– 3604E — Tricon digital output module; confirm hardware generation.
– 2381 — Trident pulse input baseplate; verify compatibility with the intended module.
– TriStation 1131 — Triconex engineering and configuration software family; version compatibility must be checked.
Before ordering, verify the 3201 part number, compatible communication baseplate, serial-port mode, Ethernet requirements, and controller generation. The 3201 is a communication module, not the main safety processor.
