1. Product Description
The Triconex 3401 is a 16-point digital output module for the Trident safety and control system. It provides 24 V DC discrete outputs for controlling field devices such as relays, solenoids, and other compatible industrial loads. The module uses triple modular redundancy (TMR) and a two-out-of-three voting architecture to help maintain safe output operation in the presence of faults. Continuous output diagnostics monitor channel and field-output conditions, including loss of field power and output faults. The 3401 is designed for installation on a compatible digital output baseplate, such as Model 2401. Verify field load requirements, wiring, and system compatibility before installation.

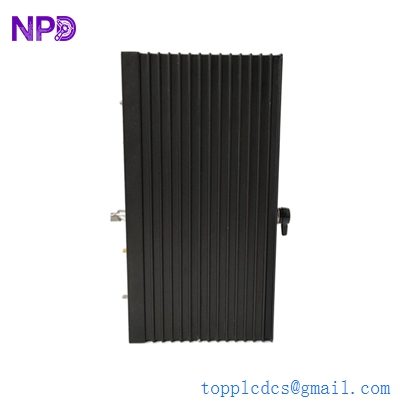

TRICONEX 3401
2. Product Parameters and Datasheet
– Brand: Triconex
– Model: 3401 / DO3401
– Series: Trident Safety and Control System
– Product Name: 16-Point Digital Output Module
– Output Type: Commoned 24 V DC digital outputs
– Number of Output Points: 16
– Nominal Output Voltage: 24 V DC
– Operating Voltage Range: 15–30 V DC
– Absolute Maximum Output Voltage: 33 V DC
– Switching Current: Less than 4.8 A, self-limiting; 3 A typical as specified
– Carry Current: More than 0.7 A, self-limiting; 1.5 A typical under specified conditions
– Off-State Leakage Current: Less than 1 mA
– On-State Voltage Drop: Less than 1.0 V DC at 1.5 A
– Diagnostics: Output voter diagnostics, field-power monitoring, and output fault detection
– Diagnostic Glitch Duration: 500 μs typical; 2 ms maximum
– Loopback Scan Time: Less than 1 ms for all 16 points
– Isolation: Minimum 500 V DC functional-to-protective earth; minimum 800 V DC functional-to-functional earth (logic)
– Compatible Baseplate: Model 2401; other configurations depend on the application
– Power Requirements: 24 V DC field supply; confirm chassis and field-power specifications
– Dimensions: Verify against the applicable Trident hardware manual
– Weight: Verify against the supplied module and packaging
– Country of Origin: Confirm from product label and shipping documents
– Product Status: Legacy Trident spare part; confirm current availability
– Discontinued: Current lifecycle status not confirmed
3. Recommended Triconex Models
– 3401 — 16-point digital output module, exact model.
– 3411 — Digital output module variant; verify voltage and load requirements.
– 2401 — Digital output baseplate for typical 3401 applications.
– 2402 — Digital output baseplate for applicable external termination configurations.
– 3301 — 32-point, 24 V DC digital input module.
– 3501E — Tricon digital input module for compatible systems.
– 3503E — Tricon digital input module.
– 3625 — Tricon digital output module.
– 3664 — Tricon digital output module; verify system generation.
– 3700A — Tricon analog input module.
– 3805E — Tricon analog input module.
– 3351 — Trident 4–20 mA analog input module.
– 3481 — Trident 4–20 mA analog output module.
– 3482 — Trident analog output module with configurable output ranges.
– 3101 — Trident main processor module.
Before ordering, confirm the 3401 model, compatible baseplate, field supply, load current, and system generation. Safety-system replacement should follow the approved maintenance and validation procedures for the installed application.
