Description
The Triconex 3503E is a high-density Digital Input (DI) module designed for use within the Tricon Triple Modular Redundancy (TMR) system. It is specifically engineered for safety-critical applications, providing 32 isolated input channels that operate at 24V DC. As part of the Tricon safety instrumented system (SIS), the 3503E ensures maximum reliability by utilizing three independent paths of input signal processing. Each signal is voted upon by the main processors to ensure that a single hardware failure does not compromise the safety or availability of the process. This module is widely recognized for its robust diagnostics and ability to detect both internal circuitry faults and field-side wiring issues.
Technical Specifications and Datasheet
Model Number: 3503E Product Series: Tricon TMR System Module Type: Digital Input Module (High Density) Input Channels: 32 Channels, isolated Nominal Voltage: 24V DC Input Voltage Range: 20–36V DC Current Consumption: 10 mA per channel at 24V DC Point Isolation: 1500V DC (Sustainable) Dimensions: 400 mm x 30 mm x 300 mm Weight: 1.15 kg Country of Origin: USA Standard Mounting: Tricon I/O Chassis Slot
Application Fields
The 3503E is essential for industries where safety and uptime are the highest priorities, including:
- Emergency Shutdown (ESD) Systems: Monitoring critical push buttons and limit switches in refineries.
- Fire and Gas (F&G) Detection: Interfacing with flame, smoke, and gas detectors in hazardous areas.
- Burner Management Systems (BMS): Supervising flame scanners and fuel valve positions in industrial boilers.
- Nuclear Power: Implementing redundant safety logic for reactor cooling and containment monitoring.

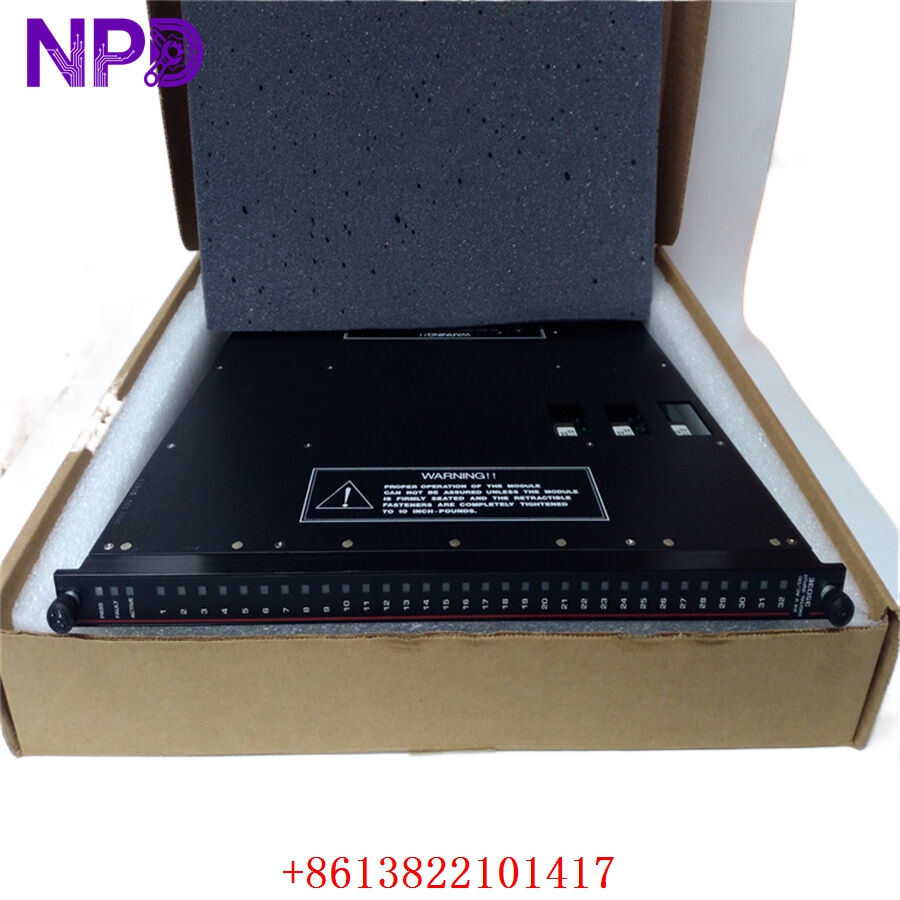

TRICONEX 3503E

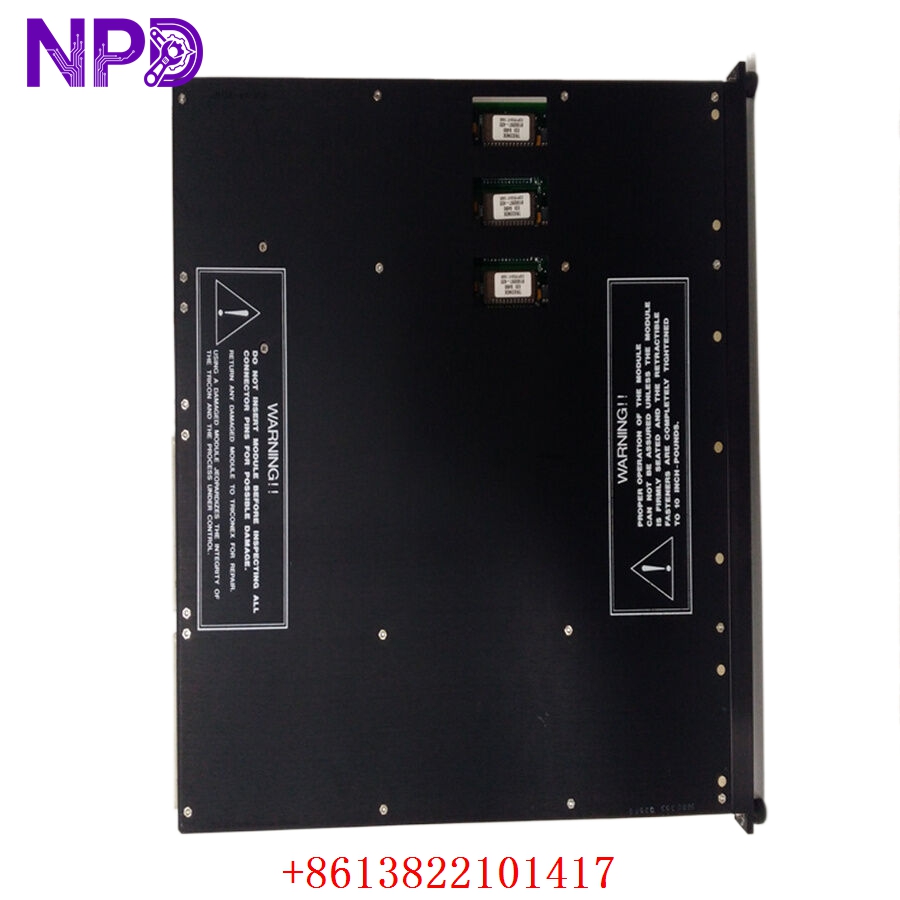

TRICONEX 3503E

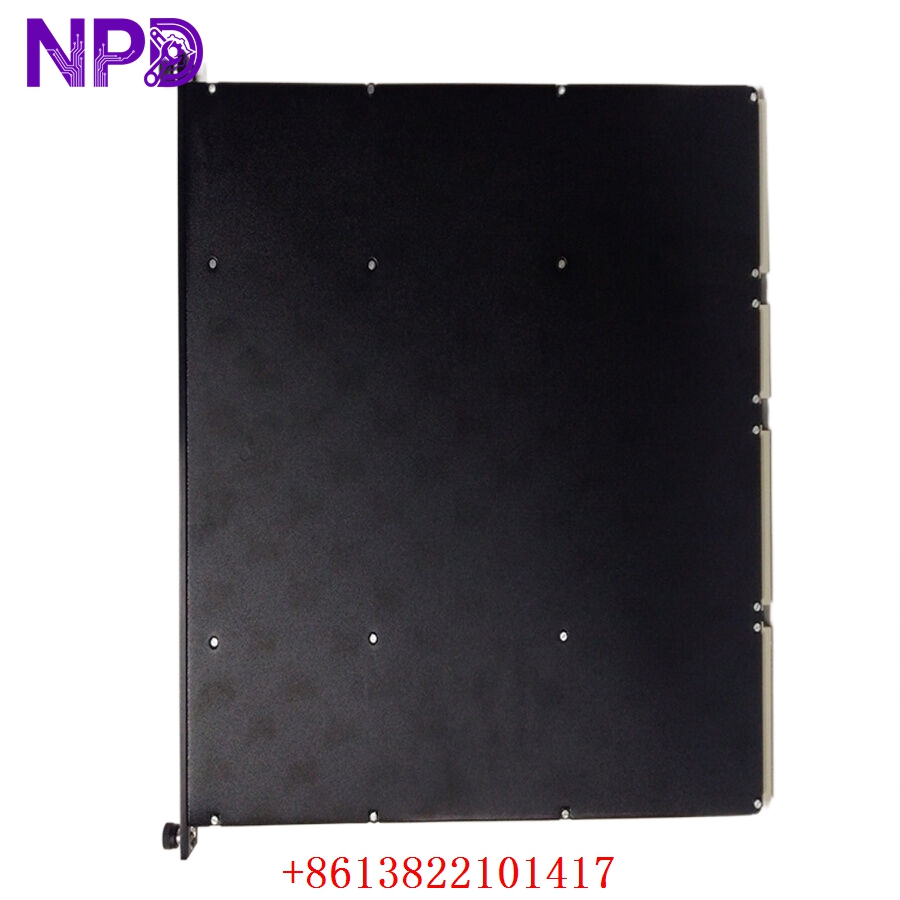

TRICONEX 3503E
TRICONEX 3503E
Product Instructions and Usage
The 3503E module must be installed in a standard Tricon I/O chassis. It supports “Hot-Replacement,” allowing it to be plugged into a spare slot or replaced while the system is online without interrupting the process. Before installation, ensure the external termination panel (ETP) is correctly wired to the 24V DC field devices. The module communicates with the main processors via the TriBus backplane. During operation, the “PASS” LED indicates the module has passed its internal self-tests, while the “FAULT” LED signals a hardware malfunction. Configuration and channel mapping are performed using the TriStation 1131 software environment.
Common Questions and Answers (Q&A)
What does the “E” in 3503E signify? The “E” typically denotes an “Enhanced” version or specific revision designed for broader environmental compliance and improved internal diagnostics compared to the original 3503 model.
How does the TMR architecture benefit the 3503E? It processes every input signal through three separate legs. If one leg fails, the other two continue to provide accurate data, allowing the system to remain online while the fault is reported.
Can I use this module for AC input signals? No, the 3503E is strictly designed for 24V DC signals. Using AC voltage will damage the module’s input circuitry.
What is the purpose of the 1500V isolation? It protects the internal system electronics from external electrical surges, lightning strikes, or ground loops that may occur in the field wiring.
Does this module require a separate termination assembly? Yes, the 3503E connects to the field wiring via a dedicated Triconex External Termination Panel (ETP) and an interface cable.
