Product Introduction

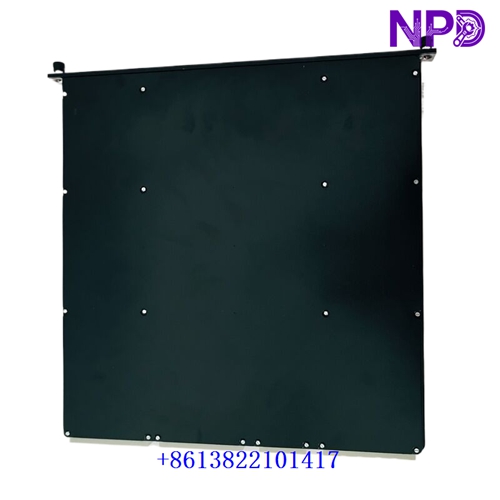

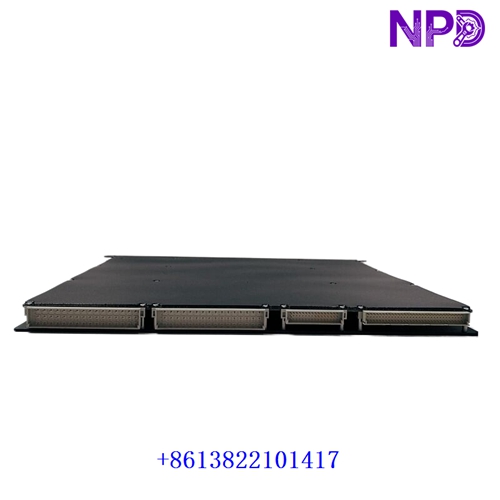

⚙️ Product: 3503EC1 / 3503E
🏷️ Brand: TRICONEX
🛡️ System: Tricon Safety Instrumented System
🔧 Product Type: TMR Digital Input Module
The TRICONEX 3503EC1 is associated with the 3503E TMR Digital Input Module used in Tricon safety systems. It provides 32 digital input points, arranged in groups of eight, and accepts nominal 24 VAC/VDC field signals. The module uses triplicated input processing for fault-tolerant safety applications.
🛡️ Each input channel is independently monitored, with diagnostics and optical isolation between field wiring and the control system. The 3503E also includes self-test functionality for detecting certain stuck-ON input conditions, making it suitable for safety-critical digital signal acquisition.
🔌 Before replacement, verify the exact module marking, terminal arrangement, Tricon system version, field voltage, termination assembly, and safety configuration. The 3503E is specifically documented for 24 VAC/VDC applications and is not recommended for use with shunt-diode intrinsic-safety barriers; the Tricon documentation recommends 3505E for that application.
Product Datasheet
🔹 Model: 3503E
🔹 Ordering/Marking: 3503EC1
🔹 Brand: TRICONEX / Invensys
🔹 Product Type: TMR Digital Input Module
🔹 Number of Inputs: 32 points
🔹 Input Arrangement: Groups of 8
🔹 Nominal Input Voltage: 24 VAC/VDC
🔹 Recommended Input Range: 20–42.5 VDC
🔹 Maximum Input Voltage: 42.5 VAC/VDC
🔹 Input Frequency: DC or 47–63 Hz
🔹 Input Delay: <8 ms OFF-to-ON / <15 ms ON-to-OFF
🔹 Input Impedance: >1.25 kΩ nominal
🔹 Point Isolation: 1,000 VAC minimum / 1,500 VDC minimum
🔹 Logic Power: <10 W
🔹 Color Code: Dark Red
🔹 Mounting: Tricon Chassis
🔹 Weight: Approx. 2.05 kg*
🔹 Country of Origin: USA*
The core electrical specifications above are from Tricon system documentation. Published supplier data lists approximately 2.05 kg for the module, while packaging/shipping weights can be substantially higher.
Typical Applications
🛡️ Safety Instrumented Systems
🚨 Emergency Shutdown Systems
🏭 Process Safety Control
🛢️ Oil & Gas Facilities
⚡ Power Generation
🧪 Chemical and Petrochemical Plants
🔥 Critical Digital Field Signal Monitoring
Installation & Use
🛠️ Check the 3503EC1/3503E module identification, Tricon chassis compatibility, termination panel, field voltage, and I/O configuration before installation.
🔌 Power and field wiring should be handled according to the approved Tricon installation procedure. Verify all terminal connections and ensure the module is correctly keyed and seated in the configured chassis position.
📊 After startup, check the PASS, FAULT, and ACTIVE indicators and verify all 32 input points through the Tricon diagnostic system. Confirm that the three input channels report consistent field-state information.
⚠️ Because this is a safety-system I/O module, perform the required loop checks, diagnostic verification, and functional safety testing before returning the SIS or ESD system to service.
