Description
The Triconex 3503EN is a high-density, 24 VDC Digital Input (DI) module designed for use in the Tricon v9, v10, and v11 Triple Modular Redundant (TMR) safety instrumented systems. The “EN” designation typically indicates an “Enhanced” version or a module that is conformally coated for superior protection in harsh industrial environments.
Product Parameters (Datasheet)
- Model Number: 3503EN
- Input Type: Digital Input (TMR)
- Voltage Requirement: 24 VDC (Nominal)
- Voltage Range: 20 to 36 VDC
- Number of Points: 32 points, non-isolated
- Current Consumption: Typically 6.6 mA per point at 24 VDC
- Logic Levels: * Off State: < 5 VDC
- On State: > 15 VDC
- Self-Test Frequency: Every 500 ms (Typical for TMR diagnostics)
- Status Indicators: LED diagnostics for Pass, Fault, and Active status for each point
- System Compatibility: Tricon CX and High-Density Controller racks

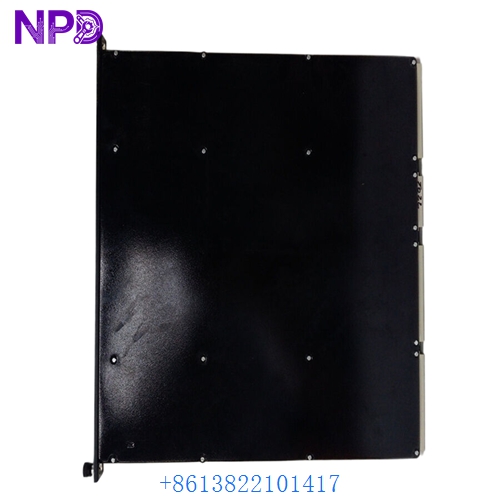

TRICONEX 3503EN
TRICONEX 3503EN
TRICONEX 3503EN
Country of Origin
This safety-critical module is engineered and manufactured by Schneider Electric (Triconex) in the USA.
Application Fields
The 3503EN is a core component in Safety Instrumented Systems (SIS) and is utilized in high-integrity environments:
- Emergency Shutdown (ESD): Monitoring critical pushbuttons and emergency sensors.
- Fire and Gas (F&G): Receiving signals from flame detectors and gas concentration sensors.
- Burner Management Systems (BMS): Overseeing discrete statuses for industrial furnaces and boilers.
- Oil & Gas Production: Managing safety interlocks on offshore platforms and refineries.
- Nuclear Power: Safety-grade control logic and containment monitoring.
Product Usage Instructions
- Safety Grounding: Ensure the Tricon chassis is properly grounded before module insertion. ESD precautions must be strictly followed.
- Installation: Slide the 3503EN into the designated I/O slot. The module is hot-swappable in a dual/redundant configuration, allowing for replacement without system downtime.
- External Termination: Use the appropriate External Termination Assembly (ETA) and cable to connect field sensors. The 3503EN requires a common return path for all 32 inputs.
- Configuration: Within the TriStation 1131 software, configure the point-specific parameters, such as scan time and debounce filters.
- Diagnostics: Regularly check the front panel LEDs. If the “Fault” light is on, use the system diagnostic tools to identify whether the fault is internal to the module or located in the field wiring.
Product Technical Description
The 3503EN utilizes Triple Modular Redundancy (TMR) technology. Technically, it consists of three independent input channels (A, B, and C). Each input signal from the field is branched to three separate circuits. The Tricon controller’s Main Processors then perform a 2-out-of-3 (2oo3) vote on the data from these three channels. This architecture ensures that a single point of failure within the module does not result in a false trip or a failure to trip, providing the highest levels of safety integrity (SIL 3). The “EN” enhanced version features improved diagnostic coverage for detecting latent faults in the input circuitry.
Q&A (Common Questions)
Q: Is the 3503EN compatible with 120 VAC signals? A: No, the 3503EN is strictly a 24 VDC module. Using 120 VAC will cause immediate hardware failure and is a safety hazard.
Q: Can I hot-swap this module while the process is running? A: Yes, if the Tricon system is configured for redundancy (using two modules in a primary/standby pair), you can pull the faulty module and replace it without affecting the control logic.
Q: What is the difference between 3503E and 3503EN? A: The “N” typically refers to the module being conformally coated, which protects the internal PCBs from humidity, dust, and corrosive gases (Class G3 protection).
Q: Why are all 32 points showing “Fault”? A: This often indicates a loss of field power or a blown fuse on the External Termination Assembly (ETA). Check the 24 VDC supply to the field side.
Similar Model Recommendations
- Triconex 3504E: High-density 24/48 VDC Digital Input.
- Triconex 3501E: 115 VAC/VDC Digital Input module.
- Triconex 3604E: 24 VDC Digital Output module (TMR).
- Triconex 3700A: Analog Input module for SIS.
- Triconex 3805E: Analog Output module for safety control.
For technical specifications or to purchase the Triconex 3503EN, please contact our safety systems specialists.
