Description
The Triconex 3805E is a high-reliability Analog Output Module designed for integration within Triple Modular Redundant (TMR) safety instrumented systems. Engineered for mission-critical applications, this module features three isolated, concurrent processing paths that continuously vote on output variables to provide fault-tolerant execution. It ensures that critical final control elements, such as modulating control valves and speed governors, receive precise, uninterrupted signals even in the event of an internal hardware fault.
Product Datasheet
- Model Number: 3805E
- Series: Tricon safety system
- Manufacturer: Invensys / Schneider Electric Triconex
- Product Type: TMR Analog Output Module
- Output Channels: 8 isolated analog output channels
- Signal Range: 4–20 mA current loop outputs
- Dimensions: 310 mm x 40 mm x 240 mm
- Weight: 2.10 kg
- Country of Origin: United States
- Safety Integrity Level: Certified up to SIL 3 according to IEC 61508 standards
Application Fields
This TMR analog output module is extensively deployed in safety-critical loops where an incorrect control signal or unintended shutdown could lead to hazardous conditions or massive production loss. Primary industries include:
- Emergency Shutdown Systems (ESD): Managing safety-critical control valves and isolating machinery sections during process upsets.
- Fire and Gas Systems (F&G): Driving specialized localized safety status indicators, alarm sirens, or ventilation control dampers.
- Turbine Control and Speed Governing: Regulating precise hydraulic valve positioning for steam and gas turbine fuel lines.
- Burner Management Systems (BMS): Controlling heavy fuel feed valves and combustion air flow dampers in high-capacity boilers.

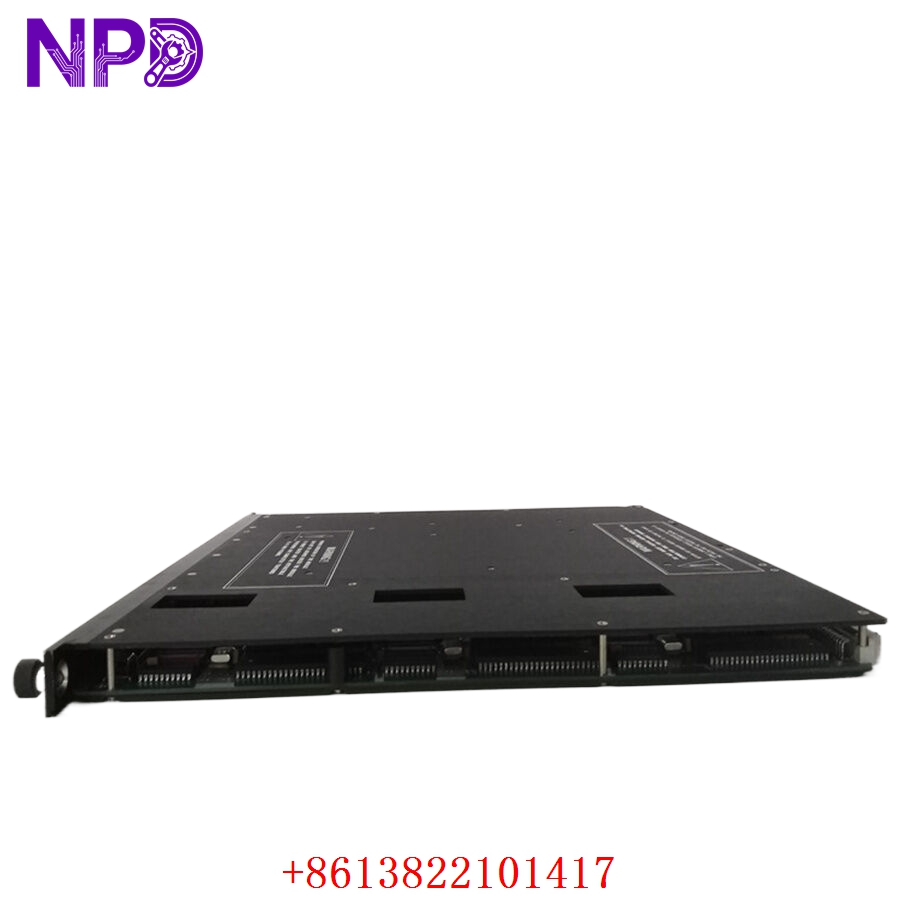

TRICONEX 3805E
TRICONEX 3805E
Product Instructions
To maintain the safety integrity of the system and ensure optimal performance, adhere to the following procedural steps:
- Rack Insertion: Ensure that the plastic guides of the module line up accurately with the target slot rails in the Tricon chassis. Push firmly until the module is fully seated into the backplane connectors, then tighten the top and bottom front captive screws.
- Field Wiring Interface: Connect field wiring to the appropriate external termination panel (ETP). Use shielded twisted-pair cables to carry the 4–20 mA signals to prevent ambient electromagnetic noise from degrading loop accuracy.
- Configuration and Diagnostics: Use TriStation 1131 software to configure channel parameters, output ranges, and fail-safe states. Verify that the system registers the module without configuration mismatches.
- On-line Replacement: This module supports hot-swapping. When replacing a faulty card, ensure the companion slot contains a healthy active module or that the system redundancy layout permits single-card removal without interrupting the physical loop currents.
Questions and Answers
Q: How does the Triple Modular Redundant (TMR) architecture function on the 3805E outputs? A: Internally, the module contains three independent branches of control circuitry. Each branch processes the output command from its respective main processor. The three signals are physically combined and voted at the final output stage via a proprietary hardware voting circuit, ensuring that a fault on any single branch is automatically overridden.
Q: What do the front panel status indicators signal during operation? A: The front panel includes “PASS,” “FAULT,” and “ACTIVE” LEDs. A solid green “PASS” indicates successful internal diagnostics. A solid yellow “FAULT” indicates an internal channel or component issue that requires module attention, while “ACTIVE” shows when the card is actively driving the field loops.
Q: Does the 3805E monitor the health of the connected field loop wiring? A: Yes, the module features advanced diagnostic capabilities that continuously check for open-circuit or short-circuit conditions on each field loop, generating system-level alarms to alert maintenance personnel of external line damage.
Q: How can I request a quote or check stock availability for this specific Triconex board? A: For comprehensive availability updates, wholesale pricing tiers, or specific lead time data regarding the TRICONEX 3805E, please send your technical inquiry directly to our commercial support desk.
