Description

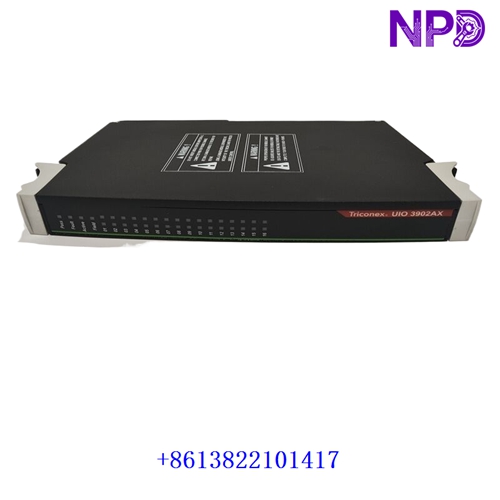

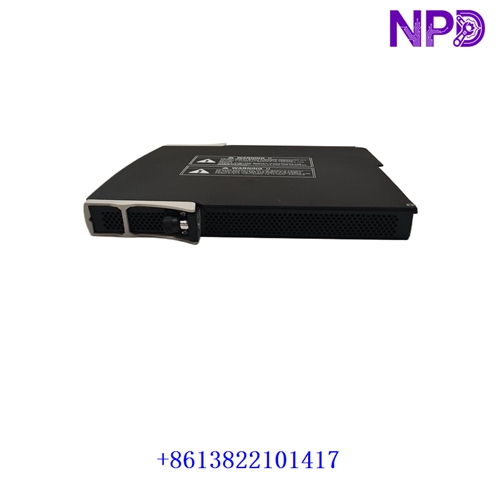

The Triconex 3902AX (also designated as 3902A / 3902) is a high-density Analog Output External Termination Panel (ETP) engineered for the Tricon™ Triple Modular Redundant (TMR) Safety Instrumented System (SIS) by Schneider Electric (formerly Invensys / Triconex). Installed in field termination enclosures, the 3902AX serves as the passive physical interface between field actuators (e.g., control valves, I/P transducers, variable speed drives) and the active Tricon Analog Output (AO) modules (such as the 3805E 4–20 mA card) residing in the main or expansion chassis.
Key Specifications & Identification
| Attribute | Details |
| Manufacturer | Triconex / Schneider Electric (Invensys) |
| Part / Model Code | 3902AX / 3902A / 3902 |
| System Architecture | Tricon™ TMR (Triple Modular Redundant) Safety System |
| Module Category | External Termination Panel (ETP) / Field Termination Assembly |
| Channel Capacity | 16 Independent Analog Output Channels |
| Signal Compatibility | 4–20 mA Analog Output Current Loops |
| Field Wiring Interface | Heavy-duty screw terminal blocks |
| Chassis Connection | High-density multi-conductor cable assembly to Tricon I/O backplane |
Primary System Functions
- TMR Output Signal Routing: Connects the voting outputs of triple-redundant channels within the main Tricon chassis and routes the voted 4–20 mA current signals directly to 16 individual field output loops.
- Passive Circuit Protection: Incorporates onboard signal conditioning, transient surge suppression, and current-limiting resistors to shield internal chassis components from field electrical faults, cross-talk, and lightning-induced spikes.
- Loop Test & Diagnostic Points: Features designated test points on the panel assembly, enabling instrumentation engineers to measure loop currents or land diagnostic equipment without breaking field wiring connections.
- Redundant Power Distribution: Accepts dual external 24 V DC field loop power inputs with passive diode-ORing to ensure continuous field loop power if a primary utility supply fails.
Servicing & Installation Guidelines
- Field Power Isolation & Hazardous Areas: Isolate external 24 V DC loop power supplies prior to landing or removing field wires. Observe hot-work permit requirements when working inside Division 2 / Zone 2 hazardous areas.
- Electrostatic Discharge (ESD) Protection: Though passive, onboard surge suppression networks and precision resistor arrays require static controls. Always wear a grounded ESD wrist strap during handling.
- Multi-Conductor Cable Strain Relief: Verify that system interface cables linking the 3902AX ETP to the Tricon I/O slot are fully seated and secured with retaining latches to avoid signal degradation caused by cabinet vibration.
- Loop Fuse & Resistor Checks: If a specific analog output channel drops to 0 mA or fails to respond, inspect onboard channel fuses and series protection resistors on the ETP board before replacing the chassis I/O module.
