1. Product Description

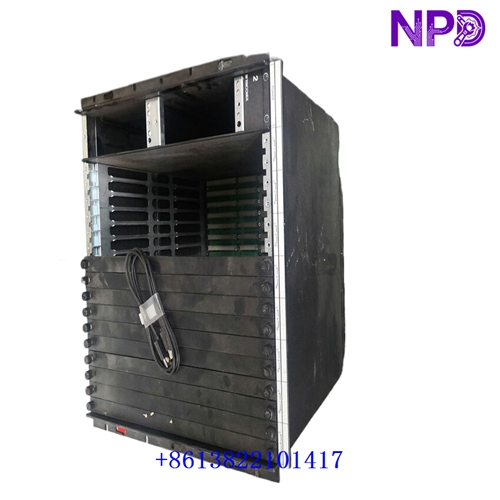

The TRICONEX 8111 is a high-density expansion chassis designed for Tricon safety instrumented systems (SIS). It expands the system’s capacity by accommodating additional input/output (I/O) and communication modules, allowing industrial facilities to extend their control and safety functions without replacing the main chassis. It is used in critical process industries such as oil and gas, petrochemical processing, power generation, and chemical manufacturing.
The 8111 chassis supports up to eight logical module slots and includes two power-module positions. It connects to the main chassis through dedicated I/O expansion cables, supporting communication between the processor system and installed I/O modules. It is part of the Tricon v9–v11 chassis-based platform. Confirm the chassis revision, power-module configuration, slot arrangement, and cable requirements before installation.
TRICONEX 8111
2. Product Parameters — Datasheet
Brand: TRICONEX
Model: 8111
Product Name: High-Density Expansion Chassis
Product Series: Tricon v9–v11
Product Type: Safety System Expansion Chassis
Primary Function: Expands I/O and communication module capacity
Module Capacity: Eight logical module slots
Power Module Positions: Two
Expansion Interface: Tricon triplicated I/O expansion bus
Expansion Cable: Model 9000 I/O Bus Expansion Cable Set
I/O Bus Data Rate: 375 kbps
Communication Bus Data Rate: 2 Mbps
Communication: Depends on the communication modules installed
Power Requirements: Determined by the installed power modules; compatible options include 120 VAC/VDC, 24 VDC, and 230 VAC models
Mounting: Industrial chassis/rack installation
Dimensions: Approximately 48.3 × 57.8 × 45.1 cm, based on a supplier listing; verify the applicable mechanical drawing
Weight: Approximately 24.5 kg, as reported in a supplier listing; confirm the shipped configuration
Place of Manufacture: Not confirmed for the individual unit
Country of Origin: Verify from the chassis label
Product Status: New surplus, used, or refurbished availability depends on supplier inventory
Discontinued: Legacy platform; confirm lifecycle and support availability
Compatibility: Tricon v9–v11 systems; verify chassis type, installed modules, power supplies, and expansion cabling
3. Recommended TRICONEX Models
The following models are related Tricon chassis, power, processor, communication, and I/O components. They serve different functions and are not direct substitutes for the 8111 expansion chassis.
- TRICONEX 8110 — High-density main chassis for Tricon safety systems.
- TRICONEX 8112 — High-density remote expansion chassis for distributed system configurations.
- TRICONEX 8121 — Enhanced low-density expansion chassis for compatible Tricon systems.
- TRICONEX 8310 — 120 VAC/VDC power module rated at 175 W.
- TRICONEX 8311 — 24 VDC power module rated at 175 W.
- TRICONEX 8312 — 230 VAC power module rated at 175 W.
- TRICONEX 3008 — Main processor module for compatible Tricon platforms.
- TRICONEX 3006 — Enhanced Main Processor II with 2 MB memory for supported systems.
- TRICONEX 4351A — Tricon communication module with Ethernet and serial interfaces.
- TRICONEX 4352A — Communication module variant for supported Tricon configurations.
- TRICONEX 4119A — Enhanced Intelligent Communication Module with serial interfaces.
- TRICONEX 4329 — Network Communication Module for supported Tricon systems.
- TRICONEX 3700A — Analog input module with differential voltage inputs.
- TRICONEX 3503E — Digital input module for compatible Tricon safety systems.
- TRICONEX 3604E — Digital output module for supported Tricon configurations.
When replacing a chassis, match the exact 8111 model and verify the Tricon system generation, module-slot arrangement, power supplies, and expansion cable configuration. Safety-system changes should follow the approved system design and commissioning procedures.
