Description
Model: TRICONEX 8312 · Brand: Invensys / Triconex (Schneider Electric) · Series: Tricon High-Density Configuration · Core Function: Triple Modular Redundant (TMR) Power Supply Module · Condition: Brand New Surplus / Original New (Factory Sealed) · Type: 230 VAC Power Module · Key Specs: 175 Watt Output 230 VAC Input Diagnostic LED Status
- Manufacturer: Invensys Triconex
- Nominal Input Voltage: 230 VAC
- Input Voltage Range: 185–285 VAC (47–63 Hz)
- Output Voltage: 6.5 VDC (Nominal)
- Output Current: 27 Amps maximum (at 60°C)
- Power Output: 175 Watts
- Fuse Rating: 2.5 Amps (Time-delay)
- Output Hold Time: 20 ms minimum (from nominal to 0 volts)
- Diagnostic Indicators: PASS, FAULT, ALARM, TEMP, BAT LOW
- Operating Temp: 0°C to 60°C (32°F to 140°F)
- Weight: 3.3 kg (Approx. 7.3 lbs)

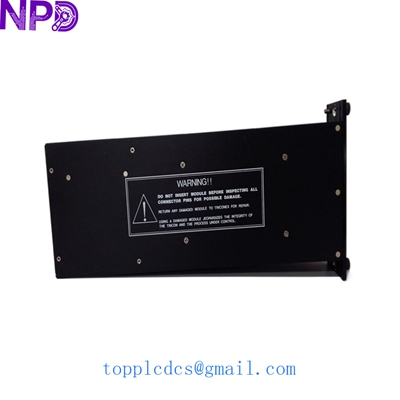

TRICONEX 8312
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation)
⚠️ Safety Protocol:
- Ensure the system is grounded according to Triconex installation standards.
- Verify that the incoming power matches the 230 VAC rating (185-285 VAC). Connecting 120 VAC to the 8312 will result in a power failure alarm.
- Check the battery status. If the unit has been in storage for over 5 years, consider replacing the lithium-ion batteries.
Tools Required:
- Torque wrench (for backplane connections).
- ESD-safe wrist strap (Mandatory for handling Triconex modules).
Phase 2: Mounting & Redundancy Setup
- Slot Allocation: Power modules are located on the far left side of the Tricon chassis. The 8312 is designed to fit into the dedicated Power Module slots.
- Redundant Configuration: For high-availability systems, install two 8312 modules. They are designed to share the load. If one fails, the other sustains the full 175W load without process interruption.
- Locking: Slide the module firmly into the chassis until the top and bottom levers click into place.
Phase 3: Wiring and Power-Up
- Input Terminals: The terminal strips for incoming power are located on the lower-left corner of the backplane. Use 12-gauge (3.3 mm²) wire for Neutral, Hot, and Protective Earth.
- Alarm Contacts: Connect the hardwired alarm contacts (Normally Open/Closed) to your facility’s master alarm system to monitor power health remotely.
- Power-On: Once AC power is applied, the PASS LED should turn solid green within seconds.
Phase 4: Diagnostic Monitoring
- TEMP LED: If this lights up, check your cabinet fans. The module trips a warning if internal temperatures exceed 83°C (181°F).
- BAT LOW LED: This indicates the internal lithium-ion backup battery (used for RAM retention during power loss) needs service.
- Online Replacement (Hot-Swap): The 8312 is fully hot-swappable. You can pull a faulty module and insert a new one while the system is running, provided the second power module is healthy.
Customer Cases & Industry Applications
Case 1: Petrochemical Plant Emergency
A refinery in Southeast Asia faced a critical “Fault” state on their ESD (Emergency Shutdown) system. One of the redundant 8312 power modules had failed due to a surge. The plant was operating on a single PSU with no backup. We dispatched a New Surplus unit from our Xiamen warehouse via Express air freight. The part arrived within 48 hours, allowing the maintenance team to hot-swap the unit and restore TMR redundancy without a minute of production loss.
Case 2: Nuclear Power Life Extension
An older nuclear facility utilizing Tricon v9.x architecture needed to secure their “Class 1E” safety spares. With the 8312 reaching its “LifeTime Support” phase, the official channels had long lead times and high costs. We provided a batch of three factory-sealed 8312 modules with original COCs (Certificate of Conformance), allowing them to maintain their safety system for another decade without an expensive full-system migration.
TRICONEX 8312
Frequently Asked Questions (FAQ)
Q: Can I mix an 8312 (230 VAC) with an 8310 (120 VAC) in the same chassis? A: No. Both power modules in a redundant pair must be the same model to ensure proper load sharing and voltage regulation. Mixing 120V and 230V modules in the same chassis can cause unpredictable system behavior or damage to the backplane.
Q: What is the “BAT LOW” indicator for? A: It monitors the health of the rechargeable lithium-ion batteries inside the module. These batteries provide 14.8V to maintain system memory during total power loss. They should typically be replaced every 8–10 years.
Q: How do I know if my 8312 is “Original New” or “Refurbished”? A: Original New units come in factory-sealed anti-static packaging with the Triconex/Invensys labels intact. Refurbished units often show wear on the insertion rails and may have updated “Serviceable” stickers from third-party repair shops. We prioritize New Surplus stock to ensure the highest MTBF.
Q: What is the estimated shipping time to the Middle East? A: Using DHL or FedEx Express, shipping typically takes 3–5 business days to major hubs like Dubai or Doha.
