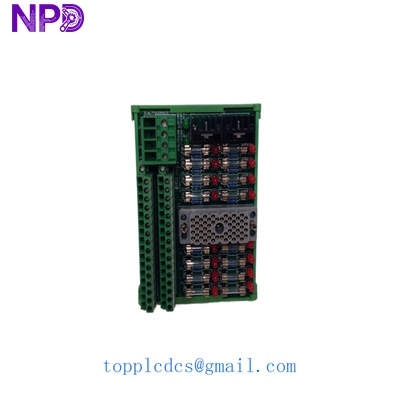

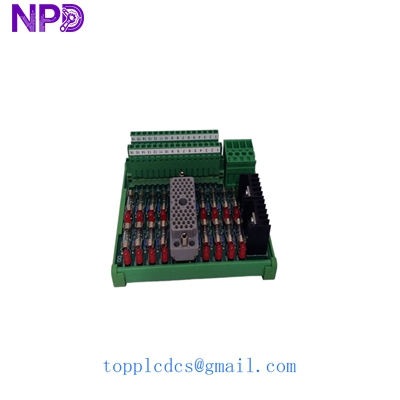

Triconex 9662-810 | Bus Expansion Module

Description

• Model: Triconex 9662-810
• Brand: Schneider Electric (Triconex)
• Series: Tricon Triple Modular Redundancy (TMR)
• Core Function: I/O Bus Expansion between primary and expansion chassis
• Product Type: Bus Expansion Module (BEM)
• Key Specs: TMR Architecture | High-speed RS-485 communication | Multi-chassis support

• Architecture: Triple Modular Redundant (TMR)
• Interface: RS-485 Differential signaling
• Chassis Compatibility: Tricon v9 and v10 High-Density systems
• Max Distance: Up to 30 meters (100 ft) between chassis
• Diagnostics: Internal self-test and bus health monitoring
• Isolation: 500 V DC (Input to Output)
• Connectors: Heavy-duty multi-pin bus connectors
• Operating Temp: 0 to +60°C (32 to 140°F)
• Compliance: SIL3 Rated (IEC 61508), TUV certified
• Hot-Swap: Fully supported within a redundant pair

TRICONEX 9662-810

Application Scenarios & Pain Points

In a Triconex system, safety is non-negotiable. When your I/O count exceeds the capacity of a single chassis (usually 10 slots), you must add an expansion chassis. The 9662-810 is the bridge that maintains the Triple Modular Redundant (TMR) integrity across that physical gap. It ensures that all three processors (A, B, and C) can “talk” to the expansion I/O without losing the 2-out-of-3 voting logic.

The biggest headache with bus expansion is “Bus Fault” alarms. If a 9662-810 starts to fail, it can cause intermittent “Leg” faults (e.g., Leg A is down). Because Tricon is a “Fail-Safe” system, a degraded bus module might not trip the plant immediately, but it leaves you running in a “Dual” or “Single” mode, meaning one more fault could trigger a total Emergency Shutdown (ESD).

Typical Application Scenarios:

1. ESD (Emergency Shutdown) Systems Expanding I/O capacity for large-scale oil and gas refineries to handle hundreds of safety sensors.
2. BMS (Burner Management Systems) Linking expansion racks that control igniters and flame scanners in utility boilers.
3. F&G (Fire and Gas) Systems Distributing I/O across multiple cabinets while maintaining centralized SIL3 safety logic.

The “Ghost in the Bus” Case Study:

Background: A chemical plant in Southeast Asia was plagued by random “I/O Bus Alarms” on their Expansion Rack 2. The system would intermittently report that “Chassis 2, Leg B” was communicating with errors.

Problem: The engineers replaced the I/O cards, but the errors persisted. During a scheduled maintenance window, we inspected the 9662-810 Bus Expansion Module. We found that one of the pins in the backplane connector had developed “fretting corrosion” due to years of cabinet vibration.

Solution: We replaced the 9662-810 with a fresh unit from our stock and cleaned the backplane pins with an approved electronic contact restorer.

Result: The communication errors vanished, and the system returned to full “Tripled” status.

• Engineer’s Tip: When installing the 9662-810, ensure the thumbscrews are tightened evenly. An uneven seat on the backplane is the #1 cause of intermittent bus errors in Tricon systems.

TRICONEX 9662-810

Compatible Replacement Models

Engineer’s Note: Triconex parts are very specific about the version of the “Tricon System” (e.g., v9.6 vs v10.4). While the 9662-810 is widely used, always verify your Tri-Station 1131 project configuration before swapping modules.

TRICONEX 9662-810

Troubleshooting Quick Reference

Technical Pitfalls to Avoid:

• ❗ Redundancy Check: In a TMR system, you usually have two 9662-810s for redundancy. Never pull both at the same time while the plant is running, or you will lose the entire expansion rack.
• ❗ Cable Lengths: Do not exceed the 30-meter limit for expansion cables. RS-485 is robust, but in high-EMC environments like a power plant, exceeding length leads to data corruption.
• ❗ Pin Protection: The connectors on the back of the board have high pin counts. If you feel resistance when inserting, STOP. Pull it out and check for bent pins. Forcing it will destroy the chassis backplane.

SOP Quality & Testing Process

Safety systems require a higher level of verification. Our 9662-810 modules undergo:

1. TMR Integrity Test: We install the module in a Tricon v10 testbed and verify that Legs A, B, and C all synchronize and participate in the voting logic.
2. High-Load Bus Stress: We simulate a full rack of I/O traffic to ensure the expansion bus doesn’t drop packets under heavy load.
3. Hot-Swap Validation: We perform “Live” pulls and inserts in the test rack to ensure the redundant partner takes over without a glitch.
4. Diagnostic Buffer Cleanse: We clear all historical error logs and run a fresh “Health Report” to ensure the module is 100% clean for the customer.
