Description

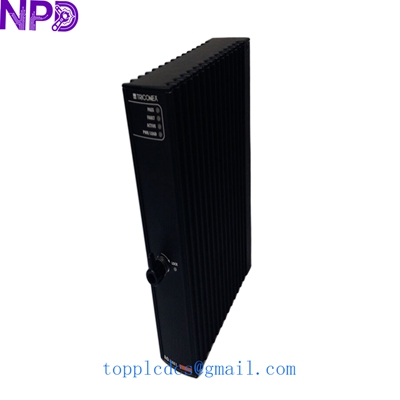

- Model: TRICONEX 3481 (AO3481)
- Brand: Schneider Electric (Triconex)
- Series: Tricon Triple Modular Redundant (TMR)
- Core Function: High-integrity control of field devices via 4-20 mA signals
- Product Type: TMR Analog Output Module
- Key Specs: 8 Channels | 4–20 mA DC | TMR Voting Logic | SIL 3 Rated
- Number of Channels: 8, isolated
- Output Range: 4 to 20 mA DC
- Resolution: 12 bits
- Output Accuracy: < 0.25% of FSR (from 0° to 60°C)
- TMR Architecture: Triple-redundant output legs with internal hardware voting
- Safety Integrity Level: SIL 3 (IEC 61508)
- Loop Power: Externally provided (typically 24 VDC)
- Update Rate: < 25 ms
- Fault Coverage: Comprehensive internal diagnostics (over 99%)
- Diagnostic Features: Detects open loops, short circuits, and leg-to-leg deviations

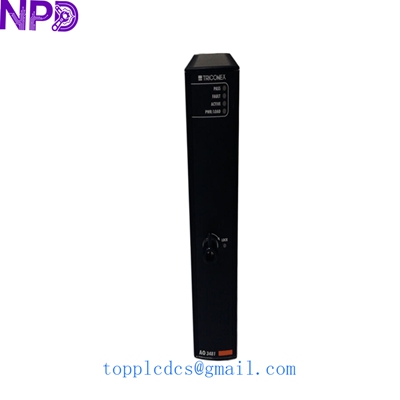

TRICONEX AO3481
Application Scenarios & Pain Points
Engineering Pain Points: In a TMR Analog Output module, the three internal “legs” must agree on the output value. The biggest integrator “pitfall” with the 3481 is External Load Resistance. If the resistance of your field device (plus the cable run) is too high or too low, the internal voting mechanism may struggle to maintain the current, leading to a “Leg Fault.” Furthermore, because this is a safety module, an open-circuit detection (like a snapped wire) won’t just give you a bad reading—it will likely trigger a system-level diagnostic alarm that requires a manual reset.
Typical Application Scenarios:
- Safety-Critical Valve Positioning Controlling modulating valves in Emergency Shutdown (ESD) systems where the valve must move to a precise fail-safe position.
- Turbine Speed Control Interfacing with electronic governors to manage the speed of large steam or gas turbines in a high-availability environment.
- Variable Speed Drive (VSD) Interface Sending safety-critical speed setpoints to high-power drives in hazardous processing areas.
- Damper Control Managing air intake or exhaust dampers in Burner Management Systems (BMS) to ensure proper combustion ratios.
The “Phantom Leg Deviation” Case Study
Background: A gas processing plant reported that their Triconex 3481 module was intermittently showing a “Leg B Fault” on Channel 4. The field valve appeared to be moving correctly, but the system health was degraded.
Problem: We found that the field valve positioner had a slightly aging I/P (current-to-pressure) transducer. As it warmed up, its impedance would shift. While it stayed within the “operational” range of a standard PLC, the high-precision TMR voting logic of the 3481 detected that Leg B was working “harder” than A and C to maintain the 12mA signal.
Solution: We replaced the I/P transducer on the valve and re-verified the loop impedance.
Result: The Leg Fault cleared. Integrator’s Lesson: Triconex AO modules are extremely sensitive to the “health” of the field device. Often, a module fault is actually an early warning that your field device is about to fail.
TRICONEX AO3481
Compatible Replacement Models
| Original Model | Related/Replacement | Compatibility | Note |
| 3481 | 3482 | ❌ Incompatible | 3482 is typically the 16-channel version; different density |
| 3481 | 3481R | ✅ Direct Replace | “R” indicates Remote Rail compatibility; identical function |
| 3481 | 4351B | ❌ Incompatible | This is a Tricon CX series module; completely different form factor |
Integrator’s Tip: When replacing a 3481, ensure you check the External Termination Panel (ETP). The AO3481 requires a specific ETP that handles the 24VDC loop power distribution. If you see “No Field Power” errors after a swap, check the fuses on the ETP board before assuming the module is dead.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Related Part | Action |
| “PASS” Light Off | Internal Logic Failure | ✅ 3481 | Check TriStation 1131 for Fatal Module Error |
| “FAULT” Light (Solid Red) | Self-Test Failure | ✅ 3481 | Replace module immediately |
| “LOAD” LED (Yellow) | Open Loop / High Resistance | ❌ Field | Check field wiring and valve positioner impedance |
| Leg Deviation Alarm | Internal Leg Mismatch | ✅ 3481 | Power cycle the module; replace if fault persists |
Field Note: …If you’re testing this on the bench, don’t just put a multimeter in “mA” mode across the terminals. The 3481 needs to see a realistic load (typically 250–500 Ω). If you short the output, the module’s diagnostics might shut the channel down to protect the internal circuitry.
TRICONEX AO3481
Strategic Quality Assurance (Our SOP)
- TMR Voting Test: We verify that all three internal sub-channels are active and contributing to the output signal.
- 5-Point Linearity Check: We test the output at 4mA, 8mA, 12mA, 16mA, and 20mA using a precision shunt resistor and a calibrated voltmeter.
- Open/Short Diagnostic: We intentionally open the circuit to ensure the module correctly reports a “Load” fault.

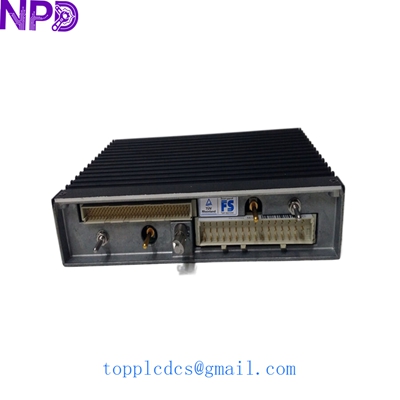

- Physical Inspection: We check the rear “Elco” connector pins for alignment and the front-panel levers for smooth mechanical operation.
