Description
Technical Parameters Datasheet
| Parameter | Specification Details |
| 1. Brand / Manufacturer | Triconex |
| 2. Model Number | CIM3211S2 |
| 3. Product Type | Communication Interface Module |
| 4. Dimensions | 16 cm × 16 cm × 12 cm |
| 5. Weight | 0.8 kg |
| 6. Product Origin | USA |
| 7. Power Requirements | 24V DC Nominal |
| 8. Operating Temperature | 0°C to 60°C |
| 9. Communication Protocols | Modbus, TCP/IP, TriStation |
| 10. Safety Certification | SIL 3 / TÜV Certified |
Product Introduction

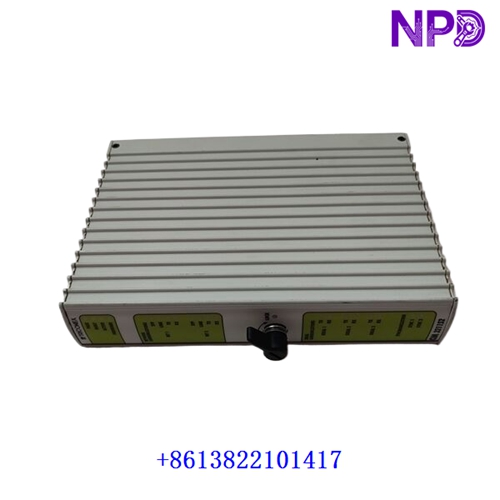

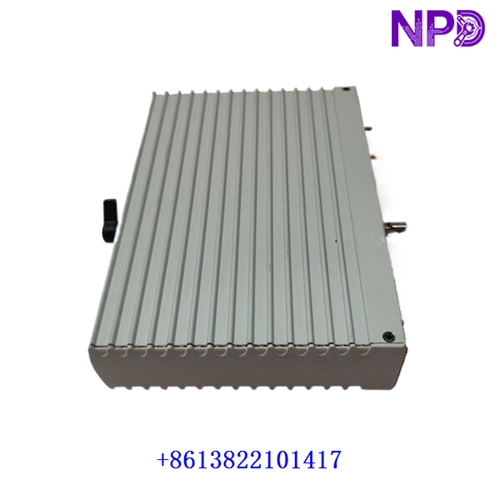

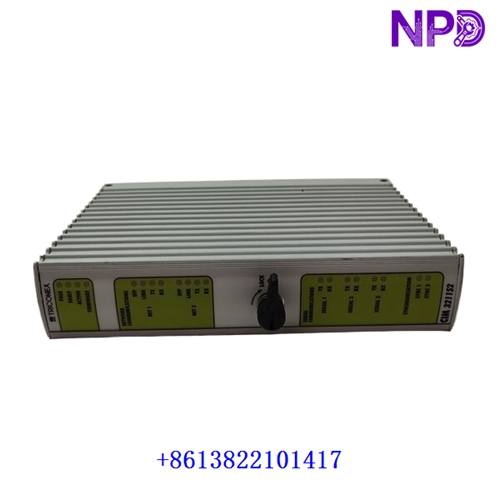

💡 Overview of TRICONEX CIM3211S2
The TRICONEX CIM3211S2 is an advanced communication interface module engineered specifically for industrial safety and critical control automation environments. It serves as a secure, fault-tolerant gateway connecting Triconex safety controllers with supervisory control systems, HMIs, and external host networks. Built to meet stringent safety requirements, it ensures high-speed data exchange, robust network reliability, and seamless multi-protocol communication.
Product Instructions
⚙️ Installation & Operational Guidelines
- Slot Installation: Insert the module into the designated chassis slot carefully, utilizing the mechanical keying features to avoid incorrect slot alignment.
- Power Verification: Ensure the system backplane provides a stable and nominal 24V DC power supply before switching on the rack.
- Network Wiring: Connect standard Ethernet or serial cables to the assigned communication ports to establish reliable peer-to-peer or master-slave links.
- Hot-Swap Maintenance: Take advantage of the modular design supporting hot-swappable installation, allowing safe replacement during active operation without shutting down the entire safety loop.
Q&A (Frequently Asked Questions)
❓ Common Questions and Answers
- Q: Is the TRICONEX CIM3211S2 hot-swappable?
- A: Yes, it is designed for hot-swappable operation, meaning technicians can replace or insert the module while the system is powered on, provided proper safety protocols are observed.
- Q: What communication protocols are supported?
- A: It supports a wide range of industrial protocols including Modbus, TCP/IP, and TriStation to facilitate flexible architecture integration.
- Q: How can I troubleshoot operational errors on the module?
- A: You can diagnose system status directly by monitoring the onboard diagnostic status LED indicators (such as PASS, FAULT, and ACTIVE states).
