Description
The Triconex CM2201 is a high-availability communication module designed for the Trident and Tri-GP safety instrumented system (SIS) platforms. Operating under the Triple Modular Redundant (TMR) architecture, the CM2201 provides the critical bridge between the safety controller’s internal bus and external networks, enabling secure data exchange with Distributed Control Systems (DCS), Human-Machine Interfaces (HMI), and engineering workstations.

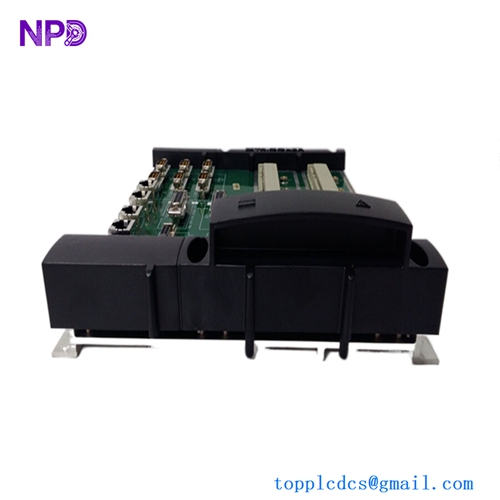

TRICONEX CM2201
Technical Specifications & Parameters
The CM2201 is engineered to maintain safety integrity while managing high-speed data throughput across various industrial protocols.
| Parameter | Specification |
| Model Number | CM2201 |
| Module Type | Communication Module (CM) |
| Platform Compatibility | Trident and Tri-GP Systems |
| Processor | High-performance RISC Processor |
| Ethernet Ports | 2 x 10/100BaseTX (RJ45) |
| Serial Ports | 3 x RS-232/RS-485 (Isolated) |
| Protocols (Ethernet) | TCP/IP, Modbus TCP, TSAA, SNTP, Peer-to-Peer |
| Protocols (Serial) | Modbus RTU (Master/Slave), TriStation Interface |
| Input Voltage | 24 VDC (via Baseplate) |
| Operating Temp | -40°C to +70°C (-40°F to +158°F) |
| Safety Integrity Level | SIL 3 Capable (IEC 61508) |
Key Hardware Features
- Protocol Versatility: Supports simultaneous communication across multiple protocols, allowing the SIS to report to a Modbus master while being programmed via TriStation 1131 software over Ethernet.
- TMR Bus Interface: The module interfaces with the three main processors (MPs) of the Trident system, collecting and synchronizing data to ensure that the communication sent to the DCS is validated and fault-tolerant.
- Galvanic Isolation: All serial and Ethernet ports feature high-level electrical isolation to protect the internal safety bus from external surges or ground loops.
- Sequence of Events (SOE): The CM2201 is capable of handling time-stamped SOE data, providing millisecond-resolution event logs for post-incident analysis.

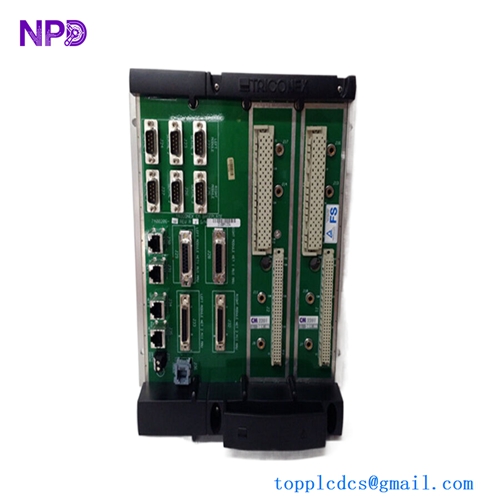

TRICONEX CM2201
Product Datasheet Summary
- Network Security: The CM2201 includes hardware-level features to prevent network storms and unauthorized access to the safety bus, fulfilling critical cybersecurity requirements for industrial control systems.
- Diagnostic Monitoring: Integrated “Health” LEDs provide real-time status of the module’s internal circuitry, port activity, and communication link integrity.
- Hot-Swap Capability: Like all Trident modules, the CM2201 can be replaced while the system is powered and the process is running, provided a redundant pair is configured.
- Environmental Ruggedness: Specifically designed with conformal coating to withstand harsh chemical environments and extreme temperature fluctuations common in oil and gas applications.
Country of Origin
The Triconex CM2201 is manufactured in the United States of America (USA). It is produced by Schneider Electric (formerly Invensys/Triconex) at their specialized safety system manufacturing facilities.
Application Areas
The CM2201 is a vital component in “High-Reliability” industries:
- Emergency Shutdown (ESD): Managing the communication of safety-critical variables between the shutdown system and the plant operator.
- Fire and Gas (F&G) Systems: Integrating flame and gas detection data into the plant-wide monitoring network.
- Burner Management Systems (BMS): Providing the interface for boiler and furnace safety sequences.
- Turbomachinery Control: Communicating high-speed vibration and speed trip data to supervisory systems.
Product Usage Instructions
- Mechanical Installation:
- The CM2201 must be installed on a CM Baseplate.
- Align the module with the guide rails and press firmly until the connectors engage with the baseplate.
- Secure the module using the top and bottom mounting screws.
- Network Connection:
- For Ethernet communication, use Category 5e or better shielded twisted pair (STP) cables.
- For serial Modbus communication, ensure the RS-485 termination resistors are correctly placed if the module is at the end of the daisy chain.
- Software Configuration:
- Use TriStation 1131 software to configure the port settings.
- Define the IP addresses, subnet masks, and Modbus slave/master parameters within the “Hardware Configuration” section of the project.
- Redundancy Setup:
- For maximum availability, install two CM2201 modules on the baseplate. The Trident system will automatically manage the “Active/Standby” relationship between the two units.
Recommended Related Triconex Models
For users of the Triconex Trident and Tri-GP platforms, the following models are frequently utilized alongside the CM2201:
- Triconex 3101: The Main Processor (MP) module, which serves as the central brain of the Trident system.
- Triconex 3351: A Digital Input (DI) module for monitoring field switch contacts.
- Triconex 3481: A Digital Output (DO) module for controlling safety actuators and valves.
- Triconex 3201 (CM3201): An alternative communication module with different port configurations or protocol sets.
- Triconex 3008: The high-performance Main Processor for the larger Tricon (v10/v11) systems.
- Triconex 4351B: An external communication module used for larger Tricon chassis to provide fiber-optic networking.
