Description
The Triconex MP3101S2 is a high-performance Main Processor module specifically engineered for the Tricon™ Version 10 Triple Modular Redundant (TMR) safety system. It acts as the “brain” of the safety controller, executing complex control logic, managing system-wide diagnostics, and communicating with I/O modules and external networks. Built with a fault-tolerant architecture, the MP3101S2 ensures that a single hardware failure does not compromise the safety or availability of the entire industrial process.
For professional-grade safety solutions, explore the Triconex MP3101S2 and the full Tricon™ system lineup.
Technical Datasheet
Product Identification
- Model Number: MP3101S2
- Series: Tricon™ Version 10
- Manufacturer: Triconex (Schneider Electric)
- Type: Main Processor (MP)
Physical Characteristics
- Dimensions: 430 mm x 32 mm x 260 mm
- Weight: 1.85 kg
- Country of Origin: USA
Operational Specifications
- Microprocessor: Dual-core or Multi-processor architecture (Redundant)
- Memory: 16 MB Dynamic RAM (minimum) with ECC protection
- Clock Speed: High-frequency industrial processing
- Operating Temperature: 0°C to 60°C
- Power Requirements: 24V DC via the Tricon backplane

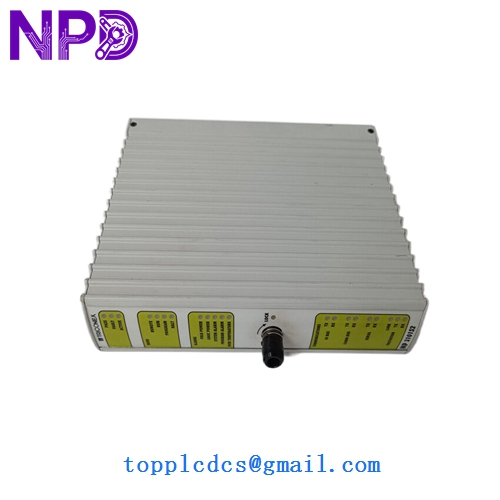

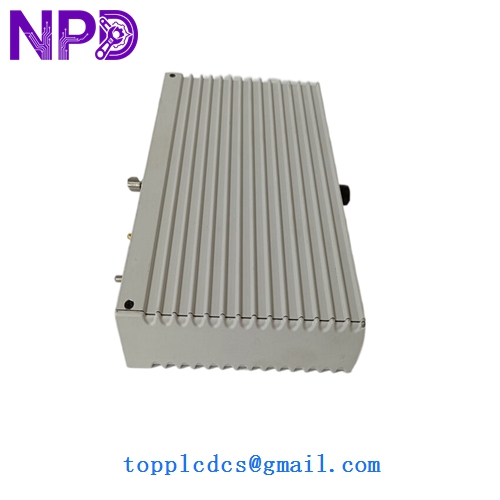

TRICONEX MP3101S2

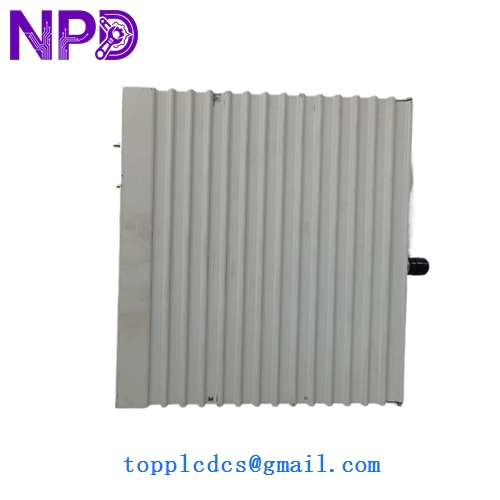

TRICONEX MP3101S2

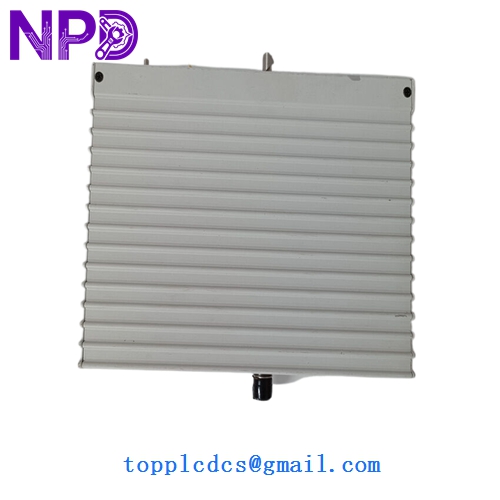

TRICONEX MP3101S2
Application Fields
The MP3101S2 is the cornerstone of safety systems in high-risk environments, including:
- Emergency Shutdown (ESD): Implementing safety logic to prevent equipment damage and protect personnel.
- Critical Control: Managing processes that cannot afford downtime, such as glass manufacturing or semiconductor fabrication.
- Fire and Gas (F&G) Systems: Integrating complex detection and suppression logic across large-scale facilities.
- Burner Management Systems (BMS): Controlling the ignition and safety monitoring of industrial furnaces and boilers.
Product Usage Instructions
- Slot Assignment: The MP3101S2 must be installed in the dedicated Main Processor slots of the Tricon™ Version 10 Main Chassis.
- Redundancy Setup: For TMR operation, three MP3101S2 modules are typically used in parallel. The system will automatically synchronize the processors upon insertion.
- Firmware Compatibility: Ensure that the TriStation 1131 software version matches the firmware on the MP3101S2 to prevent communication errors during project download.
- Diagnostics: Monitor the “Active” and “Fault” LEDs on the front panel. A green “Active” light indicates the processor is executing logic, while a yellow or red light indicates a diagnostic warning or hardware failure.
- Hot-Spare Capability: If one processor fails, it can be replaced while the system is running. The new module will perform a “self-education” process to match the state of the other two processors without interrupting the process.
Common Questions & Answers
Q: What is the significance of the “S2” suffix in the model number? A: The “S2” indicates a specific hardware revision or “Slice” update, often involving improvements in component longevity, memory management, or processing efficiency compared to earlier versions.
Q: Can I use the MP3101S2 in an older Tricon V9 chassis? A: No, the MP3101S2 is specifically designed for the Version 10 chassis architecture. Using it in older systems would require a hardware migration and potential backplane upgrades.
Q: Does this module store the user program? A: Yes, the module contains non-volatile flash memory that stores the application program, ensuring the system can reboot and resume safety operations after a complete power loss.
