Description

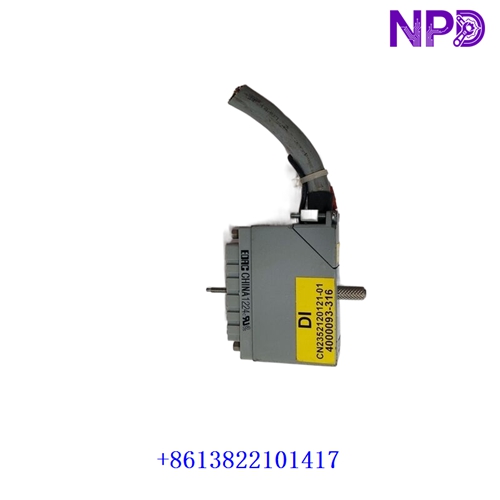

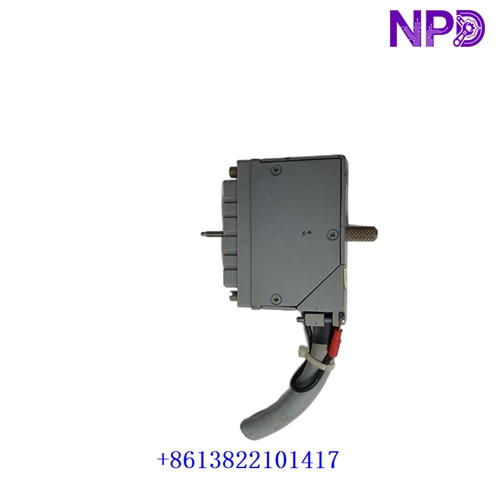

The Triconex 4000093-316 is a specialized system cabling component designed for Triconex Safety Instrumented Systems (SIS). It functions as an External Terminal Input Cable Assembly, facilitating secure, low-noise signal transmission between field termination panels and Triconex TMR (Triple Modular Redundant) input/output module infrastructure.
www.hpamazon.com
| Parameter | Specification |
|---|---|
| Brand / Manufacturer | Triconex / Schneider Electric (Invensys heritage) |
| Model / Part Number | 4000093-316 |
| Product Type | External Terminal Input Cable Assembly / Harness |
| System Compatibility | Triconex Safety Systems (Tricon TMR architectures) |
| Application Environment | High-integrity safety instrumented systems (Emergency Shutdown, Fire & Gas) |
| Operating Temperature | -40°C to +70°C ( standard industrial tolerance) |
| Product Status | Industrial Safety Automation Spare Part |
First-Run Inspection Checklist
- ☑ Physical & Insulation Integrity
Inspect the cable jacket, connector housings, multi-pin internal contacts, and molded strain reliefs for any signs of cracking, abrasion, or shipping damage.
- ☑ Pinout & Keying Verification
Ensure that both connector ends match the specific module and marshalling panel interface to prevent incorrect polarization or mismatched signal routing.
- ☑ Shielding & Grounding Check
Verify that the overall cable shield and drain wires are properly terminated to the designated cabinet ground bars to maintain electromagnetic compatibility (EMC).
Routine Maintenance & Servicing
- 🛠 Environmental and Routing Control
Ensure that cable runs are physically separated from high-voltage power conduits to minimize induced electrical noise and signal interference.
- 🔌 Connector Seating Inspection
Periodically check thumbscrews, latching clips, or plug-in locking mechanisms on both ends of the assembly to prevent loosening caused by plant vibration.
Troubleshooting & Common Issues
- ⚠️ Intermittent Signal or Open Circuit Faults
If a channel diagnostic flags an open loop or intermittent drop, inspect the connector pins for oxidation, pushed-back pins, or mechanical strain on the cable molding.
- ⚠️ Induced Electrical Noise / Crosstalk
If analog or digital input values fluctuate erratically, verify that the cable shield ground is intact at a single reference point and routed away from variable frequency drives (VFDs) or heavy power lines.
Safety Precautions
- 🔐 Qualified Personnel Only
Installation, inspection, and replacement of safety system cabling must be performed exclusively by certified technicians trained in functional safety management and plant wiring standards.
- ⚠️ System Energization & Interlocks
Always verify system override statuses and check safety loop implications with operations before disconnecting or replacing signal cable assemblies on active processes.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary function of the 4000093-316 assembly?
A: It serves as a pre-engineered external terminal input cable harness designed to reliably route field signals between termination blocks and Triconex safety system hardware.
- ❓ Q2: Why is proper cable shielding critical for this assembly?
A: Because it operates within Safety Instrumented Systems (SIS) handling critical safety loops, shielding prevents external electromagnetic interference (EMI) from triggering false trips or masking true process alarms.
