Description

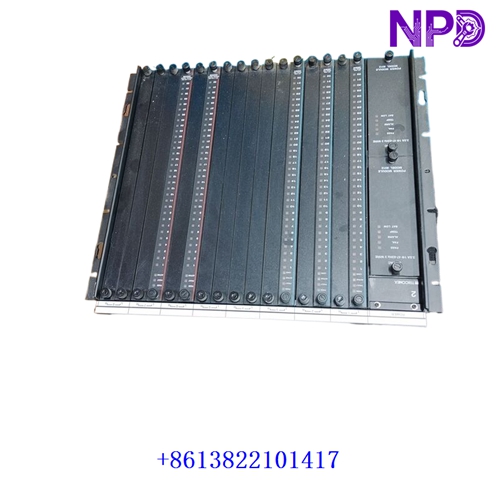

The Triconex Model 8110 is a legacy Expansion Chassis designed for Triconex Safety Instrumented Systems (SIS). It serves to expand the physical capacity of a Tricon Triple Modular Redundant (TMR) safety controller by providing physical slots to house additional I/O modules and power supplies, allowing systems to scale while maintaining high-integrity safety loops.
| Parameter | Specification |
| Brand / Manufacturer | Triconex / Schneider Electric (Invensys heritage) |
| Model / Part Number | Model 8110 (Tricon Expansion Chassis) |
| Product Type | I/O and Power Expansion Chassis |
| System Compatibility | Tricon TMR Safety Controller Systems |
| Chassis Capacity | Accommodates dual redundant power modules and multiple logical I/O module slots |
| I/O Bus Integration | Connects to the Main Chassis via triplicated RS-485 I/O bus cabling |
| Distance Limitation | Total I/O Bus cable length from Main Chassis to expansion chassis must not exceed 100 feet (30 meters) |
| Product Status | Industrial Safety Automation Spare Part / Legacy System Support |
First-Run Inspection Checklist
- ☑ Physical & Enclosure IntegrityInspect the 19-inch rack-mountable metal chassis housing, backplane pins, power module slots, and internal guide rails for any transit damage, dust accumulation, or mechanical distortion.
- ☑ Power Module SeatingEnsure that the dual redundant power modules installed in the chassis power slots are correctly seated, securely latched, and rated for the plant input voltage.
- ☑ I/O Bus Cabling CheckConfirm that triplicated RS-485 communication cables linking the main chassis to the Model 8110 expansion ports are securely connected, properly shielded, and kept within the 100-foot (30-meter) total length threshold.
Routine Maintenance & Servicing
- 🛠 Environmental and Thermal MonitoringEnsure that safety instrumented system (SIS) enclosures maintain clean air filters and stable internal ambient temperatures to prevent overheating of sensitive backplane components.
- 🔌 Connector & Terminal InspectionPeriodically check module locking mechanisms, backplane connectors, and power terminal screws during scheduled plant maintenance outages to prevent vibration-induced loosening.
Troubleshooting & Common Issues
- ⚠️ I/O Bus Communication FaultsIf the main controller loses communication with modules hosted in the Model 8110 chassis, check cable continuity, verify RS-485 bus termination, and ensure total cable run limits are respected.
- ⚠️ Power Supply DegradationIf a chassis power fault indicator illuminates, verify input supply stability and check that redundant power sharing is operating correctly across both power modules.
Safety Precautions
- 🔐 Qualified Personnel OnlyInstallation, rack mounting, cabling, and hardware maintenance must be executed exclusively by certified safety system technicians trained in Triconex TMR architecture.
- ⚠️ Live System RestrictionsAlways follow plant safety protocols, review system override statuses, and verify safety loop implications before performing maintenance or servicing chassis backplanes on active processes.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary function of the Model 8110 chassis?A: It functions as an expansion enclosure that increases the I/O capacity of a Tricon safety system, allowing additional input/output modules to be added to the TMR controller architecture.
- ❓ Q2: How does the Model 8110 communicate with the main controller chassis?A: It communicates via triplicated RS-485 I/O bus cables, which link the main chassis expansion ports directly to the expansion chassis backplane.
