Description
Product Overview
The Tyco CEL C1627 Motherboard PCB is a main circuit board used in compatible fire alarm control panel equipment. The C1627 platform is associated with the CEL/Tyco T1216 and T1232 fire alarm panel configurations, supporting 16-zone and 32-zone system variants, respectively.
The motherboard provides the main electronic platform for the fire panel, connecting system circuitry and supporting alarm monitoring and control functions. The exact configuration depends on the board issue and panel variant, so the original part number and revision should be checked before replacement.
This PCB is suitable for fire detection system maintenance, control panel repair, and spare-parts sourcing. Installation and commissioning should be performed by qualified fire alarm technicians in accordance with the system documentation and applicable safety requirements.

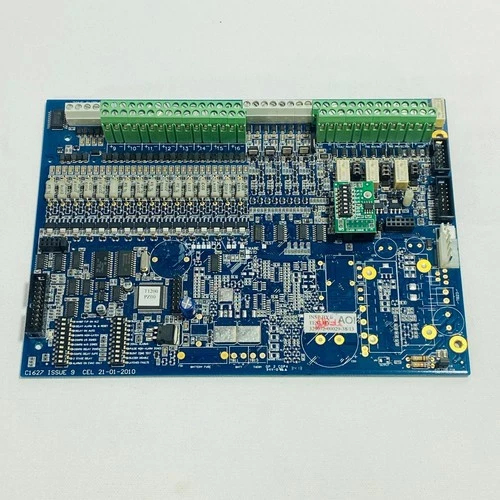

Tyco CEL C1627
Key Features
- Brand: Tyco / CEL
- Model: C1627
- Product Type: Fire Alarm Panel Motherboard PCB
- Application: Fire detection and alarm control systems
- Associated Equipment: Compatible CEL/Tyco T1216 and T1232 panel variants
- System Role: Main panel circuit board
- Board Revisions: Multiple issues exist; verify the revision on the actual board
- Maintenance Use: Replacement and repair of compatible fire alarm panels
- Compatibility: Confirm the panel model, motherboard revision, and power-supply configuration before installation
Datasheet
| Parameter | Details |
|---|---|
| Brand | Tyco / CEL |
| Model | C1627 |
| Series | CEL C16 Fire Alarm System |
| Product Name | Fire Alarm Panel Motherboard PCB |
| Associated Panel Models | T1216 and T1232 variants |
| Manufacturer Part Reference | 509.023.003 is listed for the C1627 16-zone panel motherboard |
| Place of Manufacture / Origin | Not independently confirmed |
| Product Status | Used; confirm the condition and board issue of the specific item |
| Dimensions | Not confirmed |
| Weight | Approximately 310 g reported for a related C1627 board listing; verify the actual item |
| Country of Origin | Not confirmed for this specific unit |
| Power Requirements | Depends on the motherboard and panel configuration; verify the exact variant |
| Discontinued | Not confirmed |
Frequently Asked Questions
Q1: What is the Tyco CEL C1627?
A: It is a motherboard PCB for compatible CEL/Tyco fire alarm control panel equipment.
Q2: What does the motherboard do?
A: It provides the main electronic platform for the panel and supports its fire detection and alarm control functions.
Q3: Which fire alarm panels use the C1627 motherboard?
A: Manufacturer documentation identifies C1627 motherboard designs for T1216 16-zone and T1232 32-zone panel variants. Confirm the specific panel configuration before ordering.
Q4: Are all C1627 motherboard revisions interchangeable?
A: Not necessarily. Different board issues and panel configurations exist. Match the revision and part reference to the installed board.
Q5: Does the motherboard include a power supply?
A: That depends on the exact board variant. Some C1627 configurations are listed with a power supply, while others are specified without one.
Q6: What should I check before purchasing?
A: Verify the C1627 model, board issue, manufacturer part reference, connector arrangement, power-supply configuration, and host panel model.
Q7: Can I install the board while the fire alarm panel is powered?
A: No. Follow the manufacturer’s isolation and replacement procedures. Fire protection systems should be placed into an appropriate maintenance state by qualified personnel.
Q8: Is this board suitable for any Tyco fire alarm panel?
A: No. It is intended for compatible C1627-based equipment. Compatibility with other Tyco product families must be verified separately.
Related Products and Equipment Categories
The following models and components are related to the CEL/Tyco fire alarm system family. They are sourcing references, not guaranteed direct replacements for the C1627 motherboard.
- Tyco CEL C1626 — 4-Zone Fire Panel Motherboard
- Tyco CEL C1627 — 16-Zone Fire Panel Motherboard
- Tyco T1216 — 16-Zone Fire Alarm Panel
- Tyco T1232 — 32-Zone Fire Alarm Panel
- Tyco T1204 — 4-Zone Fire Alarm Panel
- Tyco C1630 — Output Expansion Interface
- Tyco C1631 — Repeater Interface
- Tyco C1632 — 16-Zone Panel Expansion Board
- Tyco C1628 — 16-Zone Panel Display
- Tyco C1629 — 32-Zone Panel Display
- Tyco 509.023.004 — C1627 Motherboard Variant Without Power Supply
- Tyco 509.023.008 — T1216-C Motherboard
- Tyco 509.023.009 — T1232-C Motherboard
- Tyco PS136 — 5.0 A Fire Panel Power Supply
- Tyco PS40 — 24 V DC Power Supply
