Description

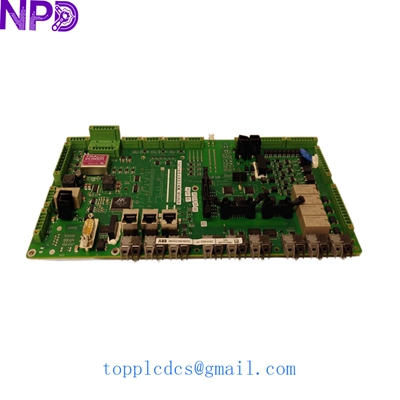

- Model: ABB UCD224A103 (3BHE023681R0103 / 3BHE023682P201)
- Brand: ABB (Switzerland)
- Series: UNITROL 6000 / UNIGLYPH Excitation Systems
- Core Function: Control and interface module for large synchronous machine excitation systems.
- Condition: Brand New Surplus (Original Factory Package)
- Type: Power Electronics Control Module / Interface Board
- Key Specs: 24 V DC Control Power, Optical Fiber Communication interfaces
- Product Type: Controller Board / Pulse Transformer Interface
- Control Voltage: 24 V DC (Internal Bus)
- Communication Interface: Fiber Optic (for gate pulse and feedback signals)
- Application: Used in static excitation systems for power plant generators.
- Mounting: Rack-mount or sub-assembly integration within the UNITROL cabinet.
- Ambient Temperature: -10°C to +70°C (Storage), 0°C to +55°C (Operation)
- Compatibility: Optimized for AC800M based excitation control logic.
- Dimensions: Standard ABB power electronics board footprint (approx. 233 mm x 160 mm).
ABB UCD224A103 3BHE023681R0103 3BHE023682P201
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation: 20 minutes)
⚠️ High Voltage Warning:
- The UCD224A103 is typically part of a High-Voltage Excitation system. Ensure the generator is at a standstill and the excitation transformer is physically isolated.
- Discharge all DC link capacitors before opening the cabinet.
- Verify the specific “P” and “R” numbers match your system documentation (3BHE023681R0103 vs. your existing part).
Tools Needed:
- Fiber optic cleaning kit (critical for communication reliability).
- Torque screwdriver (for electrical terminal connections).
- ESD-safe container for the old module.
Phase 2: Removal & Static Safety
- Disconnect Fiber Optics: Carefully unplug the optical cables. Label them 1-1 to ensure they are not swapped. Never bend fiber optic cables at a sharp angle.
- Power Down: Ensure the 24 V DC auxiliary power is switched off.
- Unfasten: Remove the M4 retaining screws.
- ESD Handling: Once the module is pulled from the rack, place it immediately in a shielding bag. In my experience, even “dead” boards should be handled carefully to preserve any diagnostic data for the repair team.
Phase 3: Configuration & Commissioning
- Fiber Inspection: Clean the fiber ends before inserting them into the new 3BHE023681R0103. A speck of dust can cause intermittent communication “Pulse Faults.”
- Address/Jumper Matching: Compare the hardware jumpers on the new board with the old one. These often set the specific board ID within the converter group.
- Firmware Verification:
- Note: These boards often contain a local FPGA or microcontroller. If your UNITROL system is running an older software version, the new board may require a firmware downgrade or the system may need an update.
- Power-Up Test: Turn on the control power. Observe the LED heartbeat. If the “Error” LED is red, check the fiber optic signal strength via the UNITROL local control panel.
ABB UCD224A103 3BHE023681R0103 3BHE023682P201
Customer Cases & Industry Applications
Case 1: Hydropower Station Excitation Failure
Situation: A large hydropower station in Southwest China experienced a sudden loss of excitation on a 200MW generator. Diagnostics pointed to a failure in the UCD224A103 converter control board.
Task: Every hour the generator was offline cost the utility roughly $8,000 in lost revenue. The manufacturer quoted a 14-week lead time due to the age of the system components.
Action: We supplied a New Surplus 3BHE023681R0103 module within 24 hours. Our engineer provided remote support to guide the plant technicians through the fiber optic reconnection process.
Result: The generator was successfully synchronized back to the grid within 48 hours of the initial fault. The plant manager was impressed by the fact that our “New Surplus” unit was factory-sealed, ensuring it hadn’t been exposed to humidity or dust in a workshop environment.
Case 2: Preventive Maintenance for a Gas Turbine Plant
Situation: During a major overhaul, a gas turbine plant noticed “intermittent fiber loss” alarms in their UNITROL 6000 cabinet.
Task: Rather than waiting for a total failure, the plant decided to replace the aging UCD224A103 boards as part of a life-extension project.
Action: We provided a matched pair of boards from the same production batch. This is critical for redundant excitation systems to ensure identical timing characteristics.
Result: The plant reported a complete cessation of the communication alarms. By choosing New Surplus instead of “Refurbished,” they avoided the risk of using components with aged electrolytic capacitors.
ABB UCD224A103 3BHE023681R0103 3BHE023682P201
Frequently Asked Questions (FAQ)
Q: My current board has the number 3BHE023682P201. Is this compatible? A: Yes. The 3BHE023682P201 is the printed circuit board (PCB) number, while the 3BHE023681R0103 is the complete assembly number. They refer to the same functional hardware unit in most UNITROL 6000 applications.
Q: Do I need to calibrate the board after installation? A: Usually, no. The UCD224A103 is a digital interface module. The calibration values (gain, offset) are stored in the main AC800M controller or the system software. However, you should perform a “Pulse Test” through the HMI to ensure the gate signals are reaching the thyristors.
Q: Can I use a generic fiber optic cable? A: We strongly advise against it. ABB excitation systems use specific connectors and fiber types. Using an incompatible cable can lead to signal attenuation and “Loss of Control” trips.
Q: Why choose New Surplus over a factory repair? A: Lead time. Factory repairs can take 3-6 months. Our New Surplus stock is ready for immediate dispatch, which is vital for emergency shutdown scenarios.
Current Inventory Specials
We specialize in high-end power electronics and DCS spares:
- ABB UCD224A103 (Current Request)
- ABB PM866K01 (Controller Kit)
- ABB DI810 3BSE008508R1
- GE IS200STAH1A (Mark VI)
- GE DS200TCQCG1B
- Bently Nevada 3500/22M
- Honeywell CC-PAIH01
- ICS Triplex T9110
Visit www.newplcdcs.com to view our full inventory of over 10,000 industrial parts.
