Description

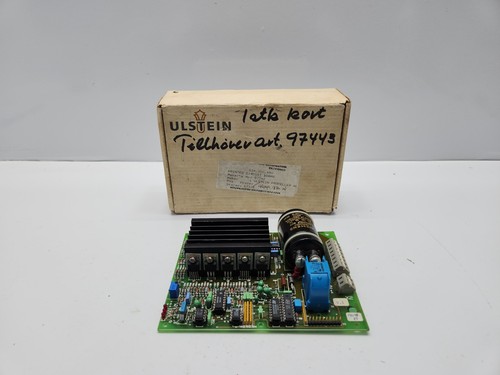

The Ulstein Marine DC0033A is a specialized stepper motor driver PCB card. It is designed for high-precision control of electromechanical actuators in maritime propulsion and steering systems. This module is essential for applications requiring exact positional accuracy, such as adjusting the pitch of propeller blades, managing valve positions, or synchronizing navigational instrument indicators.
Technical Parameters
- Model: DC0033A
- Component Type: Stepper Motor Controller / Driver PCB
- System Compatibility: Ulstein (Rolls-Royce Marine) Propulsion and Steering Systems
- Signal Interface: Logic-level input (step/direction) to high-power motor output
- Origin: Norway
Application Areas
- Propeller Pitch Control: Precisely adjusting the angle of controllable pitch propellers (CPP).
- Remote Instrumentation: Driving analog indicators and gauges on bridge consoles.
- Valve Actuation: Controlling the precise flow rate in fuel and cooling fluid lines.
- Navigation Equipment: Synchronizing mechanical azimuth/heading displays.
Product Usage Instructions
-
- Safety & Handling: The DC0033A contains sensitive power transistors and control logic. Always use an ESD-safe workstation and grounded wrist strap when handling the card to prevent static damage.
- Installation: Before inserting the PCB into the rack, ensure the propulsion or steering system is powered down and the emergency stop is engaged. Confirm the edge connector pins are free of oxidation.
- Configuration: If the card features onboard potentiometers or DIP switches, ensure they are set to match the specific current and micro-stepping requirements of the attached motor.
- Integration: Ensure the motor cable shielding is properly terminated at the card’s designated ground lug to prevent electrical noise from causing “missing steps” or erratic movement.
Product Description
The DC0033A acts as the intermediary between the control system’s low-voltage commands and the high-current demands of a stepper motor. It translates digital pulse trains into controlled current sequences for the motor coils, allowing for smooth, incremental motion. Its design is hardened for the maritime environment, utilizing robust power stages to manage the thermal loads generated during continuous operation.
Protection & Environmental Parameters
- Enclosure: Designed for integration within marine-rated NEMA/IP-protected control consoles.
- Corrosion Resistance: The board is treated with a specialized industrial conformal coating to resist the effects of condensation and salt-laden air found in shipboard environments.
- Operating Temperature: 0°C to +55°C.
- Humidity: 10% to 90% relative humidity, non-condensing.
Frequently Asked Questions
- How do I troubleshoot “Missing Steps” or erratic motor behavior? This often indicates a mismatch between the driver current setting and the motor’s specifications, or electrical interference on the step/direction signal lines. Verify that shielded cables are properly grounded.
- Is this card field-repairable? Due to the precision timing components and the potential for damage to the logic gates, field repair of the PCB is not recommended. Replacement with a tested spare is the standard procedure for critical propulsion systems.
- Can I replace this card while the system is under load? No. Attempting to disconnect or connect the motor leads while the driver is powered can cause voltage spikes that will destroy the card’s power transistors.
- What are the common indicators of a driver failure? Lack of motor torque, the motor “buzzing” without moving, or a burnt odor near the power components are clear signs of component failure.
