Description

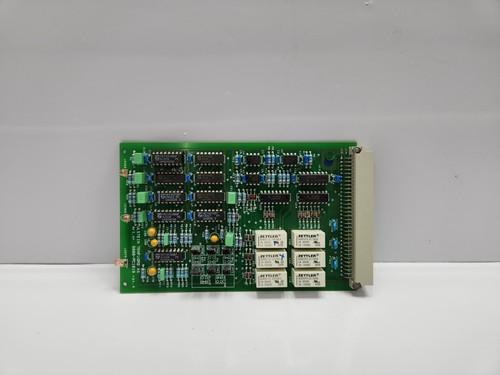

The ULSTEIN TENFJORD 5880-PC1018 is a specialized Printed Circuit Board (PCB) card manufactured by Ulstein Tenfjord AS (often associated with Rolls-Royce marine automation systems). This module, frequently identified with the marking “5801-CS-SEL-O1,” is a critical component used in marine steering and propulsion control systems. It is engineered to facilitate precise signal processing within demanding maritime environments.
📋 Technical Specifications
🔹 Model: 5880-PC1018 🔹 Revision: A (Commonly found as Rev: A) 🔹 Reference Number: 5801-CS-SEL-O1 🔹 Weight: Approximately 130g – 140g 🔹 Origin: Designed/Manufactured for Ulstein Tenfjord AS (Norway/Global Marine Standards)
🚀 Application Fields
⚡ Marine Steering Gear Control Systems ⚓ Propulsion Automation and Monitoring 🏭 Shipboard Integrated Control Systems 🚢 Maritime Hydraulic/Electrical Interface Units
🛠️ Product Instructions
The 5880-PC1018 is a dedicated PCB card designed for rack-mounted automation cabinets. When installing, ensure the system power is completely isolated. Align the card carefully with the corresponding slot on the backplane or interface module to prevent pin damage. Due to the sensitive nature of marine electronic components, handle only by the edges and use anti-static protection.
⚙️ Communication Configuration Steps
⚙️ Address Mapping: Verify the hardware jumpers or switch settings on the PCB surface against your vessel’s technical manual. These settings determine the card’s station address in the bus network. ⚙️ Interface Check: Ensure the interface cable (often 5801-CS-SEL-O1 related cabling) is correctly seated and that the locking mechanism is engaged. ⚙️ Parameter Synchronization: This module typically relies on the central controller for configuration; ensure the main PLC/Controller firmware is compatible with the board revision.
🔋 Power-up Debugging Process
✅ Step 1: Double-check all terminal wiring for loose connections. ✅ Step 2: Power on the control rack and observe the status LEDs on the front edge of the PCB. ✅ Step 3: Use a multimeter to verify that the board is receiving the correct regulated voltage from the power supply bus. ✅ Step 4: Check the system control panel for “Link OK” or “Ready” status signals related to the steering/propulsion node.
📋 First-time Operation Checklist
✔️ Confirm the board part number and revision match the replaced unit exactly. ✔️ Inspect the PCB for any physical damage or corrosion, particularly if it is a “used/surplus” unit. ✔️ Verify that the backplane connector is free of dust or oxidation. ✔️ Perform a functional test of the controlled actuator (e.g., steering rudder movement) in manual mode before switching to auto-pilot.
❓ Frequently Asked Questions (Q&A)
❓ Q: Is this board “hot-swappable”? 💡 A: No. It is strongly recommended to shut down the power to the specific I/O rack before removing or inserting the 5880-PC1018 to avoid electrical surges or data bus corruption.
❓ Q: What does the “KORT 5801-CS-SEL-O1” marking mean? 💡 A: “Kort” is the Norwegian term for “Card.” The 5801-CS-SEL-O1 is a sub-reference or functional identifier for the specific circuitry logic on this board.
❓ Q: Where can I find replacement parts for this legacy system? 💡 A: Because this is a specialized marine legacy component, it is commonly sourced through specialized marine automation surplus suppliers or refurbished equipment providers. Ensure you verify the revision (e.g., Rev A) before procurement.
