Description
Product Parameters
- Model Number: 573-935-202C
- Type: High-Performance Industrial Vibration Meter / Processing Module
- Measurement Ranges: * Acceleration: 0.01 g to 10 g (Peak)
- Velocity: 0.01 mm/s to 100 mm/s (Peak)
- Displacement: 0.001 mm to 10 mm (Peak)
- Frequency Range: 5 Hz to 10 kHz
- Resolution: 0.001 g / 0.01 mm/s / 0.001 mm
- Accuracy: ±5% Full Scale
- Operating Temperature: -20°C to +70°C (-4°F to 158°F)
- Humidity: 5% to 95% Non-condensing

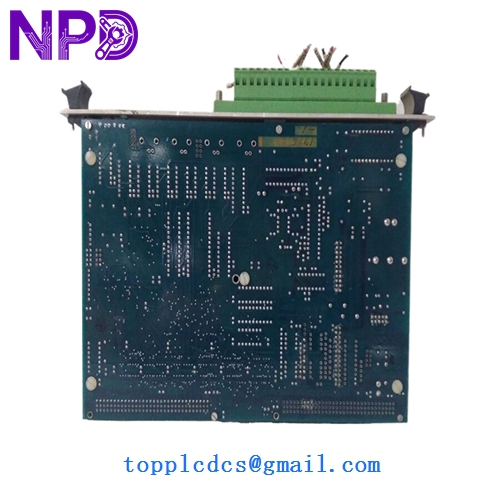

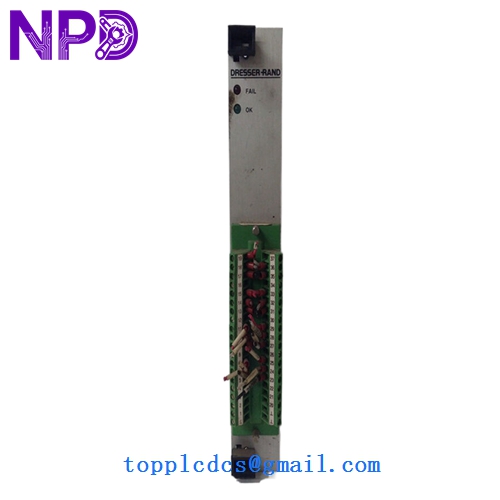

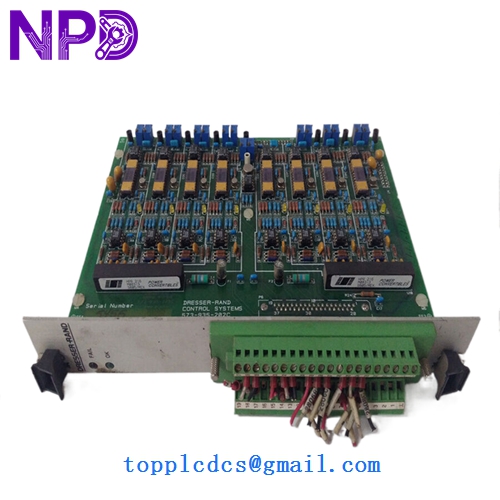

Product Description The Vibro-Meter 573-935-202C is a specialized vibration monitoring and processing module designed for rigorous industrial environments. Unlike standard handheld meters, this module is typically integrated into larger machinery protection systems or dedicated monitoring racks. It provides real-time, high-resolution data on the mechanical health of rotating equipment by analyzing acceleration, velocity, and displacement signals. The “202C” revision is engineered for high reliability in “dirty” electrical environments, featuring robust noise rejection and diagnostic self-checks to ensure the integrity of the safety-critical vibration data it provides to the DCS or PLC.
Application Areas This module is primarily utilized in heavy industry sectors including Oil & Gas, Chemical Processing, and Power Generation. It is specifically applied to the monitoring of:
- Large centrifugal and reciprocating compressors.
- Industrial steam and gas turbines.
- High-capacity water and process pumps.
- Critical cooling fans and large motor bearings.
Product Specifications
- Weight: Approximately 0.85 kg
- Country of Origin: Switzerland / China
- Enclosure/Form Factor: Rack-mount or DIN-rail compatible module (depending on housing)
- Storage Temperature: -40°C to +85°C
Operational Precautions
- Sensor Calibration: Ensure the connected vibration transducers (accelerometers or velocity sensors) are calibrated and their sensitivity (mV/g) is correctly matched to the module’s input settings.
- Signal Interference: Use high-quality shielded twisted-pair cables for sensor connections. Keep vibration signal cables separated from high-voltage power lines to prevent electromagnetic interference (EMI) from triggering false alarms.
- Mounting Integrity: For the most accurate displacement and velocity readings, ensure the module is securely mounted in a low-vibration area of the control cabinet to avoid “self-noise” in the measurements.
- Diagnostics: Regularly check the module’s internal status LEDs or diagnostic registers. If the “Status” or “Fault” LED indicates an error, verify the sensor loop resistance and power supply stability immediately.
Recommended Similar Product Models
| Model Number | Category | Key Feature |
|---|---|---|
| 573-935-101B | Vibration Module | Previous generation / lower range |
| MPC4 (200-560) | Protection Card | 4-Channel VM600 System Card |
| VM600 CMC16 | Condition Monitoring | High-density 16-channel card |
| APSI 573-935 | Power Supply | Matching Power Module for 573 series |
| TQ402 | Transducer | Compatible Proximity Sensor |
