Description

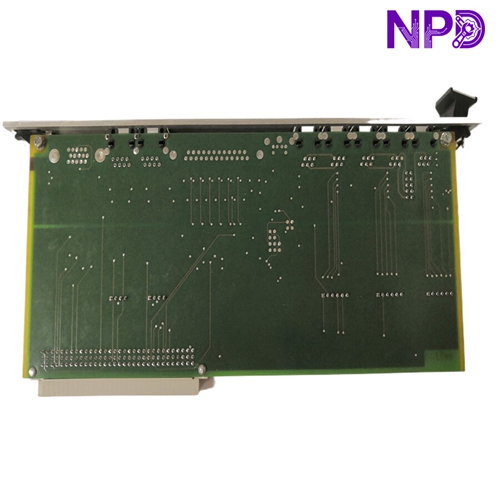

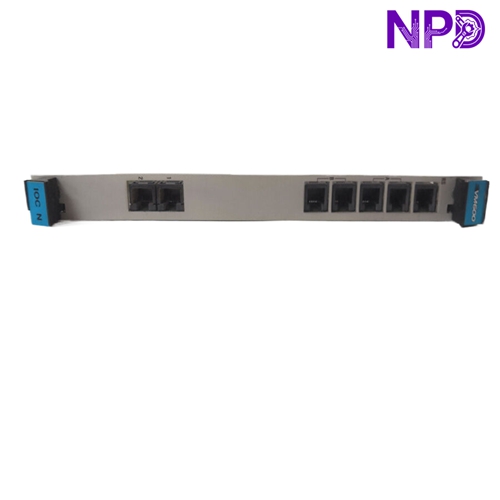

The Vibro-Meter (Meggit) IOCN 200-566-000-112 is a high-precision Input/Output Conditioner module designed for industrial vibration monitoring systems. This unit is engineered to process signals from various sensors—such as accelerometers and proximity probes—converting raw electrical signals into standard outputs for machinery protection and condition monitoring. It plays a vital role in ensuring data accuracy for rotating machinery analysis, such as turbines, compressors, and pumps, by filtering and conditioning signals before they are transmitted to protection systems or data acquisition platforms.
Key Technical Specifications
- Module Function: I/O conditioner for vibration and displacement signal processing
- Input Signal Support: Compatible with piezoelectric accelerometers, velocity sensors, and proximity transducers
- Signal Processing: Integrated signal filtering, amplification, and linearization
- Communication Interface: Dedicated output for connection to monitoring racks or PLC/DCS systems
- Gain Settings: Field-configurable gain to match specific sensor sensitivity
- Dynamic Range: High dynamic range to accurately capture low-level vibration in high-noise environments
- Output Type: Standard industrial output formats (e.g., current or voltage proportional to vibration levels)
- Status Monitoring: Features built-in system “OK” circuitry to detect sensor or cable faults
- Operating Temperature: Designed for stable performance in standard industrial control room or skid environments
- Mounting: Modular design compatible with Vibro-Meter rack-based monitoring architectures
Related Vibro-Meter Series Model Recommendations
For comprehensive vibration monitoring and machinery protection, the following modules and components are frequently used alongside the IOCN series:
- VM600 ABE04x: The standard rack system for housing IOCN and other signal conditioning modules.
- CPMU: Central Processing and Monitoring Unit for advanced data analysis.
- MPC4: Machinery Protection Card for relay-based machine trips.
- IOC4T: Input/Output Card used in conjunction with MPC4 cards.
- CA 202: Piezoelectric accelerometer for high-frequency vibration measurement.
- TQ 402: Proximity probe for shaft vibration and position monitoring.
- IQS 450: Signal conditioner specifically for TQ proximity probe systems.
- XMV16: Relay module for logic-based machinery shutdown.
- RLC16: 16-channel relay output module for alarm management.
- VM600 CPUM: Processor and communication module for Ethernet-based monitoring.
