Description

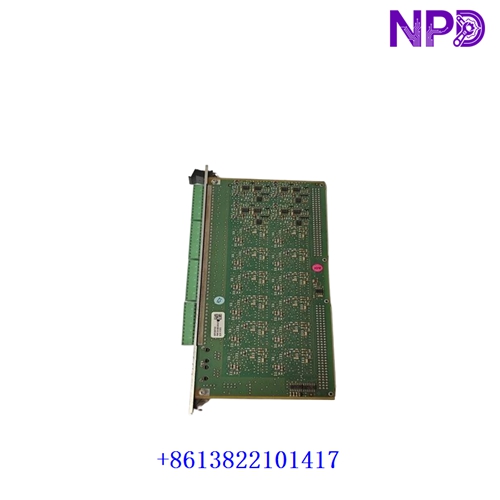

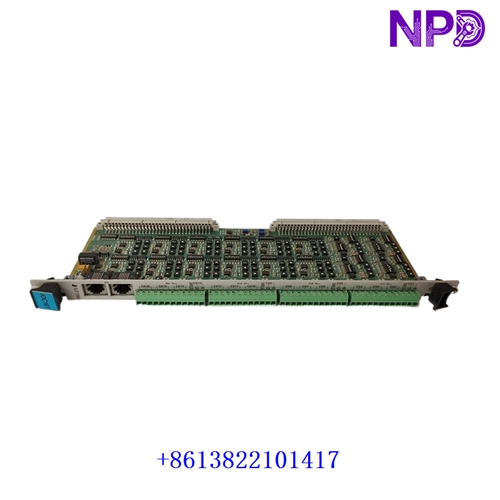

The Vibro-Meter (Meggitt) VM600 IOC16T (associated part numbers: 200-565-000-013 and 200-565-101-013) is a dedicated Input/Output Card (IOC) designed for the VM600 rack-based machinery protection and condition monitoring system. It functions as the rear-rack interface module that pairs directly with matching condition monitoring cards (such as the CMC16) to terminate field sensor wiring and condition dynamic signals.
| Parameter | Specification |
| Brand / Manufacturer | Vibro-Meter / Meggitt |
| Model / Series | VM600 Series Machinery Protection & Condition Monitoring System |
| Module Part Numbers | 200-565-000-013 / 200-565-101-013 |
| Product Type | Input/Output Interface Card (IOC16T) |
| System Compatibility | VM600 19-inch rack frames (ABE series rear slots, working alongside CMC16 cards) |
| Channel Capacity | Supports multi-channel sensor inputs (accelerometers, velocity sensors, proximity probes) |
| Backplane Integration | Interfaces with rack backplane internal “Raw Bus” and “Tacho Bus” lines |
| Protection Features | Built-in electromagnetic interference (EMI) and signal surge protection |
| Operating Temperature | 0°C to +65°C (32°F to 149°F) |
| Product Status | Industrial Machinery Protection & Condition Monitoring Spare Part |
First-Run Inspection Checklist
- ☑ Physical & Connector Integrity
Inspect the rear connector pins, terminal blocks, housing structure, and electronic components for any shipping damage, bent pins, or corrosion.
- ☑ Rear Rack Slot Alignment
Ensure the IOC16T card is installed in the correct rear slot of the VM600 ABE rack—directly behind its associated front-side condition monitoring card (CMC16).
- ☑ Wiring & Shield Grounding Verification
Verify that field signal cables coming from transducers are cleanly landed to the terminal strip and that cable shields are properly grounded to mitigate noise.
Routine Maintenance & Servicing
- 🛠 Terminal Block & Connection Security
Periodically inspect screw terminal blocks and plug-in connectors during scheduled plant outages to ensure thermal cycling or vibration has not loosened wire terminations.
- 🔌 Signal Loop & Bus Continuity Checks
Confirm that backplane bus connections and local sensor loops remain stable without intermittent dropouts or ground loops affecting measurement integrity.
Troubleshooting & Common Issues
- ⚠️ Channel Signal Loss or High Noise Floor
If individual vibration or speed channels display erratic noise, signal clipping, or flatlines, inspect field wiring continuity, check terminal seating, and verify that sensor power supplies are intact.
- ⚠️ Backplane Communication or Bus Faults
If the paired monitoring card fails to register input data from the IOC16T, check that the rear interface module is fully pushed home into the rack backplane connectors.
Safety Precautions
- 🔐 Qualified Personnel Only
Installation, wiring termination, and card replacement must be executed exclusively by certified vibration analysis and instrumentation technicians.
- ⚠️ Live Rack Handling Guidelines
Although VM600 modular hardware supports hot-swapping in specific configurations, always consult plant safety procedures and verify safety loop statuses before extracting or inserting interface cards.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary role of the IOC16T card in a VM600 system?
A: It serves as a rear input/output interface card that provides physical terminal blocks for field transducers, routing raw dynamic signals securely into the VM600 rack architecture.
- ❓ Q2: Does the IOC16T require external wiring for all signals?
A: Not necessarily. While it features onboard terminal strips for direct transducer wiring, it can also leverage the VM600 rack’s internal “Raw Bus” and “Tacho Bus” lines to share signals across modules without extra external jumper wiring.
