Description

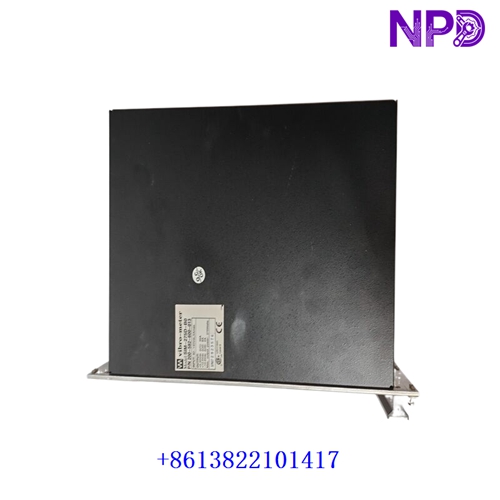

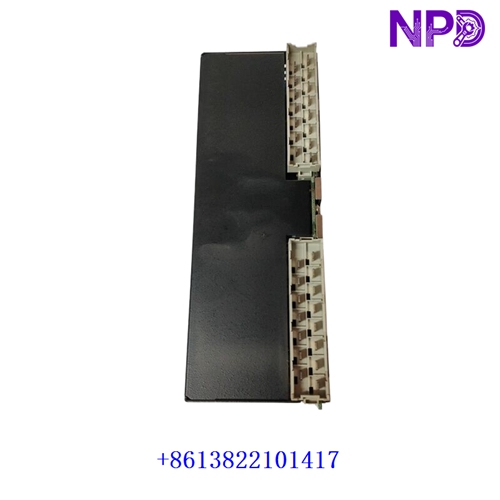

The Vibro-Meter (Meggitt) VM600 RPS6U (Part Number: 200-582-600-013) is a high-performance Rack Power Supply Module engineered specifically for the VM600 rack-based machinery protection and condition monitoring system. It converts incoming AC or DC plant power into regulated, low-voltage DC rails required to power the rack’s backplane, processing cards, protection modules, and associated field transducers.
| Parameter | Specification |
| Brand / Manufacturer | Vibro-Meter / Meggitt |
| Model / Series | VM600 Series Machinery Protection & Condition Monitoring System |
| Part Number | 200-582-600-013 |
| Product Type | Rack Power Supply (RPS6U) Module |
| System Compatibility | VM600 19-inch rack frames (ANE / ABE series chassis) |
| Input Power Range | Standard industrial multi-range AC/DC input compatibility (refer to module nameplate for specific voltage limits) |
| Output Rails | Regulated DC voltage rails distributed via the rack backplane |
| Redundancy Support | Designed to support dual redundant power supply configurations (housing two RPS6U modules per rack for high availability) |
| Operating Temperature | 0°C to +65°C (32°F to 149°F) |
| Product Status | Industrial Machinery Protection & Condition Monitoring Spare Part |
First-Run Inspection Checklist
- ☑ Physical & Chassis Integrity
Inspect the outer metallic housing, front-panel LED indicators, terminal block connectors, and rear backplane guide pins for transit damage, dents, or pin distortion.
- ☑ Rack Slot Positioning
Ensure that the RPS6U module is inserted into the dedicated power supply slots (typically on the left side of the VM600 rack) and fully pushed home to engage the backplane connectors.
- ☑ Input Voltage & Fusing Check
Verify that incoming power wiring matches the module’s rated input parameters and that external branch fusing or circuit breakers are correctly sized before energization.
Routine Maintenance & Servicing
- 🛠 Thermal & Ventilation Management
Ensure that control cabinet fans, air filters, and ventilation grilles around the VM600 rack remain clean and unobstructed to maintain optimal operating temperatures up to +65°C.
- 🔌 Terminal Tightness & Wiring Inspection
Periodically check input power terminal screws and wiring connections during scheduled maintenance outages to prevent high-resistance joints caused by vibration or thermal cycling.
Troubleshooting & Common Issues
- ⚠️ Power Failure / Front LEDs Dark
If the module’s status indicators fail to illuminate, check external line fuses, verify incoming voltage levels at the input terminals, and ensure the module is fully seated in the rack backplane.
- ⚠️ Redundant Load-Sharing Faults
In dual-power configurations, if a power supply fault alarm triggers, verify that both units are receiving stable input power and that one module has not dropped offline due to an internal protection trip.
Safety Precautions
- 🔐 Qualified Personnel Only
Installation, wiring, and hardware maintenance must be executed exclusively by certified electrical technicians and instrumentation specialists trained in industrial power distribution.
- ⚠️ Hazardous Voltage Isolation
Always isolate, lock out, and tag out primary input power before touching input terminal blocks, wiring harnesses, or inserting/extracting the power supply module from the live rack.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary function of the RPS6U module?
A: It acts as the core power conversion unit for the VM600 rack, supplying clean, regulated DC power to all installed processing cards, protection modules, and connected field sensors.
- ❓ Q2: Can multiple RPS6U modules be installed in a single VM600 rack?
A: Yes. The VM600 rack architecture supports dual redundant power supply configurations (using two RPS6U units) to ensure uninterrupted operation if one power source fails.
