Description

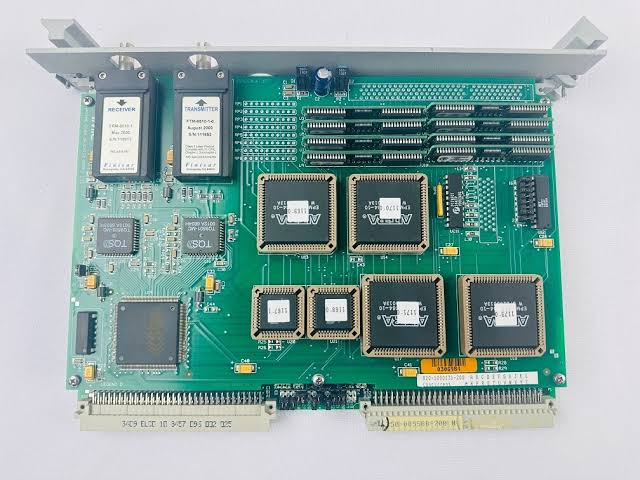

The VMIC VMIVME-5576 is a high-performance VMEbus Fiber Optic Reflective Memory Module designed for real-time data sharing between distributed computer systems. It provides deterministic, high-speed communication by automatically replicating data written into local memory across all connected nodes in a fiber-optic network.
The VMIVME-5576 is widely used in industrial automation, aerospace simulation, defense systems, test & measurement platforms, and complex control systems requiring low-latency data synchronization. It supports up to 256 network nodes and uses a fiber-optic daisy-chain ring architecture for reliable distributed data exchange.
This 6U VMEbus module includes onboard SRAM reflective memory, interrupt capability, error detection, and high-speed fiber communication. It allows multiple VME-based computers to share process data without continuous CPU involvement, making it suitable for mission-critical real-time applications.
VMIVME-5576
🔹 Product Parameters
| Parameter | Specification |
|---|---|
| Brand | VMIC / GE Fanuc |
| Model | VMIVME-5576 |
| Series | VMIC VMEbus Reflective Memory Series |
| Product Name | Fiber Optic Reflective Memory Module |
| Module Type | VMEbus Communication / Memory Sharing Module |
| Bus Interface | 6U VMEbus Interface |
| Memory Capacity | 256 KB / 512 KB / 1 MB SRAM Options |
| Communication Interface | Fiber Optic TAXI Network |
| Data Transfer Rate | Up to 6.2 MB/s without redundant transfer |
| Network Capacity | Up to 256 Nodes |
| Fiber Distance | Up to 2,000 m Between Nodes |
| Connector Type | ST Fiber Optic Connector |
| Power Supply | +5 VDC |
| Power Consumption | Approx. 5 A Maximum |
| Dimensions | Standard 6U VME Board |
| Weight | Approx. 0.45 kg |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Origin / Place of Manufacture | USA |
| Product Status | Pre-Owned / Tested / Refurbished Available |
| Discontinued Status | Legacy Product, Limited Availability |
🔹 Common Questions & Answers
Q: What is the main function of the VMIC VMIVME-5576?
A: It is a reflective memory communication module that allows multiple VME computers to share synchronized data through a high-speed fiber-optic network.
Q: Is VMIVME-5576 a PLC module?
A: No. It is a VMEbus computer communication and memory-sharing module mainly used in advanced control, simulation, and data acquisition systems.
Q: How does reflective memory work?
A: Data written into one node’s local memory is automatically broadcast and copied into corresponding memory locations of other nodes on the network.
Q: How many systems can be connected together?
A: The VMIVME-5576 supports communication between up to 256 independent nodes in a fiber-optic ring network.
Q: What are common failure symptoms?
A: Typical issues include fiber communication loss, network ring interruption, memory synchronization errors, VMEbus communication faults, or node initialization problems.
Q: What should be checked before replacement?
A: Verify the exact VMIVME-5576 part number, memory configuration, fiber connector type, VME chassis compatibility, node addressing, and network topology.
Q: Does VMIVME-5576 require software configuration?
A: Basic reflective memory operation requires minimal initialization. Interrupt functions require configuration of interrupt vectors and related registers.
