Description
Product Description

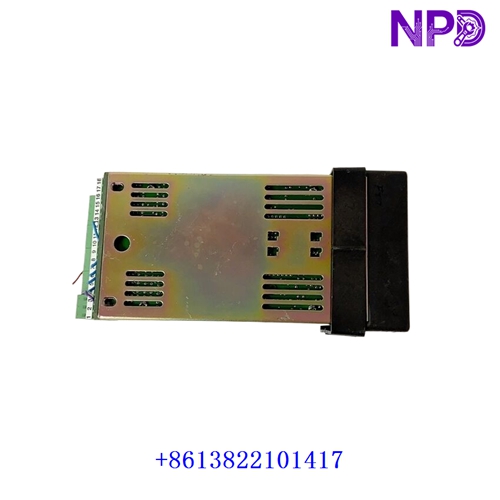

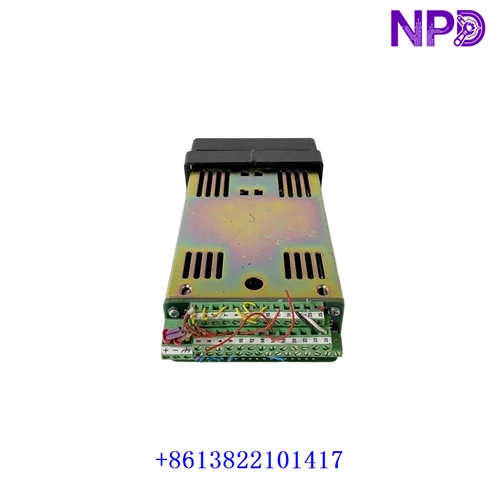

The Watlow Anafaze CLS208 is an eight-loop industrial temperature and process controller in the CLS200 series. It provides independent control-loop functions for multi-zone heating and process applications, including industrial ovens, plastics processing equipment, thermal treatment systems, and production machinery.
The CLS208 supports multiple sensor types, including thermocouples, RTDs, and configured linear voltage or current inputs. Its control functions include PID regulation, alarm monitoring, and serial communication for configuration and supervisory data exchange. Optional features depend on the specific order code and installed configuration. Before replacement, verify the complete model suffix, input types, output hardware, power supply, and communication settings.
CLS208
Product Parameters and Datasheet
Brand: Watlow Anafaze
Model: CLS208
Series: CLS200
Product Name: Eight-Loop Temperature and Process Controller
Product Type: Multi-Loop Digital Controller
Number of Control Loops: 8 independent control loops plus 1 pulse input loop
Input Types: Thermocouples, RTDs, and configured linear voltage/current signals
Thermocouple Types: Supported types depend on configuration; consult the applicable manual
RTD Inputs: Supported on CLS208; confirm sensor type and wiring
Control Algorithms: PID and other configured control functions
Programmable Profiles: Optional ramp-and-soak functionality
Communication Interfaces: EIA/TIA-232 and EIA/TIA-485 serial interfaces
Communication Protocols: Anafaze/AB protocol and Modbus RTU, depending on configuration
Input Sampling Rate: Approximately 3 samples per second at 60 Hz or 2.5 samples per second at 50 Hz
Power Requirements: Verify the exact controller label and model suffix; CLS200 documentation describes supply options that vary by model
Operating Temperature: Confirm the allowable ambient range in the applicable installation manual
Dimensions: Verify against the mechanical drawing for the specific enclosure
Weight: Not verified; confirm the supplied unit
Place of Manufacture: Verify from the product label
Country of Origin: Verify from the product label
Product Status: Legacy industrial controller; confirm availability and condition
Discontinued: Current lifecycle status should be confirmed with the manufacturer or supplier
Compatibility Note: The CLS208 is a legacy multi-loop controller, not a generic modern Modbus temperature controller. Confirm the sensor wiring, output type, supply rating, serial protocol, and optional features before installation.
Recommended Watlow Models
1. CLS204 — CLS200-series controller with four control loops.
2. CLS216 — CLS200-series controller with sixteen control loops.
3. MLS316 — Watlow Anafaze controller for multi-loop temperature applications.
4. MLS332 — Watlow Anafaze controller for higher-loop-count process applications.
5. CAS200 — Watlow Anafaze multi-loop control system for compatible applications.
6. CLS200 Series — Controller family offering multiple loop-count configurations.
7. SERIES 96 — Watlow temperature controller for individual process-control loops.
8. SERIES 97 — Watlow temperature controller for industrial heating applications.
9. SERIES F4 — Watlow temperature and process controller with programmable profiles.
10. EZ-ZONE PM — Watlow modular controller family for temperature and process control.
11. EZ-ZONE RM — Watlow modular control system for distributed thermal applications.
12. SERIES SD — Watlow controller family for temperature-control applications.
13. MICRODIN — Watlow temperature controller family for panel and DIN-rail installations.
14. POWER SERIES — Watlow power controller family for electric heating loads.
15. F4T — Watlow integrated temperature and process controller for newer system designs.
These are related Watlow controller families, not guaranteed direct replacements. Check loop count, input/output configuration, communications, mounting, and application requirements before selecting an alternative.
