Description
🔹 Product Description
The WATLOW ES23-3HV0-0000 Solid State Power Control is a high-performance solid state switching device designed for industrial heating and thermal process control applications. It provides reliable power switching for resistive heating loads by using semiconductor technology instead of mechanical contactors, improving switching speed and reducing wear during frequent operation.
The ES23 series is part of Watlow’s E-SAFE II hybrid solid state power switching family, designed for applications requiring dependable heater power management, temperature control integration, and long service life. It is commonly used with Watlow temperature controllers and industrial heating systems in manufacturing equipment, process machinery, and thermal processing applications.
This model is suitable for replacement, maintenance, and repair of existing Watlow power control installations. Before installation, verify voltage rating, phase configuration, load type, wiring arrangement, and controller compatibility.

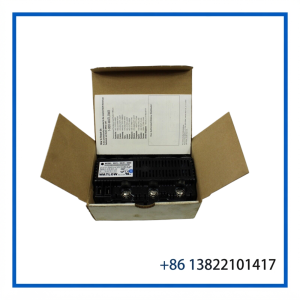

ES23-3HV0-0000
⚙️ Product Features
🔹 Watlow E-SAFE II solid state power switch.
🔹 Designed for industrial heater power control.
🔹 Hybrid solid state switching technology.
🔹 Three-phase power control configuration.
🔹 Zero-cross switching operation.
🔹 Suitable for resistive heating loads.
🔹 Reduced mechanical wear compared with contactors.
🔹 Compatible with industrial temperature control systems.
🔹 Panel mounting installation.
🔹 Designed for continuous industrial operation.
📋 Product Datasheet
| Parameter | Value |
|---|---|
| Brand | WATLOW |
| Model | ES23-3HV0-0000 |
| Series | E-SAFE II Solid State Power Control |
| Product Name | Solid State Power Control |
| Product Type | Electronic Power Switching Device |
| Application | Industrial Heater Control |
| Phase Configuration | Three Phase |
| Voltage Rating | High Voltage AC Class |
| Switching Method | Zero Cross Solid State Switching |
| Mounting Type | Panel Mount |
🔧 Application
The WATLOW ES23-3HV0-0000 is designed for applications requiring accurate and reliable control of electrical heating systems.
Typical applications include:
🔥 Industrial furnaces
🔥 Plastic processing equipment
🔥 Semiconductor manufacturing equipment
🔥 Packaging machinery
🔥 Thermal chambers
🔥 Heat treatment systems
🔥 Process heating systems
The device switches electrical power to heaters according to commands from a temperature controller or automation system, helping maintain stable thermal processes.
🔌 System Integration
The ES23-3HV0-0000 is normally integrated between the AC power source and heating load. It works together with temperature controllers, PLC systems, and process automation equipment.
Before installation, check:
🔹 Supply voltage
🔹 Load current requirements
🔹 Three-phase wiring configuration
🔹 Heater resistance characteristics
🔹 Controller output signal
🔹 Protective fuse selection
Proper configuration ensures safe operation and prevents damage to the semiconductor switching components.
❓ FAQ
Q1: What is the WATLOW ES23-3HV0-0000?
A1: It is a solid state power control device used for switching and controlling electrical heater loads in industrial applications.
Q2: Is ES23-3HV0-0000 a temperature controller?
A2: No. It is a power switching device that works together with temperature controllers or automation systems.
Q3: What type of loads can this unit control?
A3: It is mainly designed for industrial resistive heating loads.
Q4: What is the advantage of solid state power control?
A4: Solid state switching provides faster response and longer operating life compared with traditional mechanical contactors.
Q5: Where is the ES23-3HV0-0000 commonly used?
A5: It is commonly used in industrial heating equipment, process control systems, and thermal manufacturing applications.
Q6: Can it replace a mechanical contactor?
A6: It can replace suitable contactor applications when voltage, current, load type, and control requirements match.
Q7: What should be checked before replacement?
A7: Verify electrical ratings, phase configuration, wiring, heater specifications, and controller output compatibility.
Q8: Is this part suitable for PLC systems?
A8: Yes. It can be integrated with PLC-based temperature control systems through compatible control signals.
⭐ Recommended WATLOW Models
- ES23-3HV0-0000 – E-SAFE II Three Phase Solid State Power Control.
- ES21-1HV0-0000 – E-SAFE II Single Phase Power Switch.
- DIN-A-MITE C – Compact Solid State Power Controller.
- DIN-A-MITE D – DIN Rail Mount Power Controller.
- POWER SERIES Controller – SCR Power Controller for industrial heating.
- ASPYRE DT SCR Controller – Modern Watlow SCR power controller replacement family.
- QPAC SCR Power Controller – High-current industrial heating controller.
- EZ-ZONE PM Controller – Advanced temperature process controller.
- F4T Integrated Controller – Touchscreen process controller.
- PM PLUS Controller – Digital temperature and process controller.
🛠️ Installation Note
Always confirm the complete model number WATLOW ES23-3HV0-0000 before installation. Check voltage rating, phase wiring, heater specifications, control input requirements, and protection components to ensure reliable operation in the existing heating control system.
